Zenith 10-H-571 "Spinet" - morzh - 01-07-2017

I acquired this one about three years ago. Went to Massachusetts to pick it up.
Now it's number is up, I decided to give it the resto session.

It is in good shape, fairly clean. The grillcloth is missing but the cone is near mint. And I had ordered the herringbone Kenny recommended. From Kenny. Icon_smile

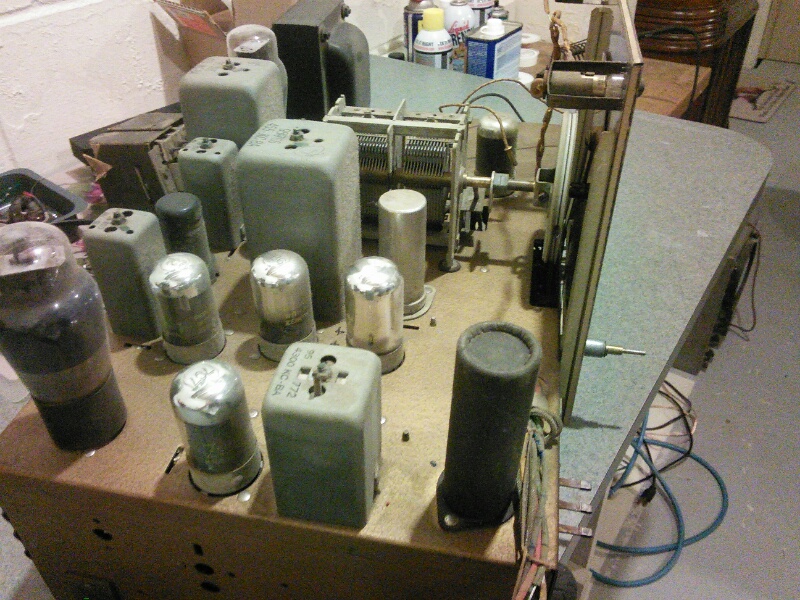

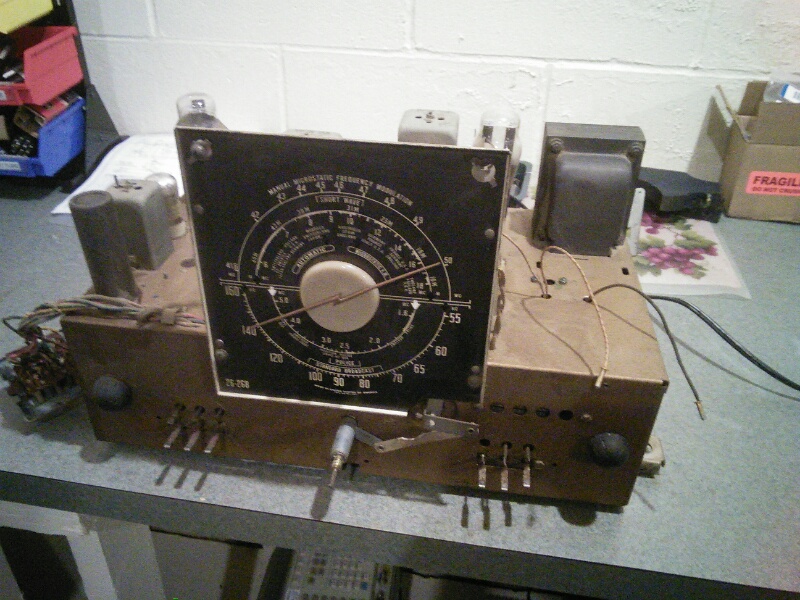

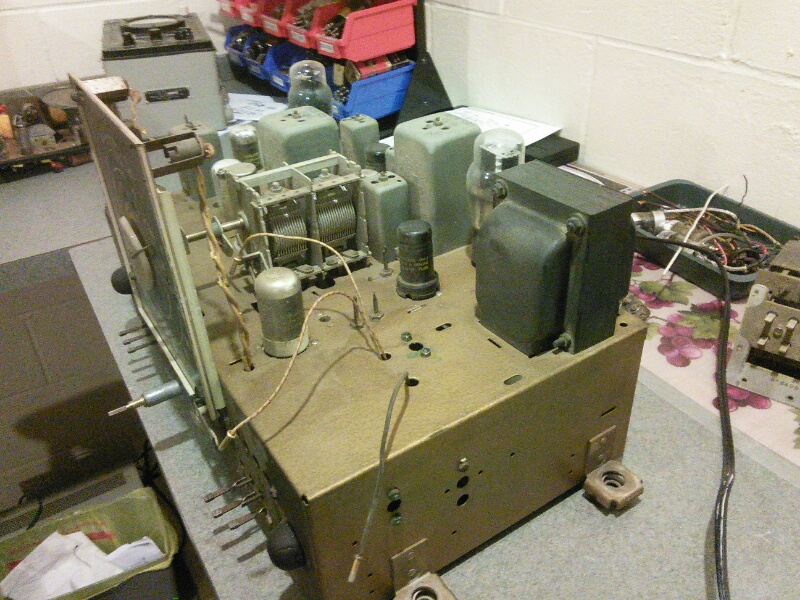

The chassis is on my bench now.








RE: Zenith 10-H-571 "Spinet" - sam - 01-07-2017

come on mike that's the cleanest work area I have ever seen Icon_lol
and it`s about time you get to that

RE: Zenith 10-H-571 "Spinet" - morzh - 01-07-2017

I have just vacuumed it after the mess Kirk has left here Icon_smile

One more feature: it has the old FM band. Not sure what to do with it. It's useless today. Building the converter is not my plan.

RE: Zenith 10-H-571 "Spinet" - KCMike - 01-07-2017

I have one of those Mike. I've Been walking by it for the last year. Look forward to your restoration and what you encounter.

RE: Zenith 10-H-571 "Spinet" - morzh - 01-07-2017

Mike

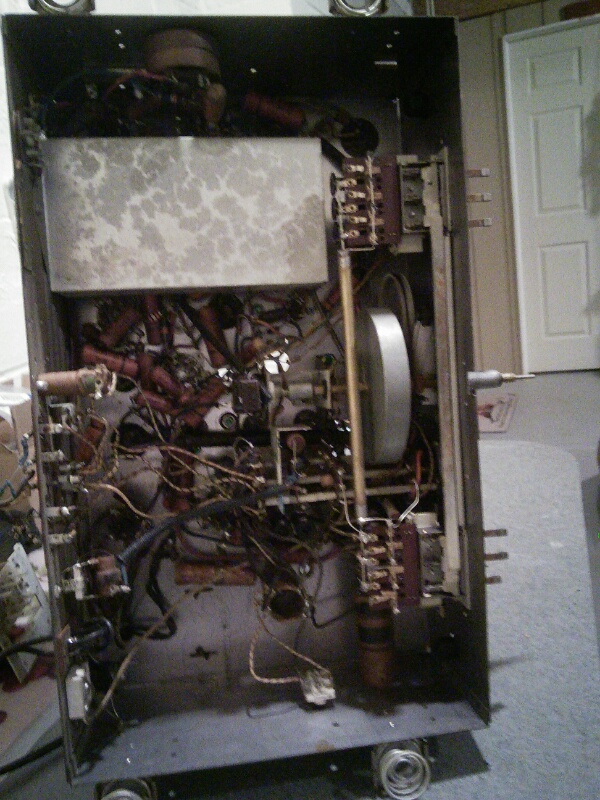

One thing I noticed, the external wiring uses the infamous rubber coated wire and it is ... molting Icon_smile
Other than that, console Zeniths, as most large chassis single-storeyed jobs, don't present many inconveniences while working on them. I hope the transformer is good, as other things are fairly simple. I had to rewind an RF choke on the 9S262 I did 4 years back, it wasn't too bad.

RE: Zenith 10-H-571 "Spinet" - Paul Philco322 - 01-07-2017

Those are pretty nice looking, some say too much with the spindles and cut out on front but I like em..

Good luck.

Paul

RE: Zenith 10-H-571 "Spinet" - morzh - 01-07-2017

Matter of taste, Paul, matter of taste. I like it. Else I wouldn't go all the way yo Plymouth Mass to get it.

RE: Zenith 10-H-571 "Spinet" - Jayce - 01-08-2017

The Zenith Spinet is one radio I would gladly still welcome into my collection if I could find one. I found a few four years back, but people here think they are worth a fortune. Now with the stupid maker's movement, I fear these neat radios might be prime targets for wine rack or i-pod dock conversion. Icon_sad

RE: Zenith 10-H-571 "Spinet" - morzh - 01-08-2017

There's one in OH right now for $695. Crazy price, bought mine for 200.

But it has the offer option and it's been there awhile and it won't sell any time soon at this price.

http://www.ebay.com/itm/1941-VINTAGE-Zenith-Console-SPINET-Vacuum-Tube-Radio-10H571-Unique-FM-band-/332085589226?hash=item4d51d7f4ea:g:sJEAAOSwImRYcZjg


And another one


http://www.ebay.com/itm/Antique-Zenith-Console-Radio-Model-10-H-571-Chasiss-10A3-Unique-1941-/182410658546?hash=item2a7885c2f2:g:JrgAAOSwtpZYSYNH

RE: Zenith 10-H-571 "Spinet" - Jayce - 01-08-2017

Wow, they are both high and I really don't have much money to play with since spending $180 on tires for the van yesterday. Also, no paypal.. Akron isn't far from me, but I have never heard of Sylvania, Ohio. Now I have to look that up!

RE: Zenith 10-H-571 "Spinet" - morzh - 01-08-2017

Overseas? Icon_smile They make good swords over there.

RE: Zenith 10-H-571 "Spinet" - morzh - 01-08-2017

Here's a question. Riders does not have the sch. The sch has external b!ocks and some pieces but no full sch or chassis drawing.
There is 10H571R but I am not sure it is the same, plus the chassis is different.

Does anyone have the docs for this one or a link I could follow?

RE: Zenith 10-H-571 "Spinet" - Kenneth F. Besso Jr. - 01-08-2017

did you Google it,,,because it comes up in Antigue radio forum ,,, article ---schematic

RE: Zenith 10-H-571 "Spinet" - Kenneth F. Besso Jr. - 01-08-2017

Antique electronic supply has it ,,,copy the display,,,,found under google,,,CHEERS

RE: Zenith 10-H-571 "Spinet" - Kenneth F. Besso Jr. - 01-08-2017

http://www.nostalgiaair.org/pagesbymodel/673/moo24673.pdf HOPE that HELPS---FULL SET -----CHEERS
