Label set for Philco 70 - Retroguy55 - 07-08-2020

Does anyone currently make a label set for the Philco Model 70?

I understand the ones sold on Ebay a few years back were not very good.

I saw a old post about Chuck Paci making these but when I sent an email to cpaci1@verizon.net it came back as undeliverable.

Has anyone found a source currently producing these?

Thanks,

Ron

RE: Label set for Philco 70 - Nathan Slingerland - 07-08-2020

Hi Ron,

It should be possible to create a label set from the Philco 370 chairside labels:
https://philcoradio.com/library/index.php/documents/philco_docs/labels/page/2/

The tube layout label is already correct. It should be possible to update the model label.
I'll do that and add to the library.

-Nathan

RE: Label set for Philco 70 - Retroguy55 - 07-08-2020

Thank you Nathan.

RE: Label set for Philco 70 - morzh - 07-08-2020

Chuck Paci makes labels

RE: Label set for Philco 70 - Nathan Slingerland - 07-08-2020

Hi Ron,

Here's the patent label for model 70: https://philcoradio.com/library/index.php/documents/philco_docs/labels/philco-70-model-patent-label/
Tube layout label: https://philcoradio.com/library/index.php/documents/philco_docs/labels/philco-70-270-and-370-tube-layout-label/

See my thread on the model 370 labels for how to print it: https://philcoradio.com/phorum/showthread.php?tid=14861

Do you have access to a laser printer? If not, PM me.

Good luck on the restoration!

RE: Label set for Philco 70 - Retroguy55 - 07-09-2020

Thank you Nathan.  Yes I have a laser printer.  Can you suggest a place to buy gold foil paper to print the label?

RE: Label set for Philco 70 - Nathan Slingerland - 07-09-2020

Oh sorry I thought it was mentioned in that original thread on the 370 labels. It's not.

The thread on 112 labels has it: https://philcoradio.com/phorum/showthread.php?tid=17974

I bought gold paper from here: https://www.paperpapers.com/stardream-metallic-8-5x11-paper-antique-gold-81lb-text-120gsm-25-pk-dfs.html

RE: Label set for Philco 70 - Retroguy55 - 07-10-2020

Thanks Nathan the gold label looks fantastic. Anxious to make mine.

Thanks again.
Ron

RE: Label set for Philco 70 - Retroguy55 - 07-10-2020

I have this Philco Design Patent label on the arch of my Philco 70.

Is this available on the library?  I would like to reproduce this for my other Philco cabinets.

RE: Label set for Philco 70 - Nathan Slingerland - 07-10-2020

Hi Ron,

No we don't have have that one yet. I've tried previously to recreate it but the result hasn't been satisfactory due to the lack of a good original scan or photo.

Do you have access to a flatbed scanner where you could scan what you have at 600dpi or higher? I'd be very happy to clean it up in Photoshop and add it to the Library.
A photo would be fine too if it's clear enough to read the small text under the Philco logo. To use a photo I'd also need the original dimensions.

RE: Label set for Philco 70 - Retroguy55 - 07-10-2020

I scanned my label with a flat bed scanner.

Size looks to be 1.75 by 1 inch.

RE: Label set for Philco 70 - Retroguy55 - 07-10-2020

Took another digital photo.

RE: Label set for Philco 70 - Nathan Slingerland - 07-10-2020

Thanks Ron!

For some reason the scan was at pretty low resolution. Generally scanner software will let you preview then select just a small area that you can scan at higher resolution.

The new photo is better. I'll give it a try with that.

RE: Label set for Philco 70 - Retroguy55 - 07-10-2020

Thank you.  You are a great help to this hobby.

RE: Label set for Philco 70 - Nathan Slingerland - 07-26-2020

A Philco 70 / 90 design patent label is now available in the Philco Library:

https://philcoradio.com/library/index.php/documents/philco_docs/labels/philco-70-90-cabinet-design-patent-label/

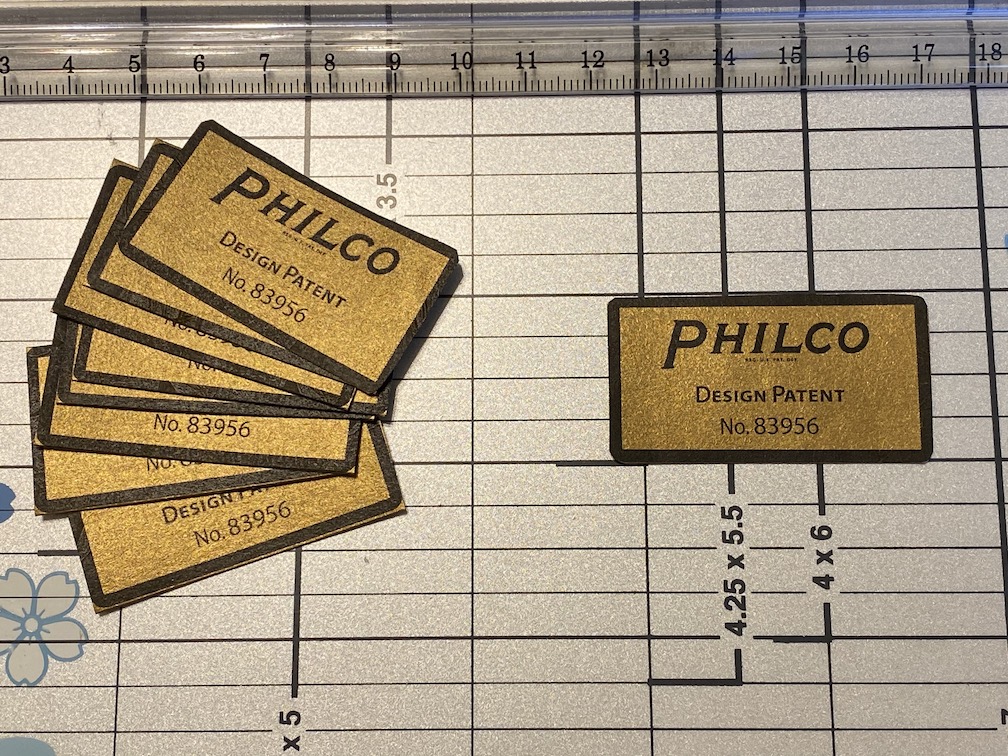

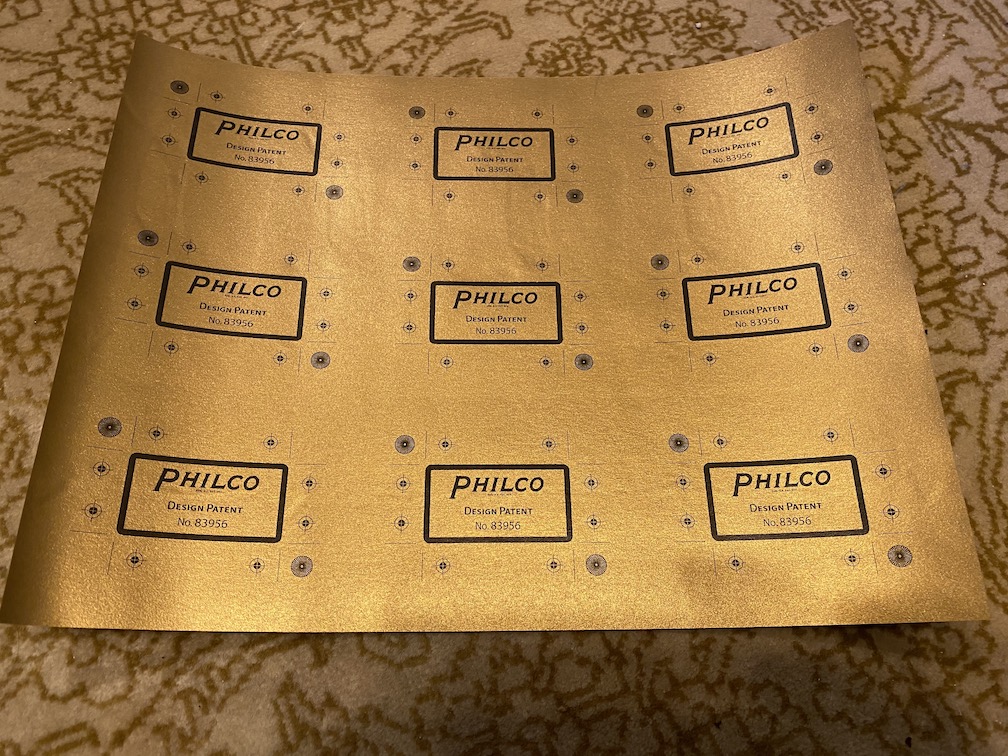

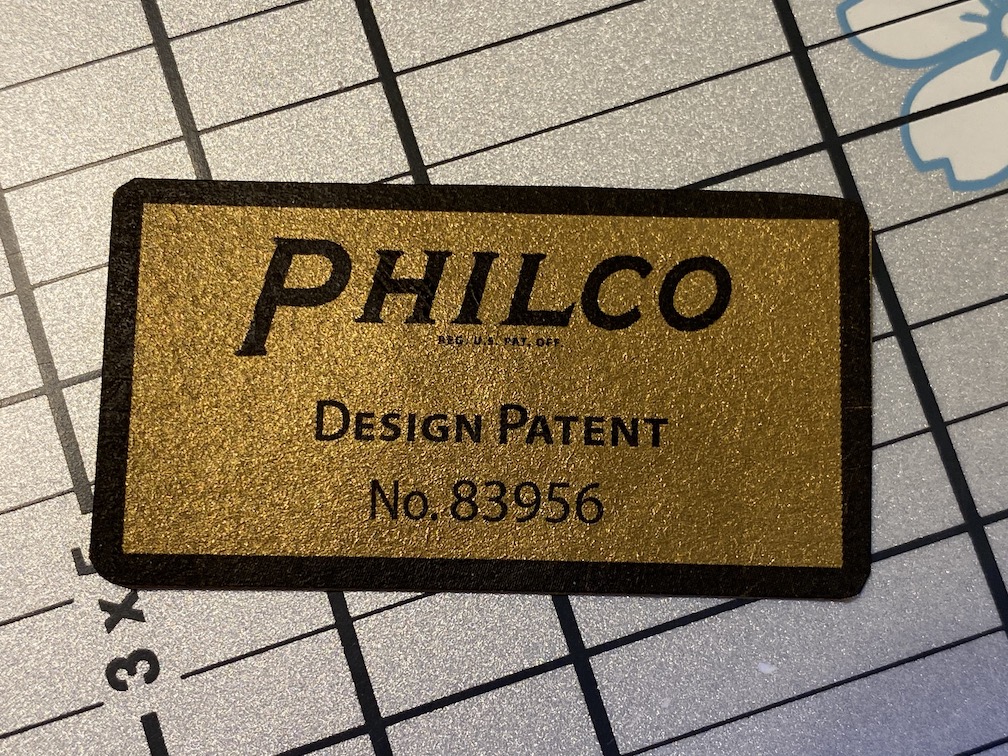

Here are some photos of the end product printed on the same gold paper as the model label:
