Pilot G-674 restoration - OldRestorer - 01-27-2016

I finished my Pilot G-674!

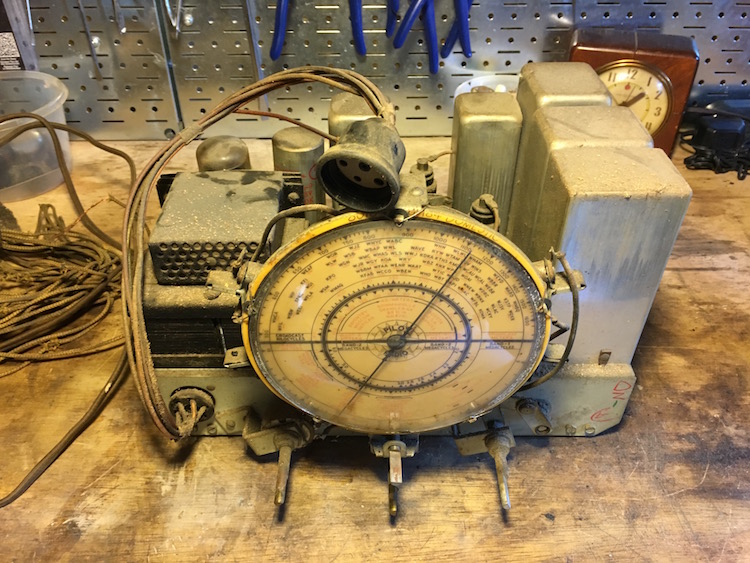

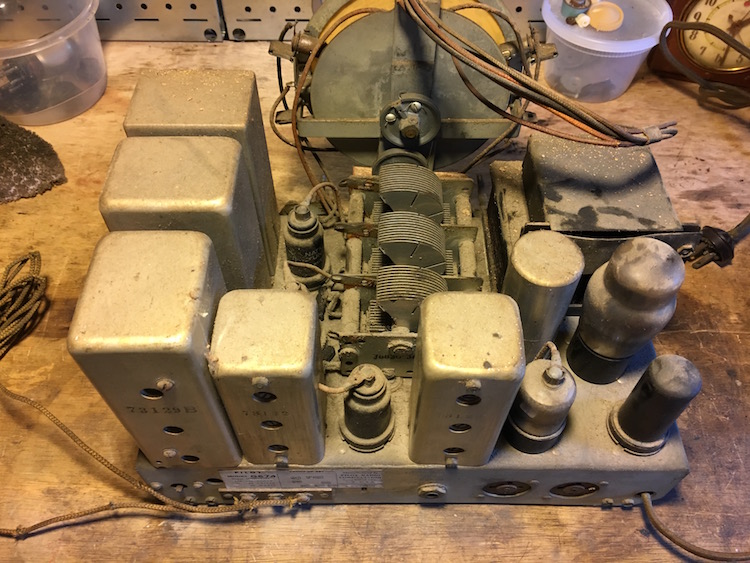

I dismantled it, cleaned it, did a full re-stuffing recap and resistor redo, and put her back together.. First picture is the before and last is the after.

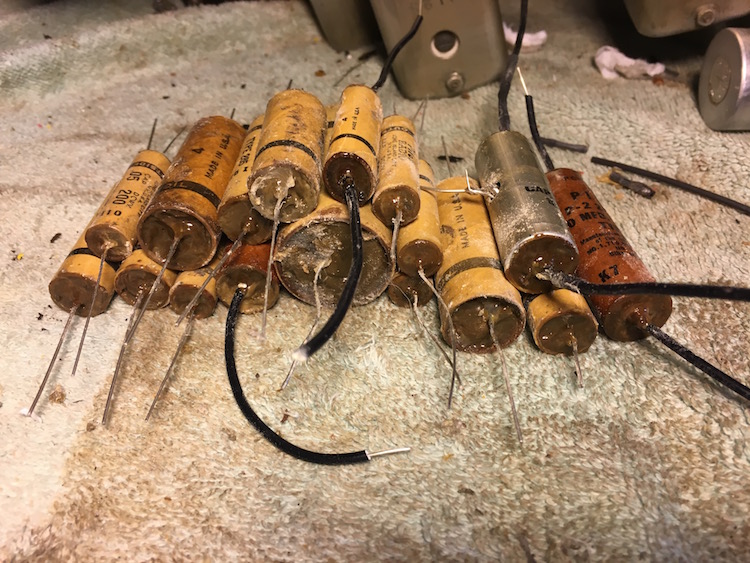

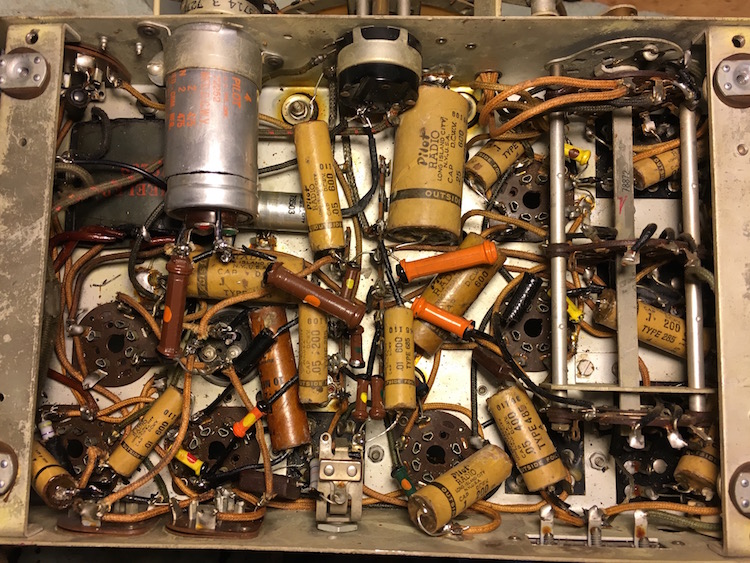

I removed all the caps and labeled every wire since I am not the greatest with schematics. I then baked the caps at 300* until the wax melted out. I took a screwdriver and quickly pushed out all the insides before the wax got hard again. I put all the new caps in each one, stuffed them with hot glue almost to the ends and then crushed up the original wax, put it in the ends and melted it over the glue. They came out just like the originals so that made me happy. I re-stuffed the Ecaps on top and bottom also.

Me


[attachment=9243]

RE: Pilot G-674 restoration - OldRestorer - 01-27-2016

More pictures




RE: Pilot G-674 restoration - klondike98 - 01-27-2016

Lookin' good Kirk Icon_clap Icon_clap Icon_clap

RE: Pilot G-674 restoration - KCMike - 01-27-2016

Nice job Kirk. How well does it play?

RE: Pilot G-674 restoration - mikethedruid - 01-27-2016

Very nice job so far. I look forward to hearing about the alignment, and how it receives and sounds when completed.

RE: Pilot G-674 restoration - Kenneth F. Besso Jr. - 01-27-2016

        BeautiFUL,,,Clean,,nice Job,,,eeeasy on the eyes

RE: Pilot G-674 restoration - OldRestorer - 01-27-2016

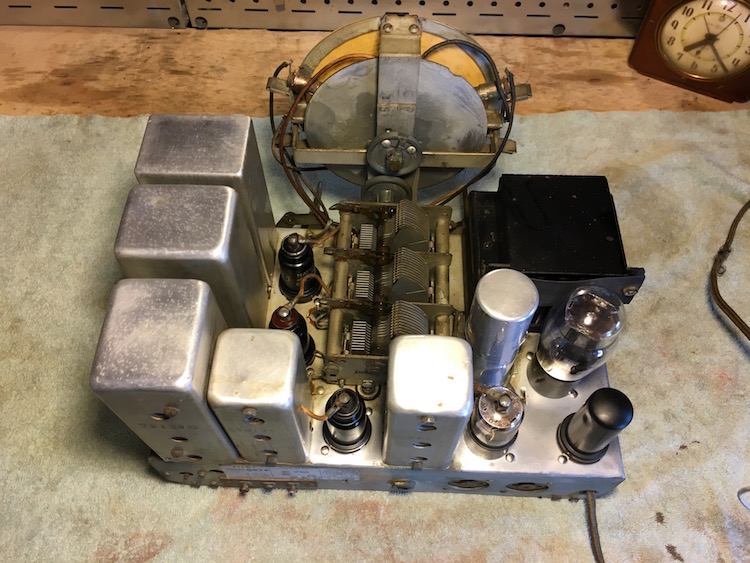

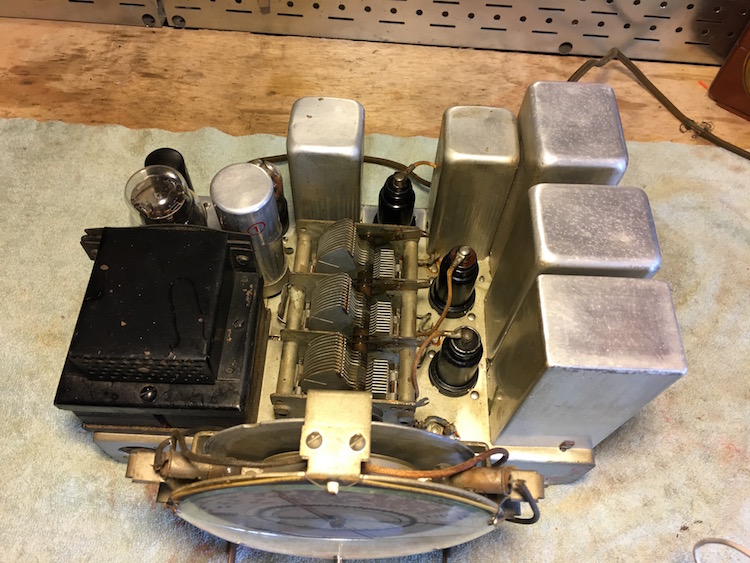

Here she is all finished...
LOL, Mike I cant align radios very well but this one doesn't seem to need it. It plays well all over the dial.

http://vid821.photobucket.com/albums/zz131/ppnhli/IMG_0074.mp4

RE: Pilot G-674 restoration - sam - 01-27-2016

Kirk
Nice job. But.   Eye tube did not work
I'll pick it up this weekend

Not That me. But me me

RE: Pilot G-674 restoration - OldRestorer - 01-27-2016

You are welcome to it Sam. The 6G5 is dead. I have a new 6E5 I will put in.

Now I have to repair the extensive termite damage.... Grrrrrr.

Best Me  Icon_wave

RE: Pilot G-674 restoration - Paul Philco322 - 01-27-2016

Looks like a winner, make sure the Termites is all gone!

Paul

RE: Pilot G-674 restoration - OldRestorer - 01-28-2016

They are long dead! The really ate the crap of the cabinet though. Only on part of the base wood under the veneer though. I have to fill along the whole side and top of the inside of the radio where they tunneled...

RE: Pilot G-674 restoration - leftwing25 - 02-03-2016

Can you use a 6e5 to replace a 6g5? I didn't think they were interchangeable.

RE: Pilot G-674 restoration - OldRestorer - 02-03-2016

Yes you can use the 6E5 for the 6G5

Kirk

RE: Pilot G-674 restoration - leftwing25 - 02-03-2016

Thanks, Kirk. Good to know. The 6gs and 6us are a bit too pricey. I guess a 6e would work for a 6u as well?

RE: Pilot G-674 restoration - Arran - 02-06-2016

(02-03-2016, 03:33 PM)leftwing25 Wrote:  Can you use a 6e5 to replace a 6g5?  I didn't think they were interchangeable.

 You can use a 6E5 in place of a 6G5 but the 6E5 is a more sensitive tube so the shadow will sometimes overlap. The 6E5 will react to less grid voltage then a 6G5 or a 6U5, so it may require some circuit modification for the 6E5 to perform properly.
Regards
Arran
