philco wire wound resistor values
nitram11
New Member
*
Posts: 2
Threads: 1
Joined: Jan 2018
City: Brandon, MB
#1

01-26-2018, 09:31 PM
Where can I find resistance values for part number 4953 wire wound resistor in model 90a double 45 tubes
thanks Martin
Find
PhilcoPhan1936
Jeff W.
******
Posts: 751
Threads: 91
Joined: Nov 2015
City: Jonesboro State, Province, Country: AR
#2

01-26-2018, 10:20 PM
Welcome! That's a good question. I looked through my available documentation, with no luck. Hopefully Ron or another member here has some data or documentation that will be able to help you out.
Blessings,
Jeff W.
Jonesboro, Arkansas

http://jeffsradios.weebly.com

God loves you as you are, not as you should be, because none of us are as we should be. - Brennan Manning
Find
Radioroslyn
Phorum Expert
*****
Posts: 7,301
Threads: 269
Joined: Dec 2009
City: Roslyn Pa
#3

01-26-2018, 11:01 PM

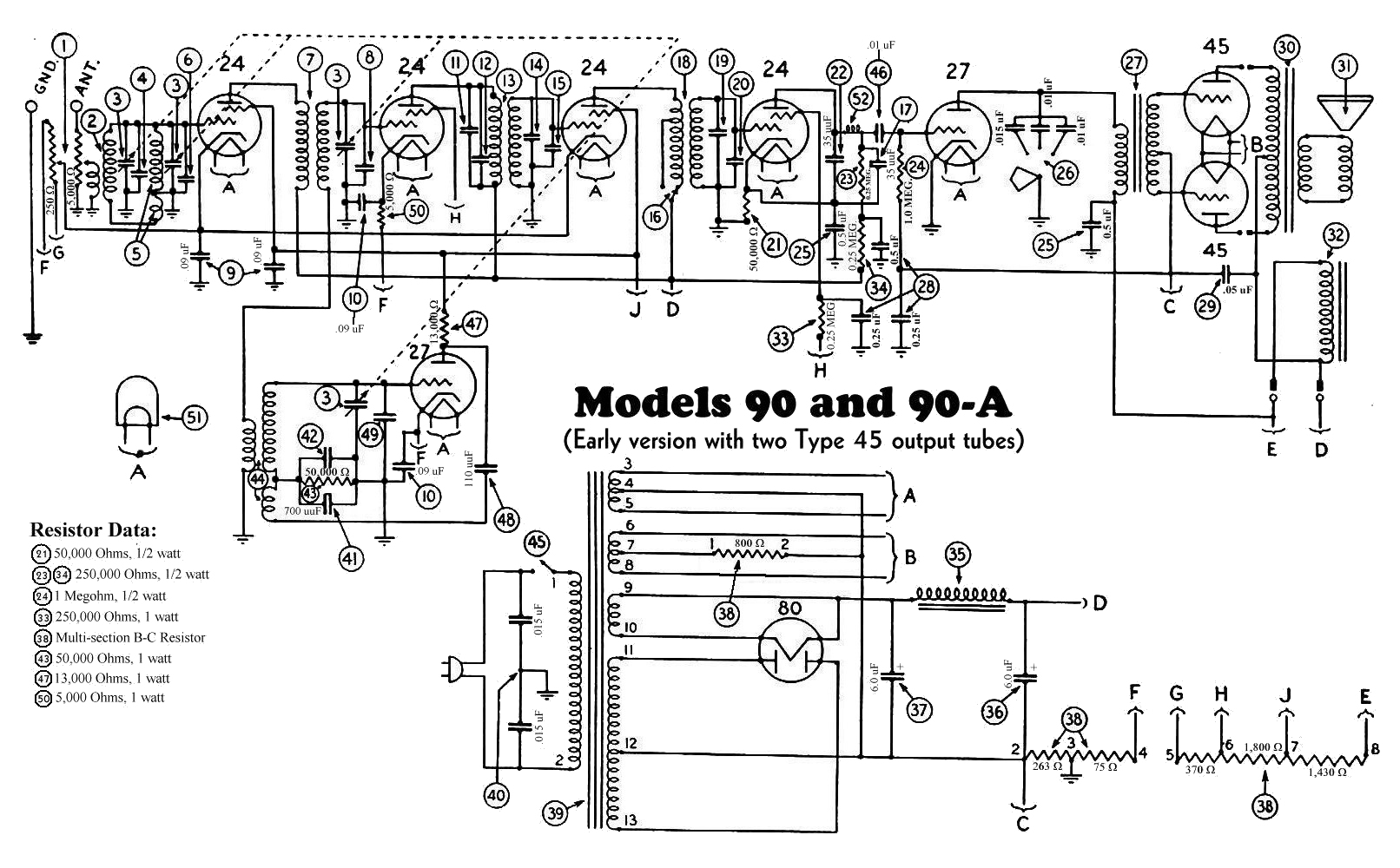

http://www.philcoradio.com/images/phorum/schem/90a.jpg
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
Find
nitram11
New Member
*
Posts: 2
Threads: 1
Joined: Jan 2018
City: Brandon, MB
#4

01-27-2018, 12:47 PM
Thank you for your quick reply and now we can finish the radio up
Martin
Find
klondike98
Phorum Moderator
******
Posts: 5,170
Threads: 274
Joined: Nov 2012
City: Wilsonville State, Province, Country: OR
#5

01-27-2018, 01:40 PM
Welcome to the Phorum!
Icon_wave
Cheers,
Bob
[Image: https://www.dropbox.com/s/5m63ib99yfx2eg....jpg?raw=1]
Bob's Restorations Web Page
Website Find
