Philco 16B & 116B instruction pamphlet
Scott D
Member
***
Posts: 102
Threads: 14
Joined: Jul 2017
City: Bakersfield, CA
#1

02-05-2018, 04:49 PM
Does anyone have the instruction pamphlets Philco included for either or both of these radios - 16B and 116B?

I am looking for the instructions for the code 121 radios... the early 1935 art-deco tombstone and the early 1936 shouldered tombstone.

Thanks for your help.  I haven't found either of these yet on this site.  Maybe I just missed them.

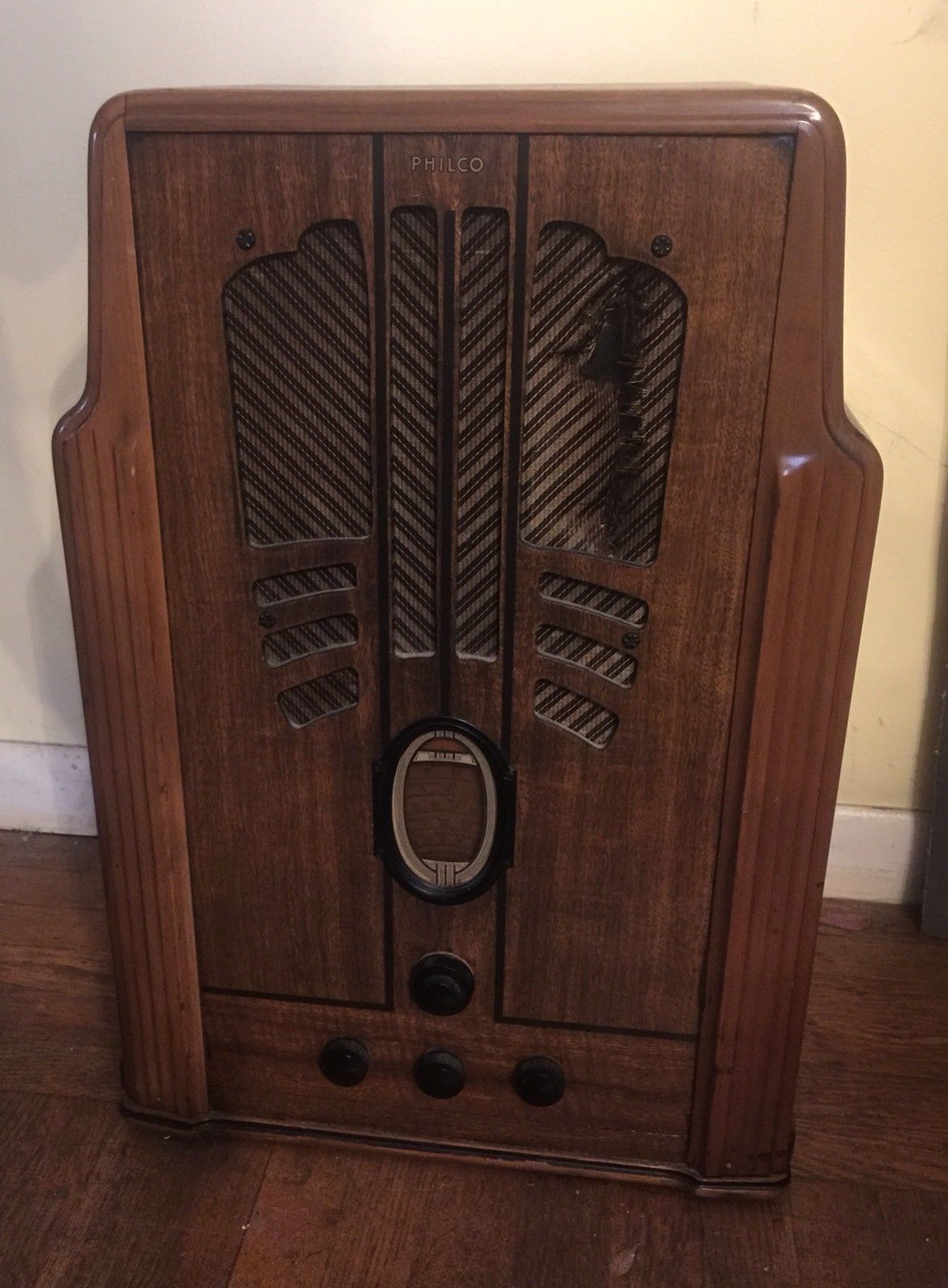

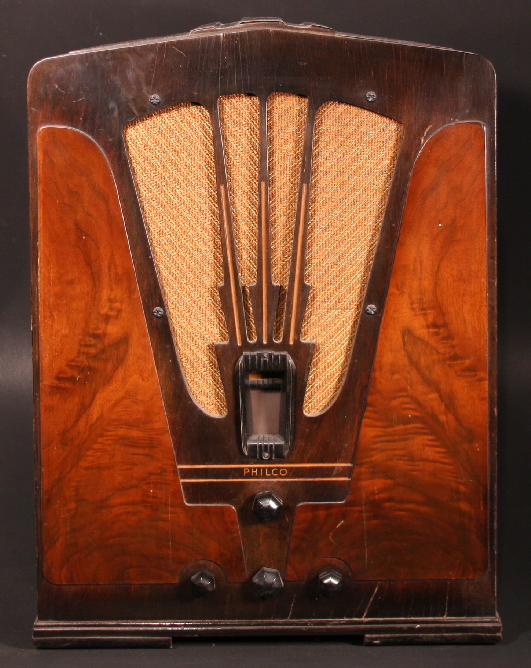

I have included pix of the radios just to be clear.

Scott


Attached Files Image(s)

(This post was last modified: 02-05-2018, 06:29 PM by Scott D.)
Find
PhilcoPhan1936
Jeff W.
******
Posts: 751
Threads: 91
Joined: Nov 2015
City: Jonesboro State, Province, Country: AR
#2

02-06-2018, 01:30 AM
Scott,

Did you check the Downloadable files section? I found some info on the 16, not sure if this is what you're looking for. There's also a thread with the 116X manual available. It should be similar to the 116B, since the coverage and controls were the same.

http://philcoradio.com/phorum/showthread.php?tid=6871

http://philcoradio.com/phorum/showthread.php?tid=12809

If this isn't what you're looking for, a hunt through the internet is probably called for, unless a member here has it, and just hasn't scanned and made it available yet....
Blessings,
Jeff W.
Jonesboro, Arkansas

http://jeffsradios.weebly.com

God loves you as you are, not as you should be, because none of us are as we should be. - Brennan Manning
Find
Scott D
Member
***
Posts: 102
Threads: 14
Joined: Jul 2017
City: Bakersfield, CA
#3

02-06-2018, 11:33 AM
Thanks Jeff. I already found the 116X pamphlet and the 16B code 125 sheet. Just nothing specific on on the two I mentioned. A first hunt on the internet turned up nothing. I will keep looking though. If it find them, I will post and share them.
Find
morzh
Odobenus rosmarus
******
Posts: 16,543
Threads: 572
Joined: Oct 2011
City: Jackson State, Province, Country: NJ
#4

02-06-2018, 12:18 PM
The lower pic radio doesn't seem to be a 16 or 116.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Find
Ron Ramirez
Silent Key
*****
Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand State, Province, Country: Indiana
#5

02-06-2018, 01:53 PM
Mike, it is a 116B alright, just refinished incorrectly (no two-toning).
--
Ron Ramirez
Ferdinand IN
Find
Scott D
Member
***
Posts: 102
Threads: 14
Joined: Jul 2017
City: Bakersfield, CA
#6

02-06-2018, 06:12 PM

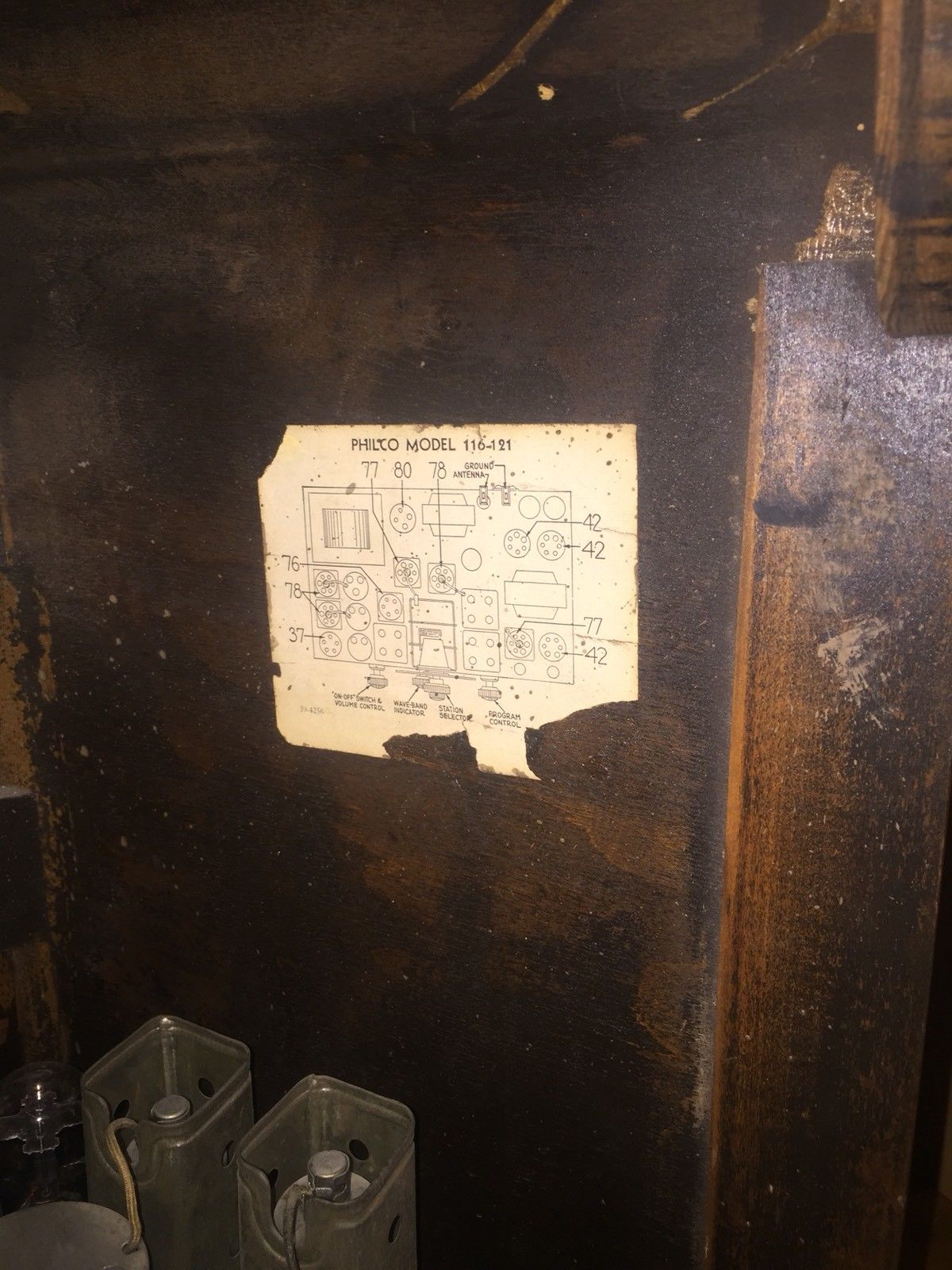

Indeed Ron, it is not done correctly... but, beggars can't be choosers.  I will correctly redo it when I retire some day - lol!   That said, here is the interior tube layout sticker.

Scott


Attached Files Image(s)

Find
morzh
Odobenus rosmarus
******
Posts: 16,543
Threads: 572
Joined: Oct 2011
City: Jackson State, Province, Country: NJ
#7

02-06-2018, 08:35 PM
Yep, now I can see it. I thought it was 620 or such.....it almost looks smaller that way.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Find
Kenneth F. Besso Jr.
Senior Member
****
Posts: 670
Threads: 11
Joined: Sep 2014
City: Bellmawr, NJ
#8

02-06-2018, 08:41 PM
I think it is a 620 also,,,,,,BUT,,,I'm known to be WRONG a lot,,,CHEERS
Find
morzh
Odobenus rosmarus
******
Posts: 16,543
Threads: 572
Joined: Oct 2011
City: Jackson State, Province, Country: NJ
#9

02-06-2018, 08:47 PM
Ken

No, it is not a 620, it is indeed a 116B.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Find
Kenneth F. Besso Jr.
Senior Member
****
Posts: 670
Threads: 11
Joined: Sep 2014
City: Bellmawr, NJ
#10

02-07-2018, 02:08 PM
OH,,,I believe you--ALL,,,,,I see the base is Different,,,,
Find
Scott D
Member
***
Posts: 102
Threads: 14
Joined: Jul 2017
City: Bakersfield, CA
#11

02-09-2018, 08:56 PM
It'd hard to argue with the tube layout label.   Icon_rolleyes

While the finish isn't as it should be, the 116 is a strong player on all bands.  Now, if there was just something descent on radio to listen to... lol!



BTW - I'm still looking for those operating instruction pamphlets!   Icon_yawn
(This post was last modified: 02-09-2018, 08:59 PM by Scott D.)
