[bridkarl]

All recapped and checked. Had to order a new knob. Seems to work ok.

The bulb seems to be an issue. It’s bright for a moment and then gets truly dim. Seems to be drawing too much B+. I haven’t replaced any tubes so that may be the issue.

 I also couldn’t figure out if the original power cord went under OR through the antenna. I put it under using a polarized cord with the hot side to the switch. I’m debating if it needs a fuse, but since I use it through a fused isolation transformer I think not.




[jrblasde]

Fantastic progress so far! You bring up an interesting question regarding fusing. I don’t hear much about people fusing transformer less AC/DC sets. Maybe I just haven’t happened to catch those particular conversations, I don’t know. But I’ve long wondered.

Does the bulb remain bright if you pull the 35Z3 tube? You won’t get any plate voltage if you remove this tube, but the rectifier is really the only thing I can imagine would suddenly dim the bulb, once it heats up and starts rectification.

[bridkarl]



the bulb is acting as a current limiter. Sort of a cheap solution to save the rectifer and the power supply filter. I’m thinking there’s some better solution.

I’ve used an inline fuse in the hot side of the switch before. Not sure it’s worth it given there’s a fuse on my isolation transformer, but if they have one at Ace Hardware next time I’m there…

Not sure what else this needs aside from an alignment. I haven’t swapped out tubes yet

[Arran]

I have heard of some people adding current limiting resistors ahead of the heater string in AC/DC sets but I never bothered, I don't use most of them enough to blow out tubes anyhow. The last tube I had fail was after the radio had been on for an hour, and it wasn't even at one end of the heater chain, nor did it go open until after I tried checking it in a tube tester. There were a lot of dodgy components used in post war sets, and this one was from 1947-48, including tubes sometimes, I think the PT6 was a 1940 model was it not? I like the design of the cabinet by the way, clean yet elegant.
Regards
Arran

[bridkarl]

It’s a 1941 model. I won’t be using it enough to justify figuring out.
All that’s left is getting the knob I have on order and figuring out what size screws I need to hold the chassis in the case.
I suppose a thermistor in series with the bulb might work but what value??

[462ron]

I don’t know exactly how dim your pilot gets but this is the typical of the response of many transformerless AA5s where the bulb, usually a #47, is in series with the filament string and across a portion of the rectifier filament and plate of the rectifier. When first switched on, the filaments are cold, thus at a low resistance for a bit. The bulb flares up bright but then dims down as the filaments heat up and increase in resistance. Then the tubes start to conduct and draw current through the rectifier and the bulb so the brightness comes up slowly. From what I’ve seen, it doesn’t get as bright as it does when first switched on and filaments are cold.

Ron

[jrblasde]

I agree with Ron. That’s how my 49-906 behaves. That’s why I’m curious if the bulb stays at full brightness if the rectifier tube is pulled.

[bridkarl]

I’ll get on doing that and see what happens.
Just to keep this all in one thread -

Anyone know what length/size is used for the screw holding the chassis on And any recommendations for touch up paint for the black trim? I have several Philcos with that black edging.

[Arran]

Well the 35Z3 doesn't have a tap on the tube heater for a pilot light, so in this set they have the dial lamp paralleled with a 40 ohm power resistor, between the hot side of the power line and the plate of the 35Z3. In some sets, like my 42-327, they used a 120 volt candelabra bulb across the power line to light the dial, and basically the whole back of the set for that matter.
As for the cabinet trim it's probably medium walnut or dark walnut shading lacquer that was used, Mohawk paint makes both of these in dye and pigment based varieties. If it really was black then lacquer or acrylic paint will work, as you can coat over either with clear lacquer.
Regards
Arran

[MrFixr55]

Hi Gang,

Tube heaters are not "Ohmic" devices (that maintain specified resistance over wide temperature, current, etc.).  They start out at a very low resistance and draw a lot of current.  If you observe the filaments, it is possible that you will see a similar but less dramatic effect on some of the tubes.  Every AA5 set I have with a pilot light behaves the same way, with the bulb getting very bright at turn on, dimming as the tubes warm up and then getting brighter as the rectifier starts conducting.

As for fusing, most sets using a 35Z5, 35W4 or 35Y4 (the ones with the tapped filament heater) puts the rectifier plate (and the B+ load on the tap.  A short in the B+ or heaters in the other tubes would blow the section of the 35Z5 heater between the power input and the plate (and also the pilot lamp).

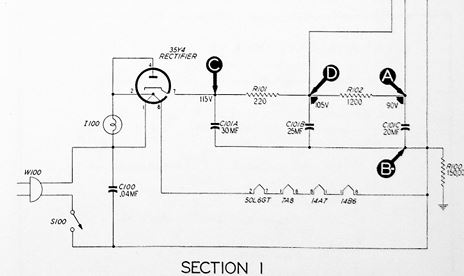

Attached below is the Power Supply section of my 47-205 that uses a 35Y4 in the manner described above.  No resistors are used because the convertor, IF and detector / 1st AF are 14V tubes, so the total filament voltage of the string is 127V nominal.  See below:


In your set, the 35Z3(a Loctal) tube does not have the tap that a 35Z5 does.  In addition, since the convertor, IF and detector / 1st AF tubes are 7V types, you need the 120 Ohms that the Candohm resistor, #27A / 27B provides.  Since the 35Z3 is part of the heater string, pulling the tube not only breaks the B+, it breaks the filament string, therefore no current will flow and the pilot remains off.  IMHO, the Candohm acts as a fuse (albeit an expensive and had to replace one) in a manner similar to a 35Z5 filament as described above.

Hope this helps.
