Ron's Pioneer SX-1500TD

Ron Ramirez
Silent Key

Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand State, Province, Country: Indiana

#25

03-05-2016, 11:42 PM

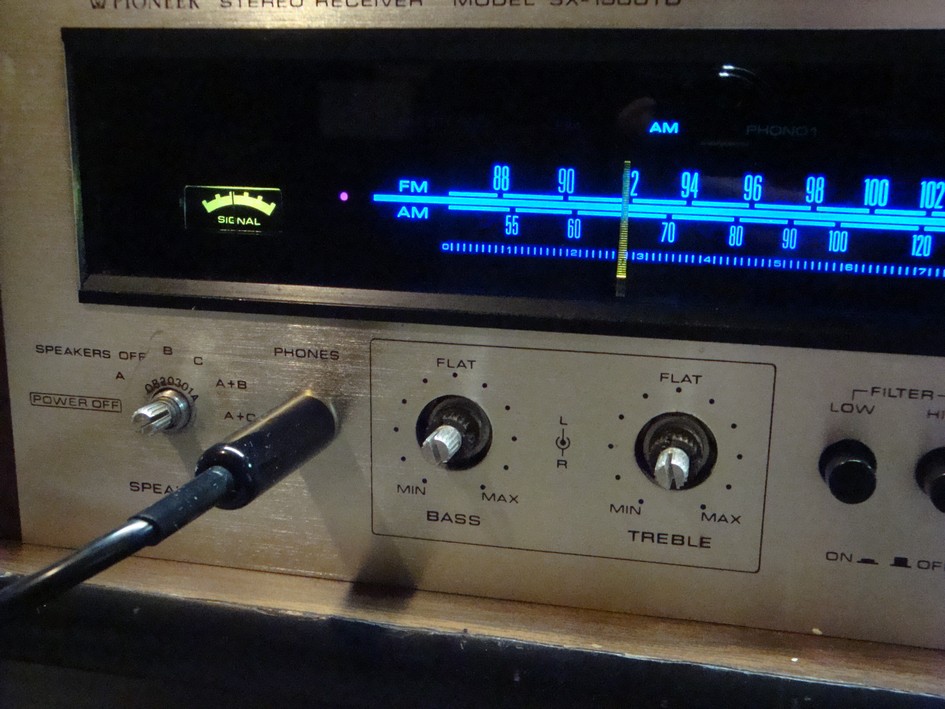

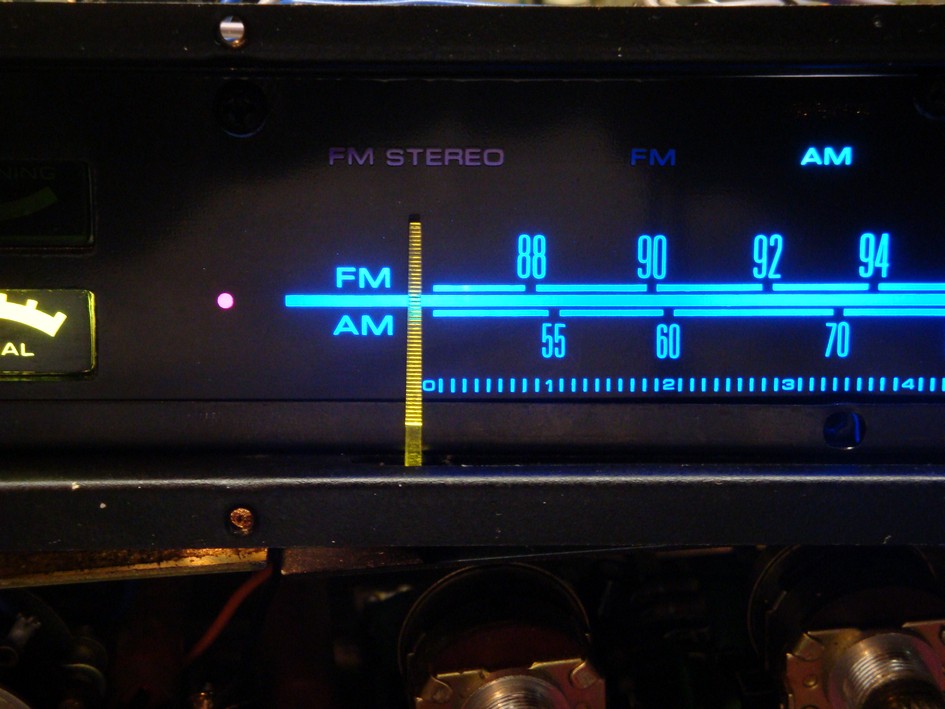

Voila, it works:

[Image: http://www.philcoradio.com/images/phorum..._00023.jpg]

[Image: http://www.philcoradio.com/images/phorum..._00024.jpg]

[Image: http://www.philcoradio.com/images/phorum..._00025.jpg]

[Image: http://www.philcoradio.com/images/phorum..._00028.jpg]

It doesn't seem to be too bright, though. (And the package calls this a "high" brightness LED.) A quick voltage check indicated the LED was only getting 1.5 volts; it should be getting 3 volts. Guess I messed up on my calculations. Tomorrow, I will remeasure the voltage and if necessary, I will reduce the voltage dropping resistor to 300 or 270 ohms before buttoning this one up.

--
Ron Ramirez
Ferdinand IN
