RCA?

NostalgiaRadioTime
Super Moderator

Posts: 1,523
Threads: 240
Joined: Sep 2012
City: West Bend, Wisconsin

04-01-2017, 07:16 PM

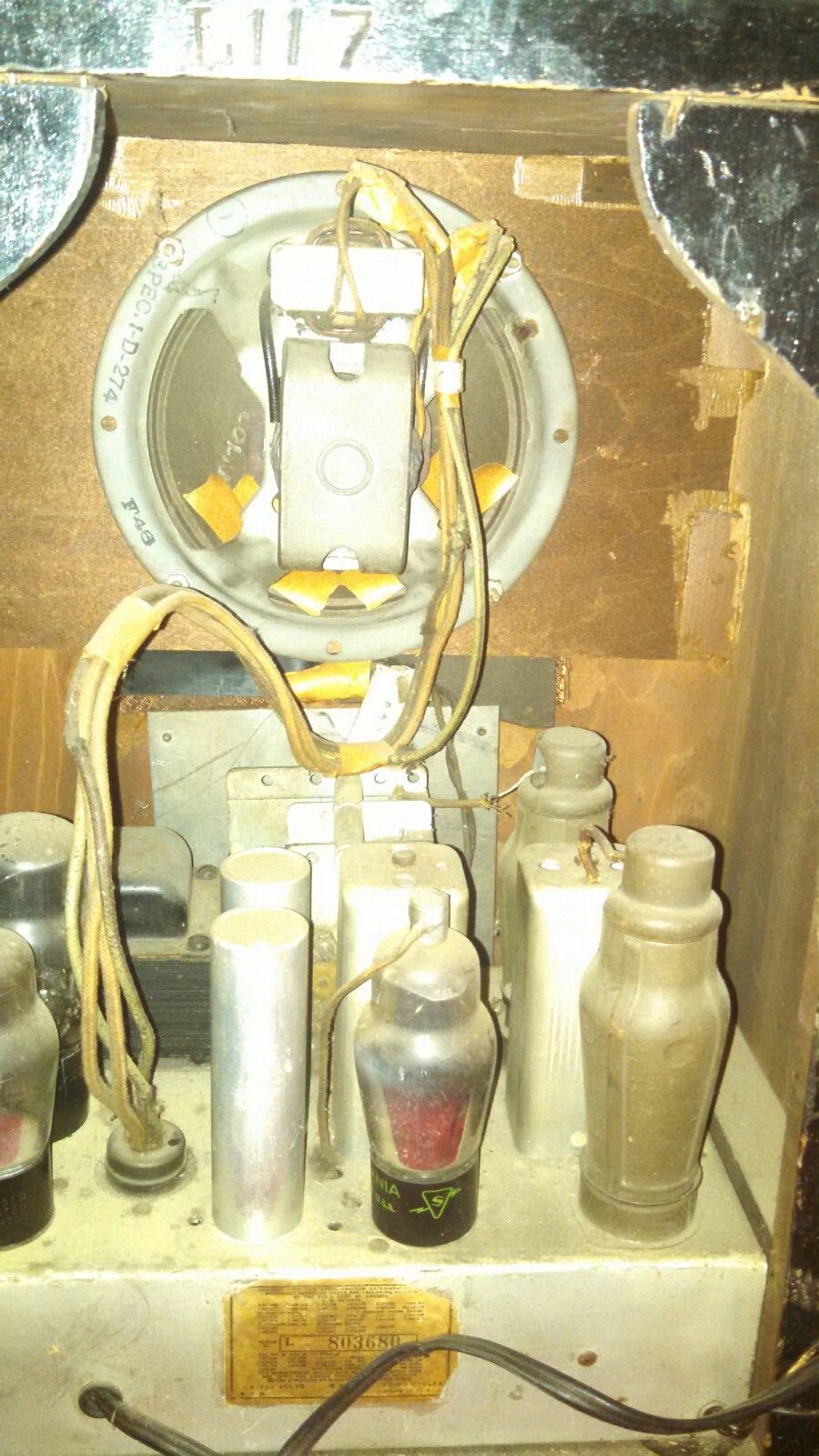

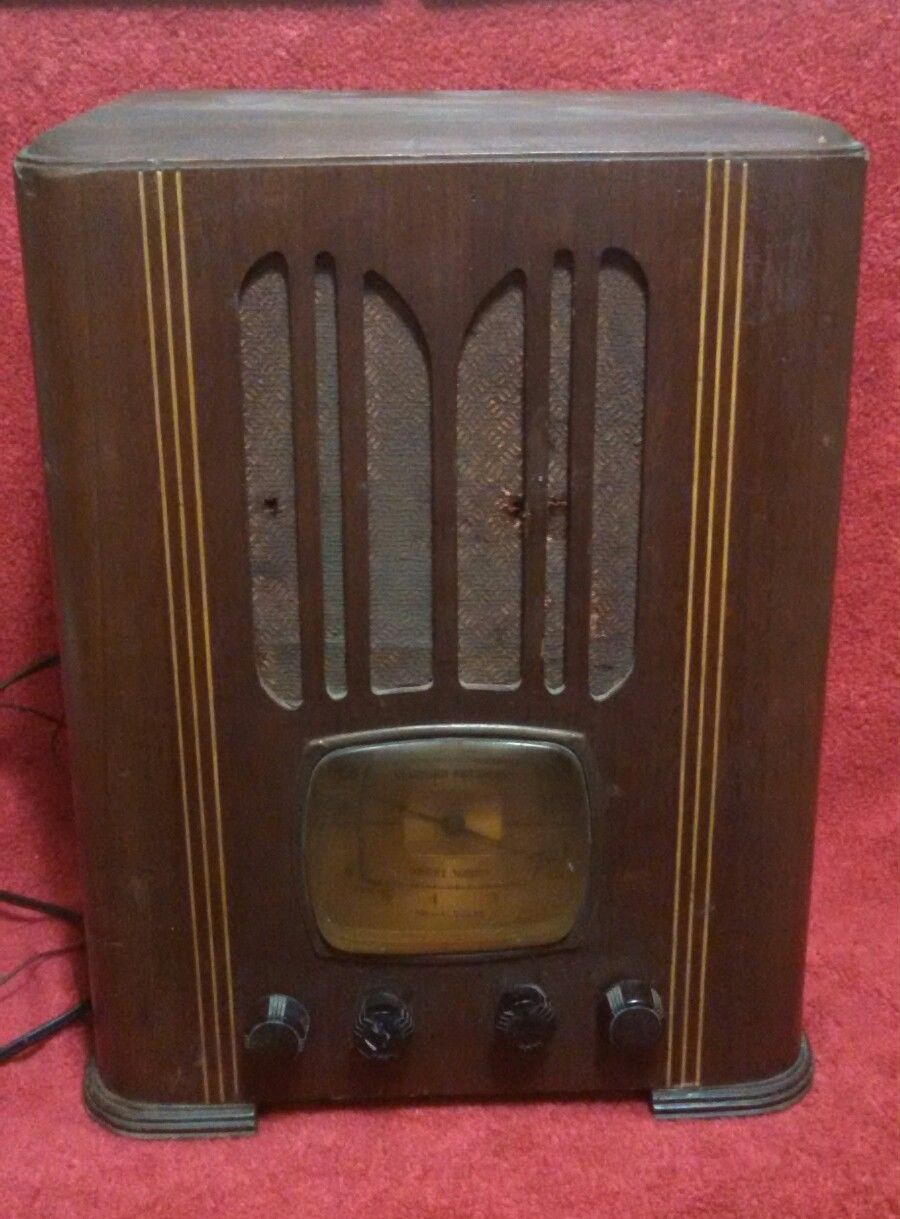

Any idea what make / model this is? A friend sent me these pics and said it was an RCA, but couldn't find a model number on it. I searched the pics on Radio Museum but couldn't locate it either. Anyone have any guesses?

Greg V.
West Bend, WI
Member WARCI.org
