Philco 47-1230
criageek
Member
***
Posts: 182
Threads: 5
Joined: Feb 2017
City: Cedar Rapids Iowa
#7

04-03-2017, 08:31 AM

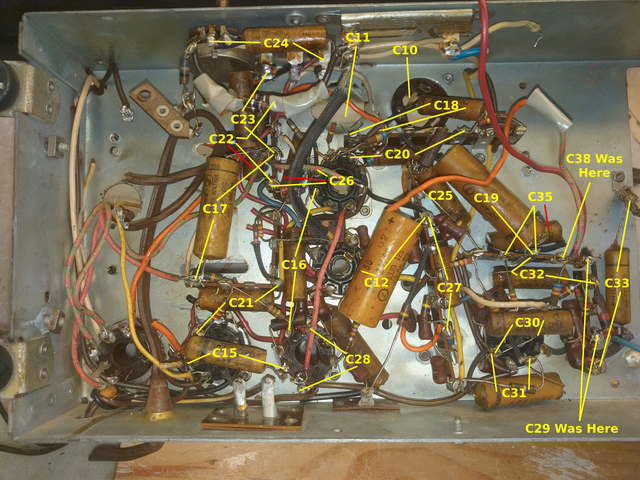

Looks like the original poster may have forgotten about this thread, but in case anyone else comes across it and is looking for the correct capacitor layout, here it is.  Again, these designations correspond to the Sam's Photofact for the 47-1230.  If I get time I might create one for the Riders designations as well.
