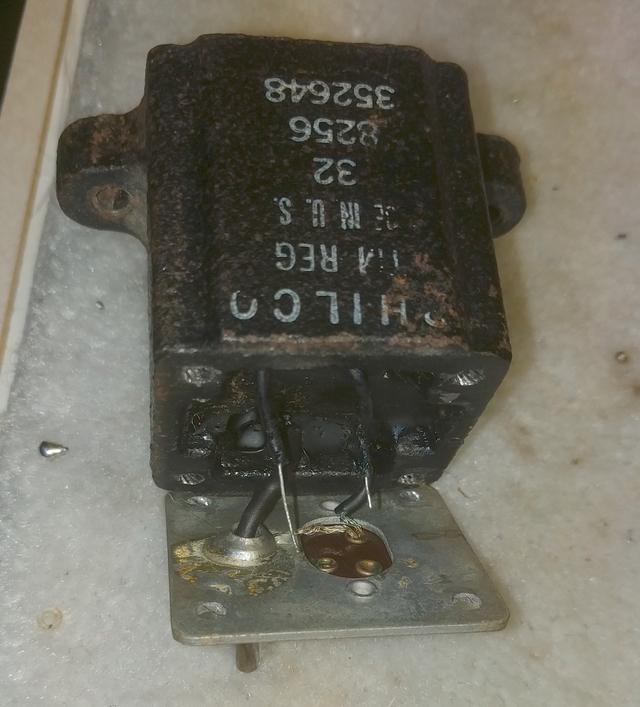

The phono impedance matching transformer is back together. Here I've soldered the 2 ground leads into the ground pin, and the center conductor of the RCA connector.

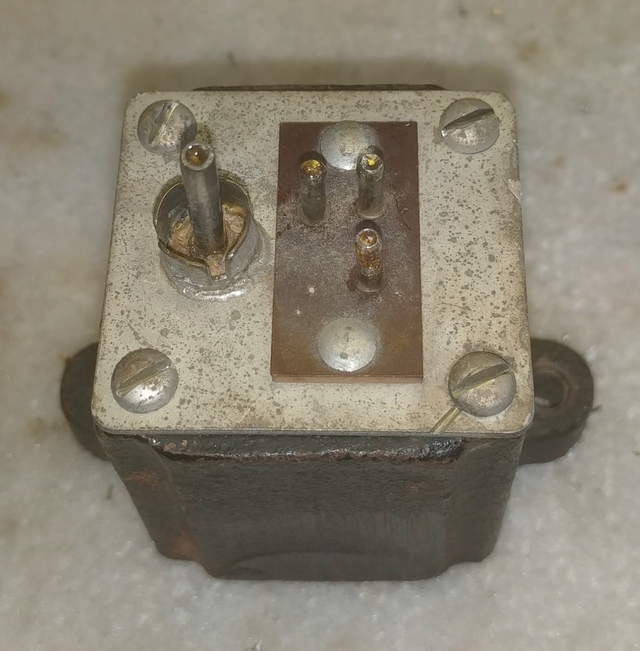

And here it is with all wires soldered and the rivets re-inserted
I'm concerned about how strong my glue job will be for the RCA connector. I used a liberal amount of JB Weld so hopefully it will hold. Fortunately, this should very seldom have to be disconnected and connected once it's in the cabinet.
Rich
