Posts: 182

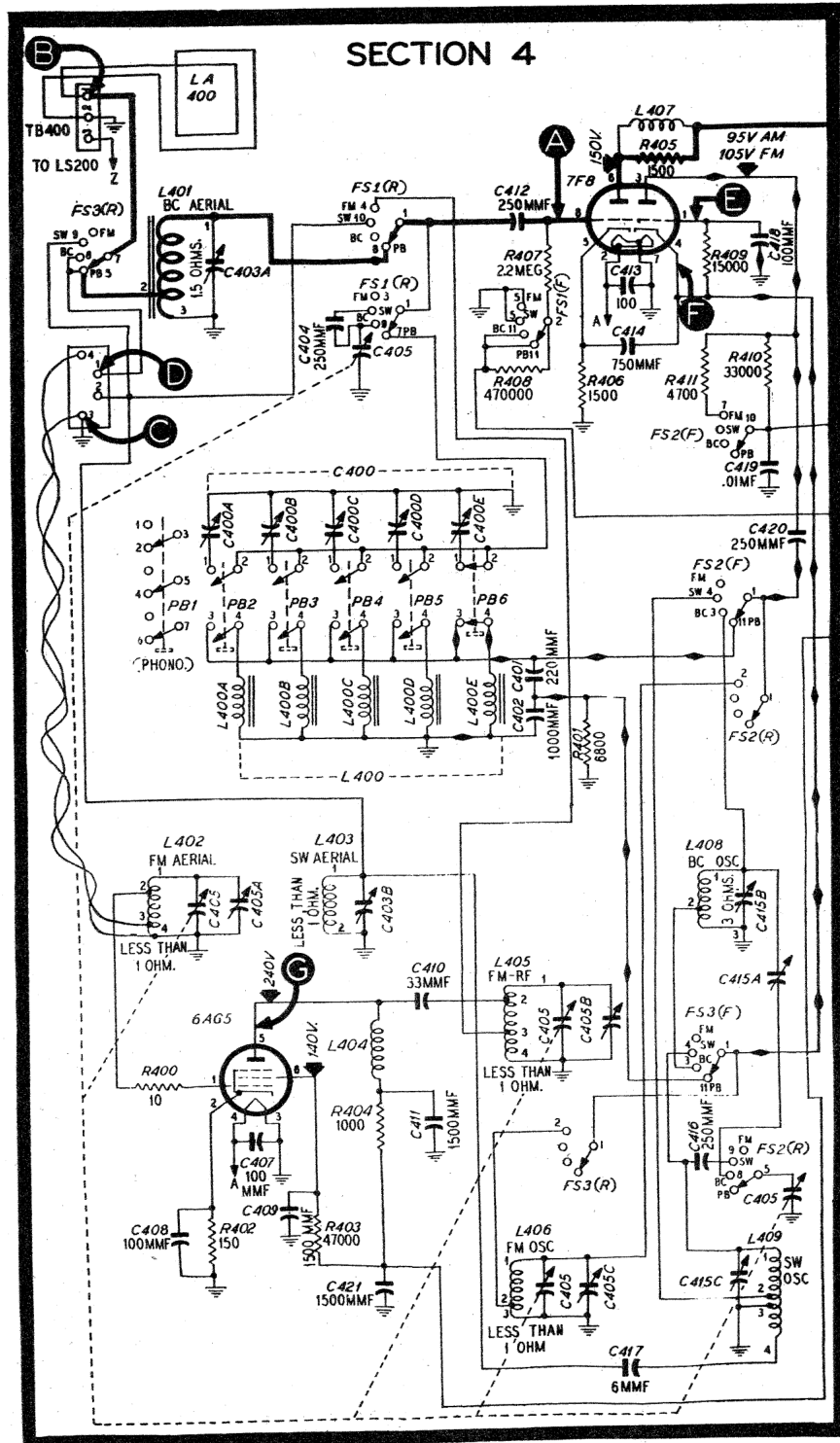

I have sprayed and exercised the bandswitch but will do it again. I feel like I'm a good schematic reader but I'm having trouble understanding the front end on this one. It looks to me like the only time that the loop antenna and AM antenna coil are connected to the circuit is when the bandswitch is in the PB (pushbutton) position. I'm looking at the FS1( R ) section. When it's in the BC (broadcast) position the connection is opened. What am I missing?
Attached Files
Image(s)
Messages In This Thread
RE: My 47-1230 Restoration - by criageek - 04-27-2017, 07:34 PM
