Ok Rich,

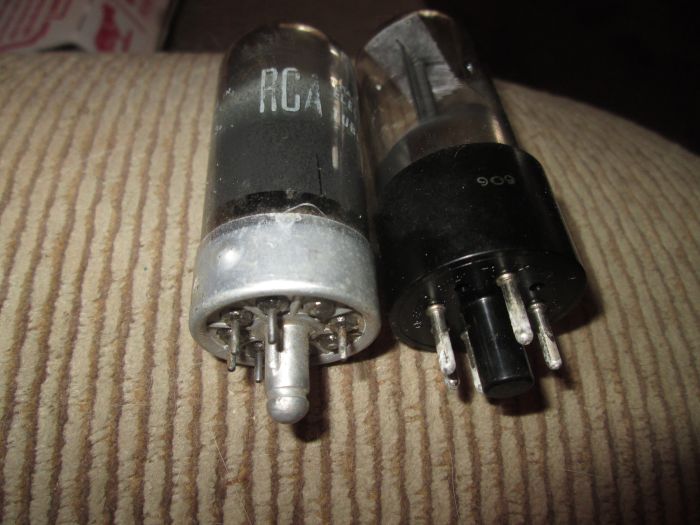

It time for a pop quiz! Does your rectifier tube look like the one one the left or the one one the right??
Answer carefully your radios life depend on the correct answer.


Attached Files Image(s)

When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
