Hallicrafters S53-A

jcassity
Senior Member

Posts: 619
Threads: 42
Joined: Mar 2017
City: Gap Mills Wv 24941

#34

01-01-2018, 01:51 PM

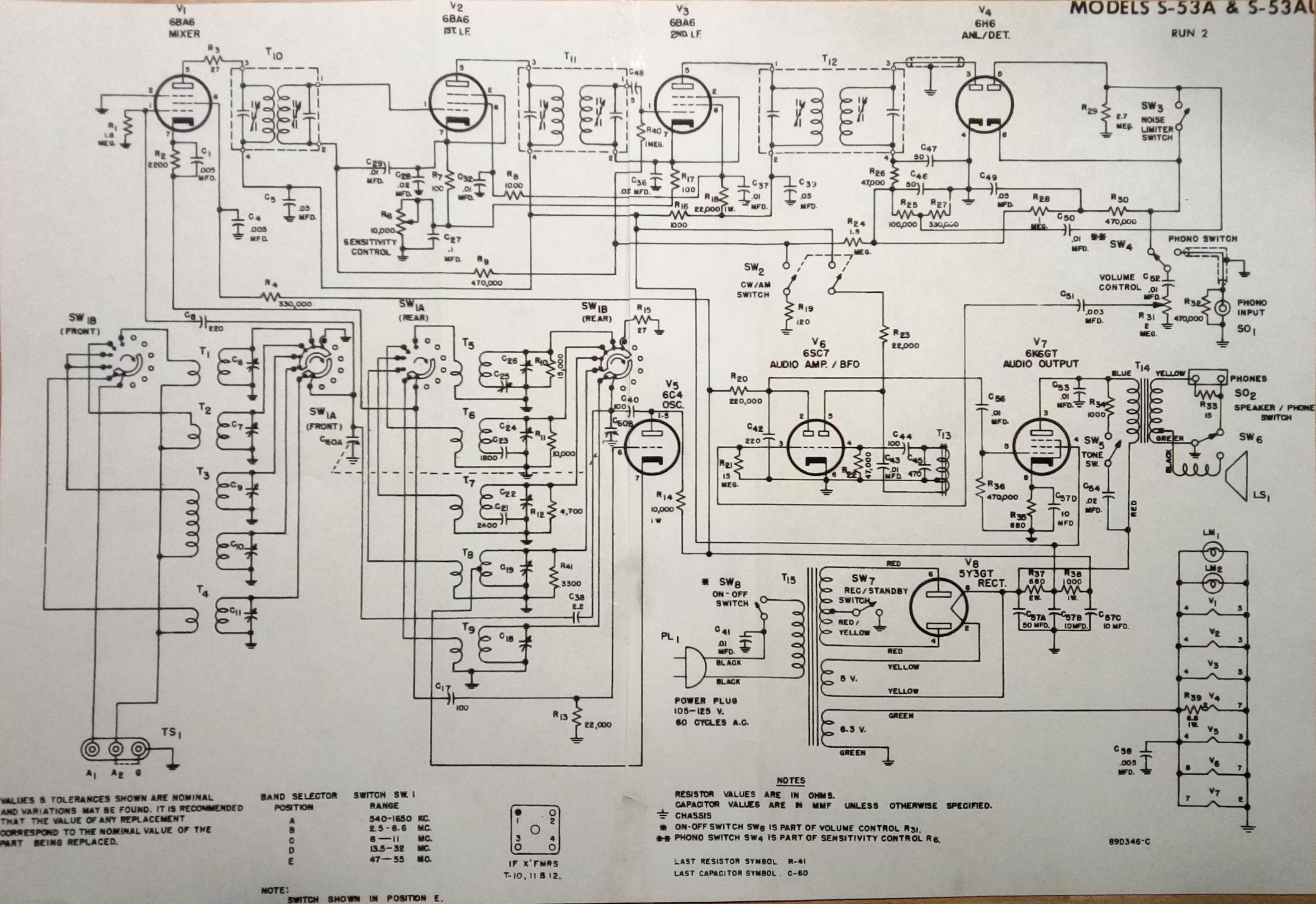

Here is a much better schematic easier on the eyes.

the reference to the IF is incorrect, along the bottom postion 3 & 4 need swapped to represent visually matching how its installed.

Attached Files Image(s)

(This post was last modified: 01-01-2018, 02:07 PM by jcassity.)
