Ron's Cabinet Work for the 2018 Season
Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand
State, Province, Country: Indiana
After raining much of the week, today was sunny and in the 70s...perfect weather for spraying lacquer.

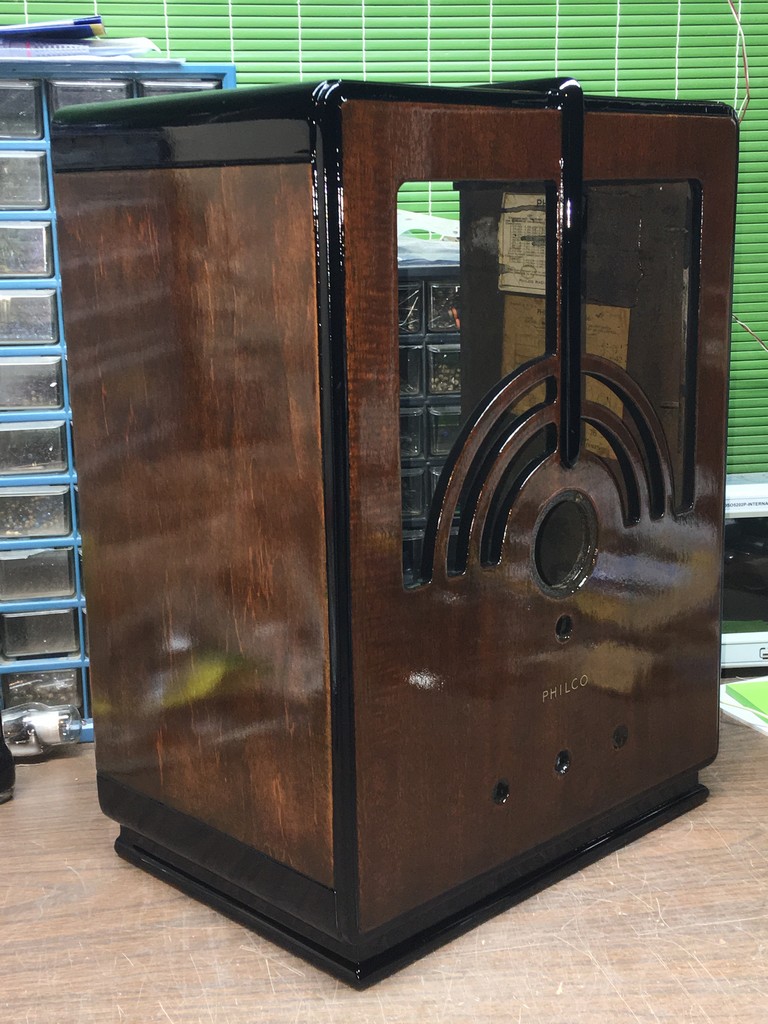

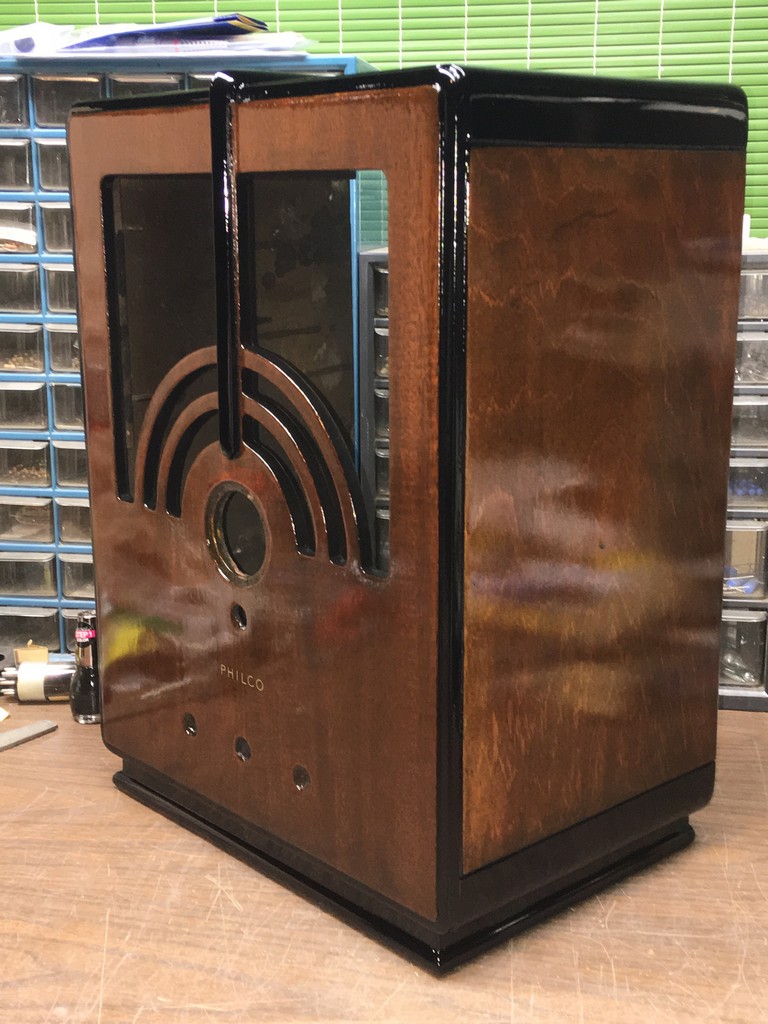

I think the 66B is now as good as it is going to get.
[Image: http://www.philcoradio.com/images/phorum...18_038.jpg]
[Image: http://www.philcoradio.com/images/phorum...18_039.jpg]

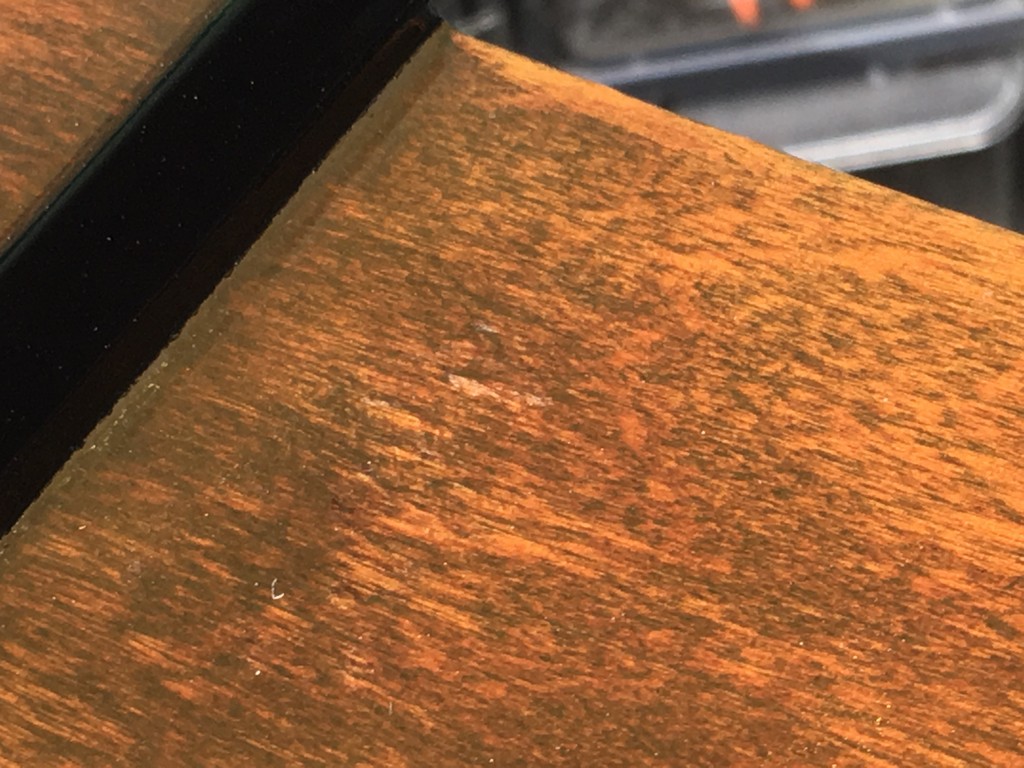

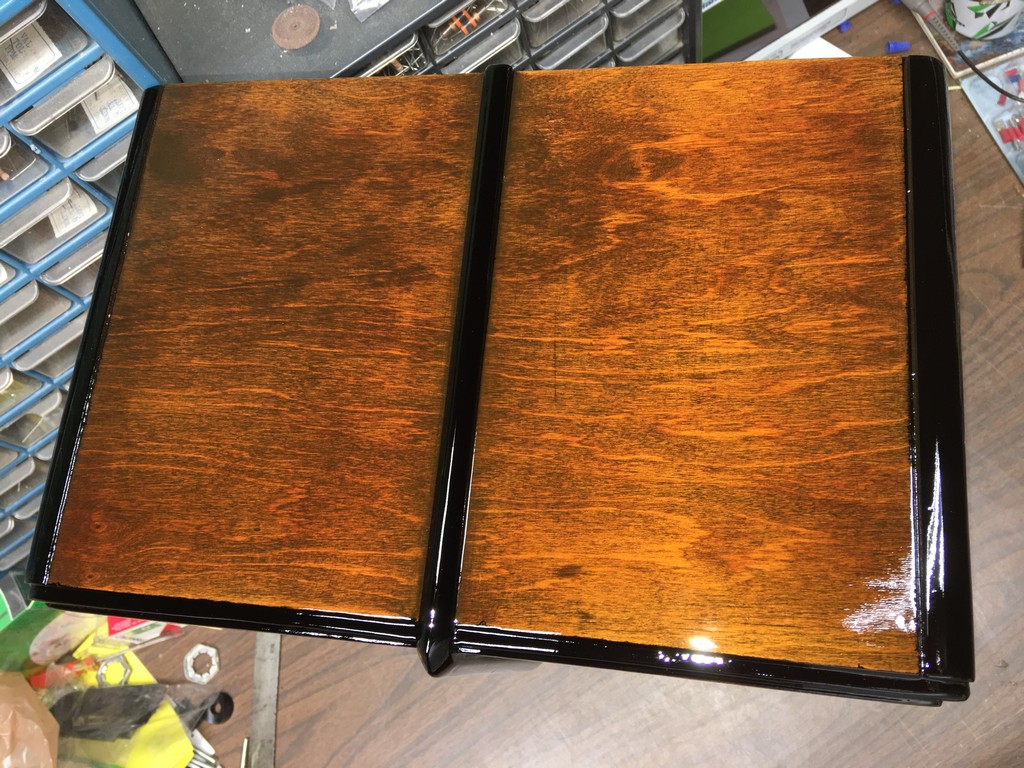

And the flaw in the top?
[Image: http://www.philcoradio.com/images/phorum...18_040.jpg]
[Image: http://www.philcoradio.com/images/phorum...18_041.jpg]
Not very noticeable now.
Is it perfect? No. Does it suit me? You betcha!
I think this is as far as I am going to go with the 66B cabinet, other than final rubdown and then reattaching the escutcheon.
--
Ron Ramirez
Ferdinand IN
