12-12-2018, 11:11 PM

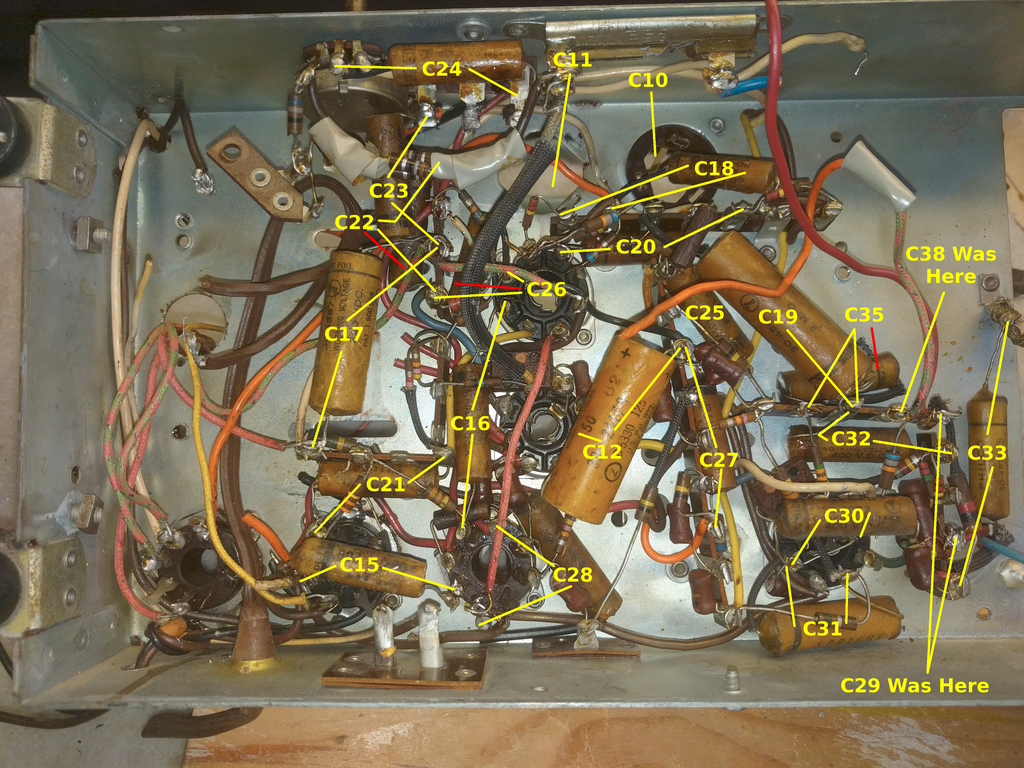

Hi Bill - I started this radio over a year and a half ago and it was my first attempt at a restoration. Since then I've developed a much better documentation process, but I do have quite a few pictures. This one shows the location of the capacitors on the main chassis:
The designations match those on the Sams schematic. The yellow lines point to connections for each cap (I see I missed one end of C19 and both ends of C25) and the red lines (where used) point to the body of the capacitor. In most cases the designation is directly over the capacitor body. I have quite a few detail pictures of the underside of the chassis...let me know if you need anything in particular.
Rich
