01-09-2019, 06:48 PM

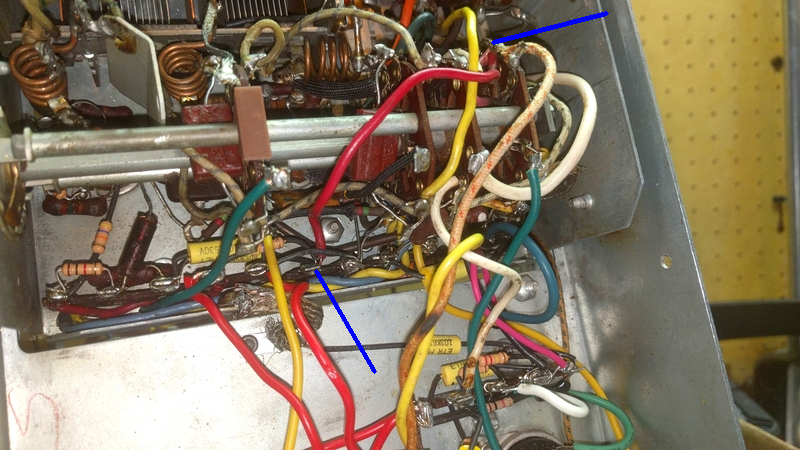

Thanks Bill. In this picture, the red wire is the one in question. I've drawn a blue line to indicate the terminal it's connected to at this end. It's FS4 rear terminal 4. There's also a pink wire on this terminal that goes into the IF can (marked 145 on the Sam's schematic).

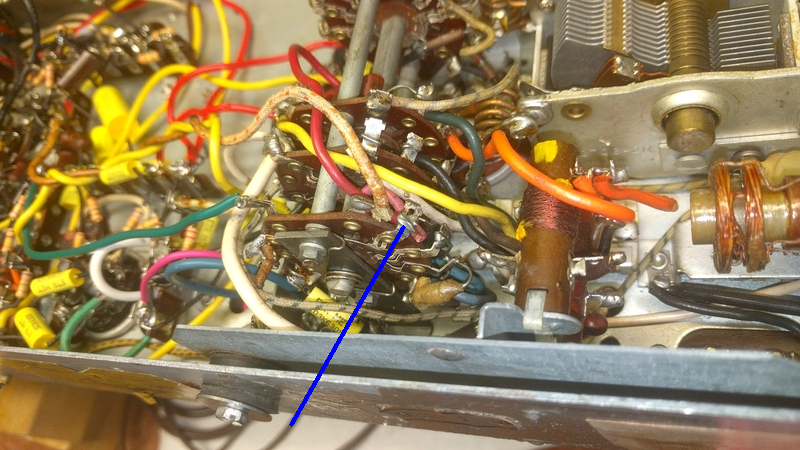

The other end goes to a terminal strip where it connects to C37 and R89. Here is a shot of the entire wire with both ends marked with a blue line.
There are two terminal strips there. The red wire connects to the left-most terminal on the right-most terminal strip in this picture.
Thanks!
Rich
The other end goes to a terminal strip where it connects to C37 and R89. Here is a shot of the entire wire with both ends marked with a blue line.
There are two terminal strips there. The red wire connects to the left-most terminal on the right-most terminal strip in this picture.
Thanks!
Rich
