Philco 570

rfeenstra
Phorum Expert

Posts: 1,190
Threads: 50
Joined: Oct 2017
City: Allendale, MI

04-19-2019, 09:47 PM

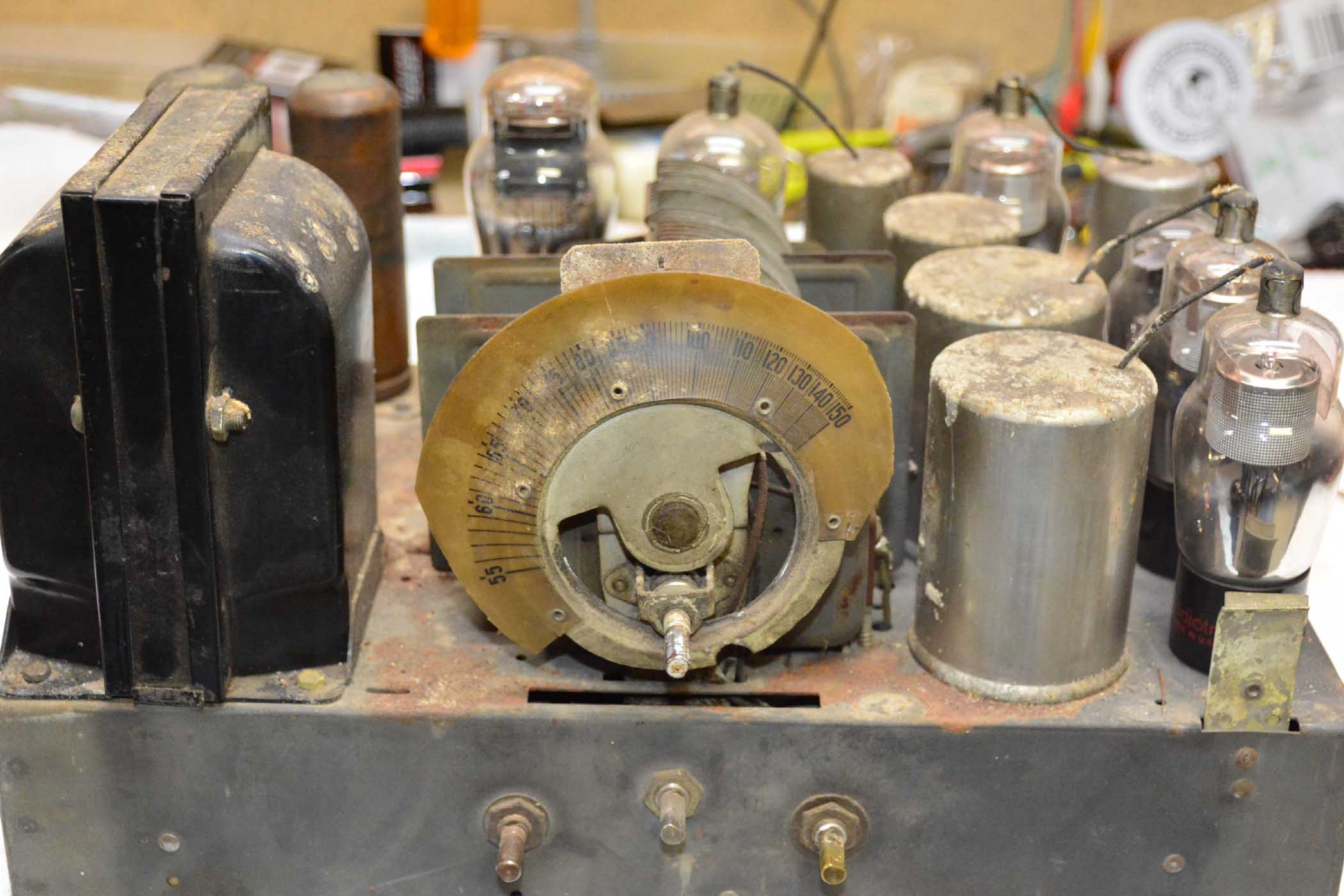

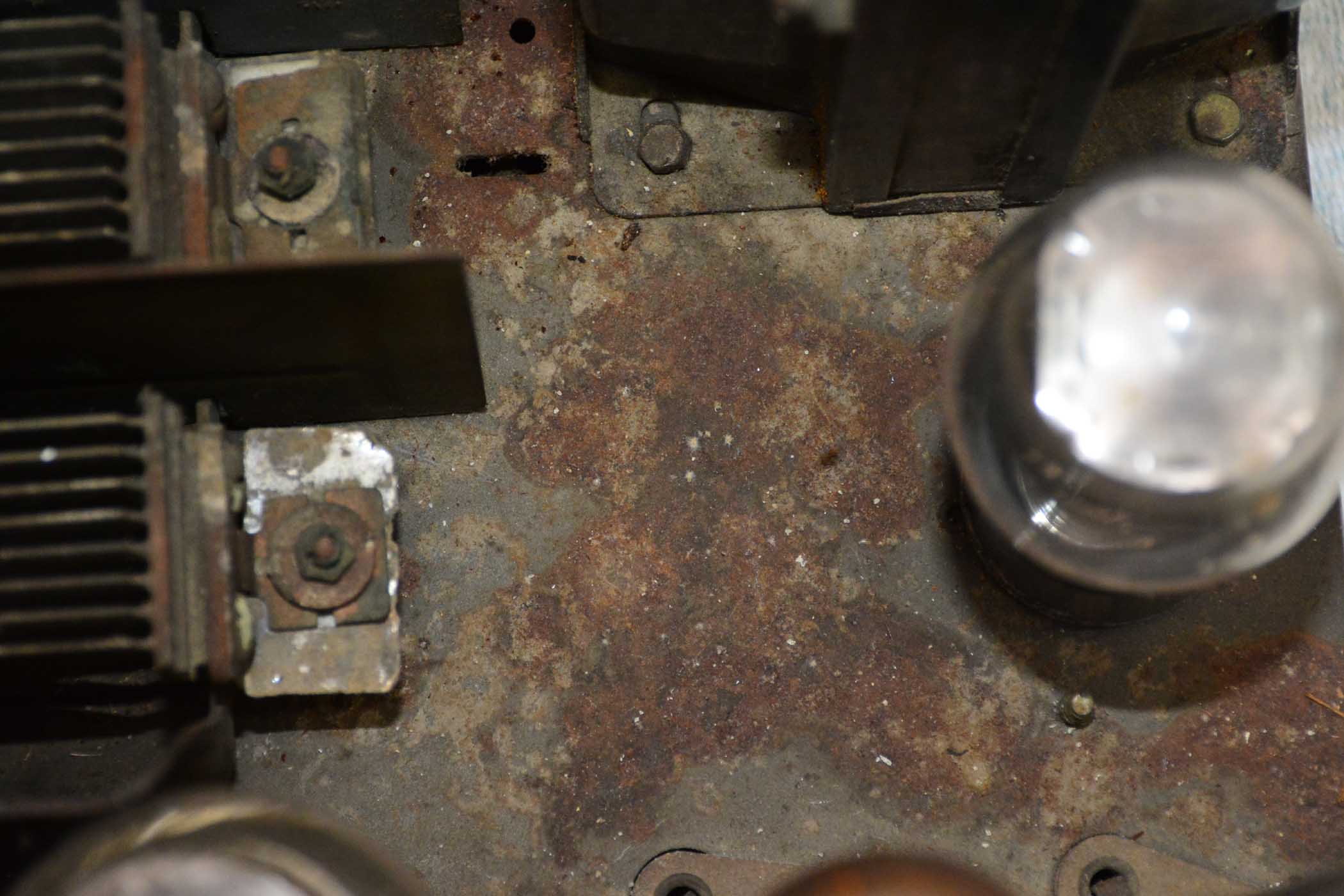

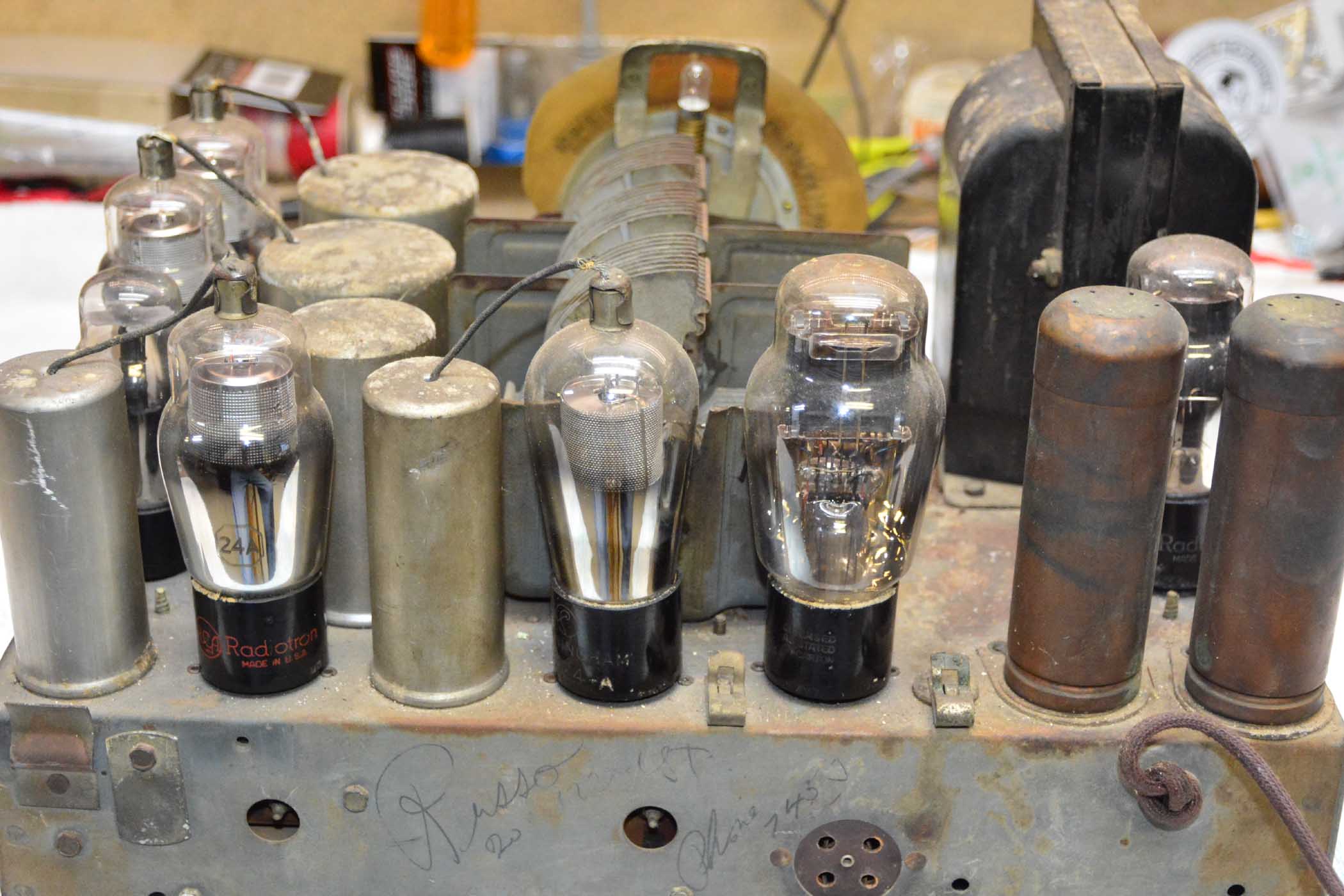

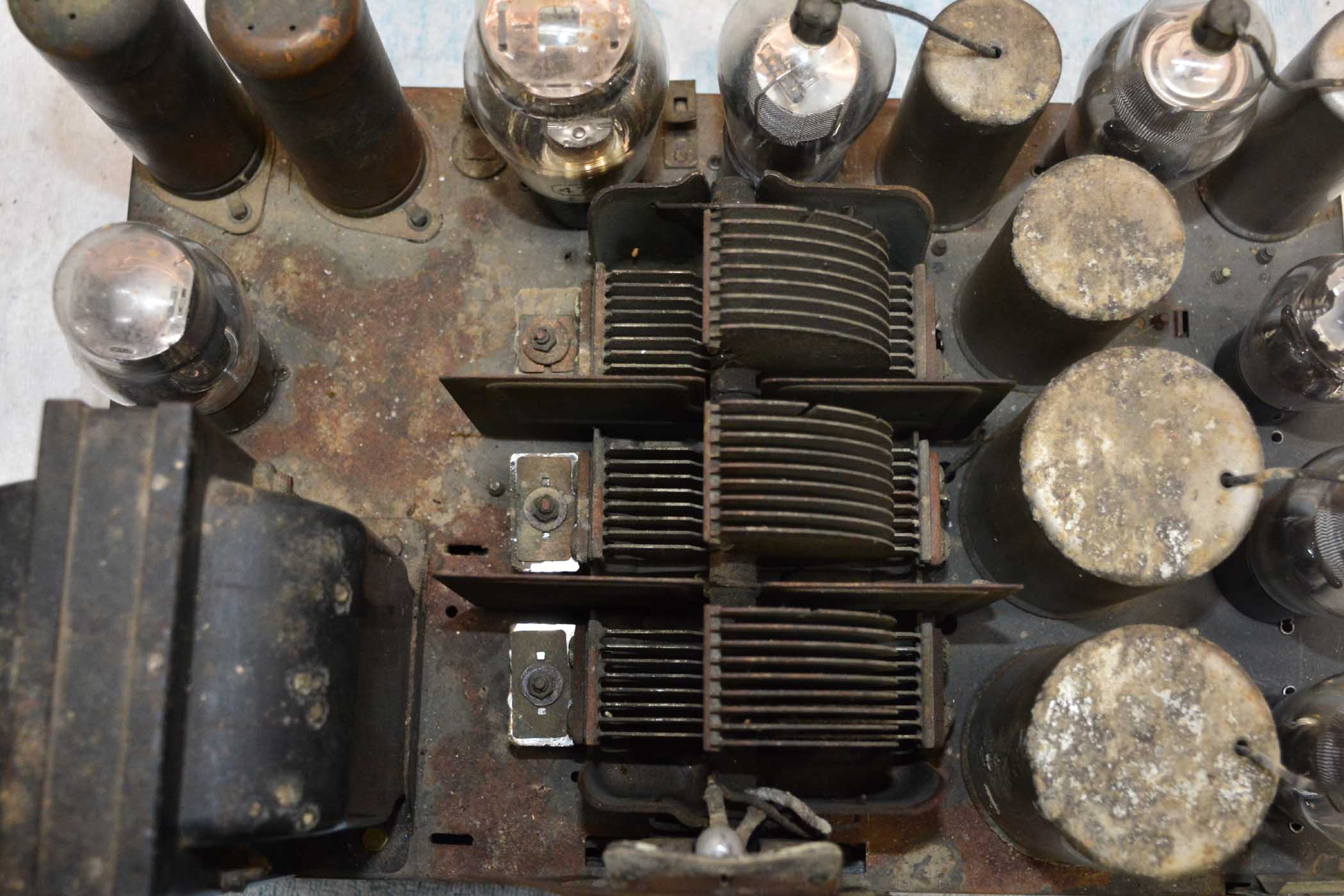

I think this will be my next project - another distorting 70 (like my 70 cathedral) in a grand father clock cabinet. Considering the amount of rust, I think this chassis will be painted. Or, maybe I'll try my hand at plating it with zinc. That sounds like fun, but all of the tube sockets would have to be removed.

Edit: Ron, Nathan, or someone, why are my pics so big? The phorum used to scale them down. Do I need to change the # of pixels per inch?

Attached Files Image(s)

(This post was last modified: 04-19-2019, 10:20 PM by rfeenstra.)
