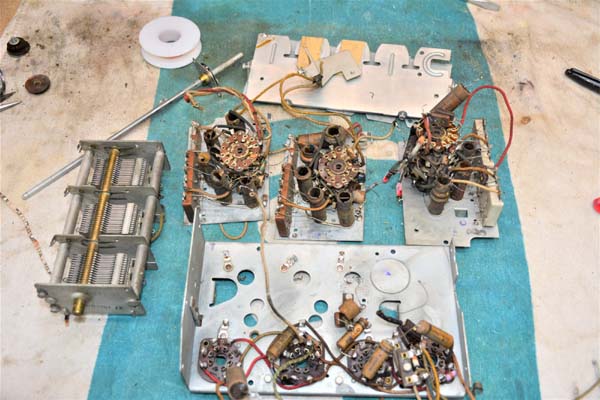

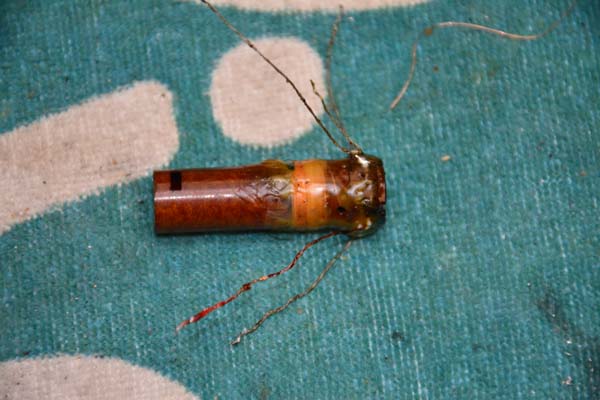

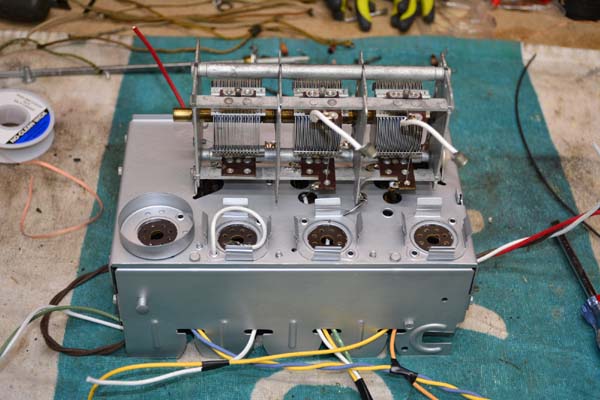

Decided to get the RF chassis out of the way first.  The Police Band oscillator had to be rewound, as expected.  I hope it works!  This chassis is fairly rusty so I decided to paint.  I replaced all resistors and re-stuffed all of the caps.  There are 2 caps between switch wafers that are a real pain. I had to remove the coil/switch assembly in the antenna and RF sections from their associated mounting plate to get at the solder connections.
