So I am finally removing the power transformer and slowly id ing all the wires and trying to correlate to the new one. Radiodaze sent me two separate  transformers because there isn't one with HV ,FIL1 ,FIL2 and rectifier. the little xmfer is 6.4 v @.0.6A for the audio tubes , not sure which ones are the audio tubes???

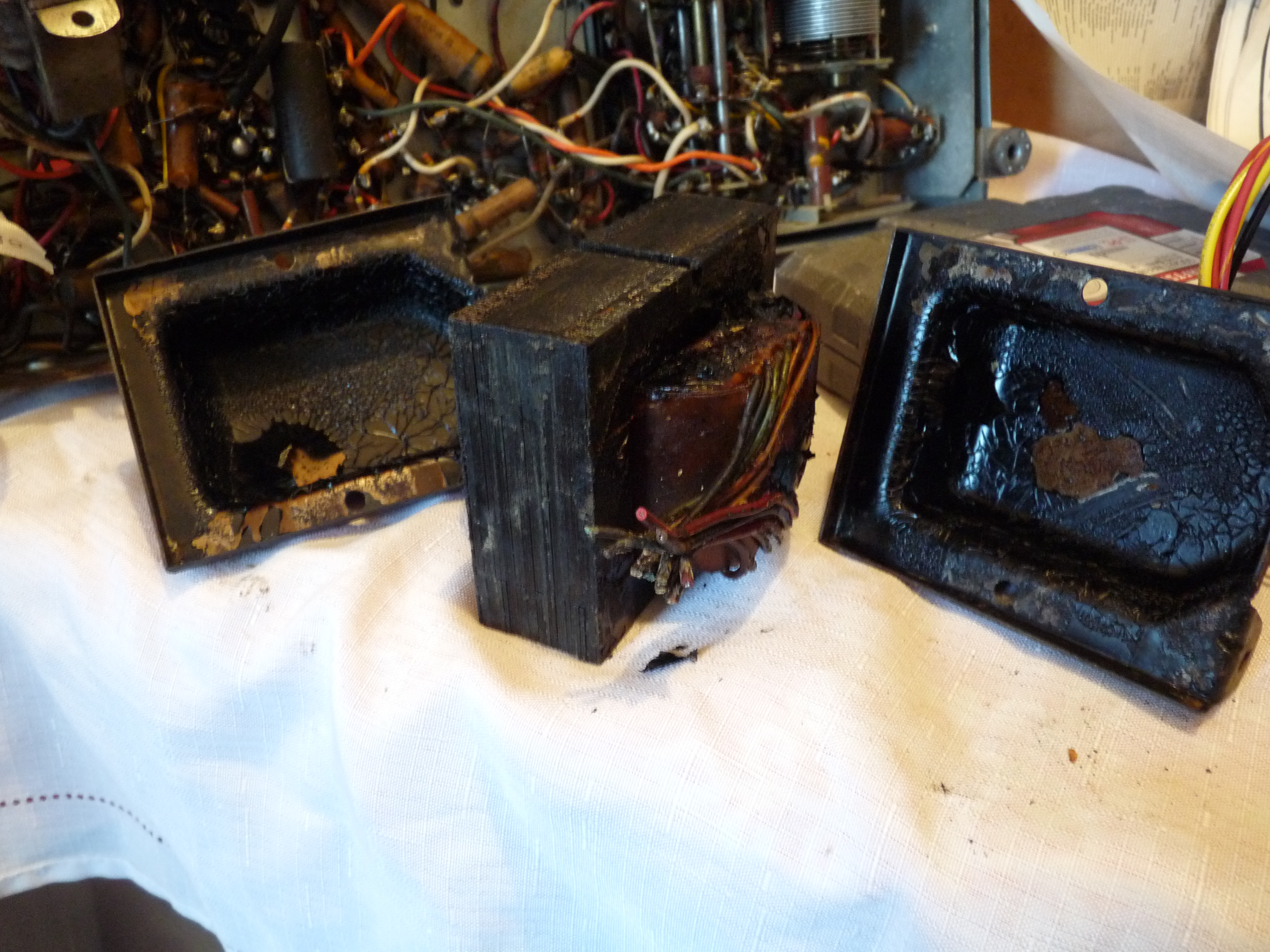

Here is the old transformer

thanks
