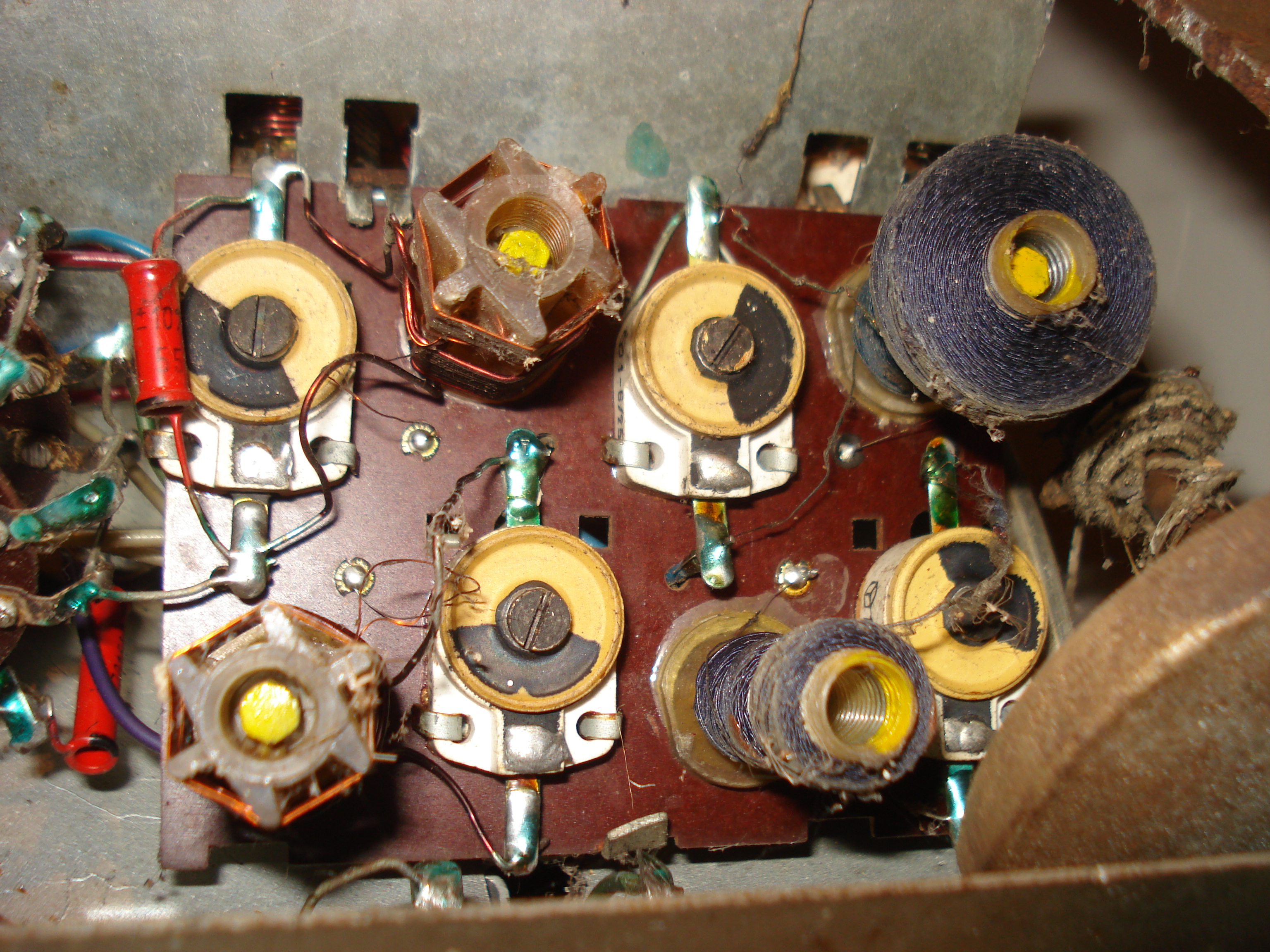

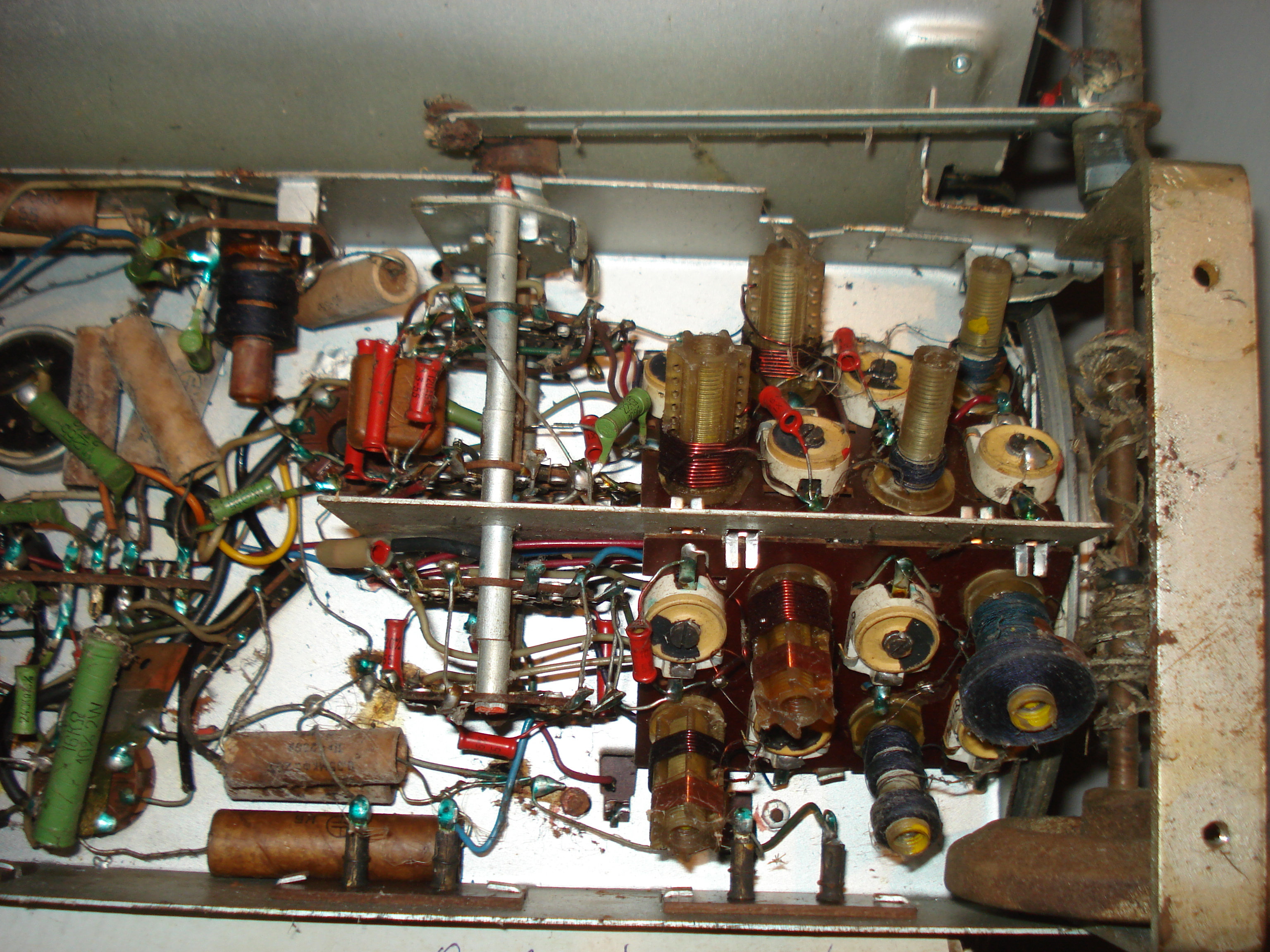

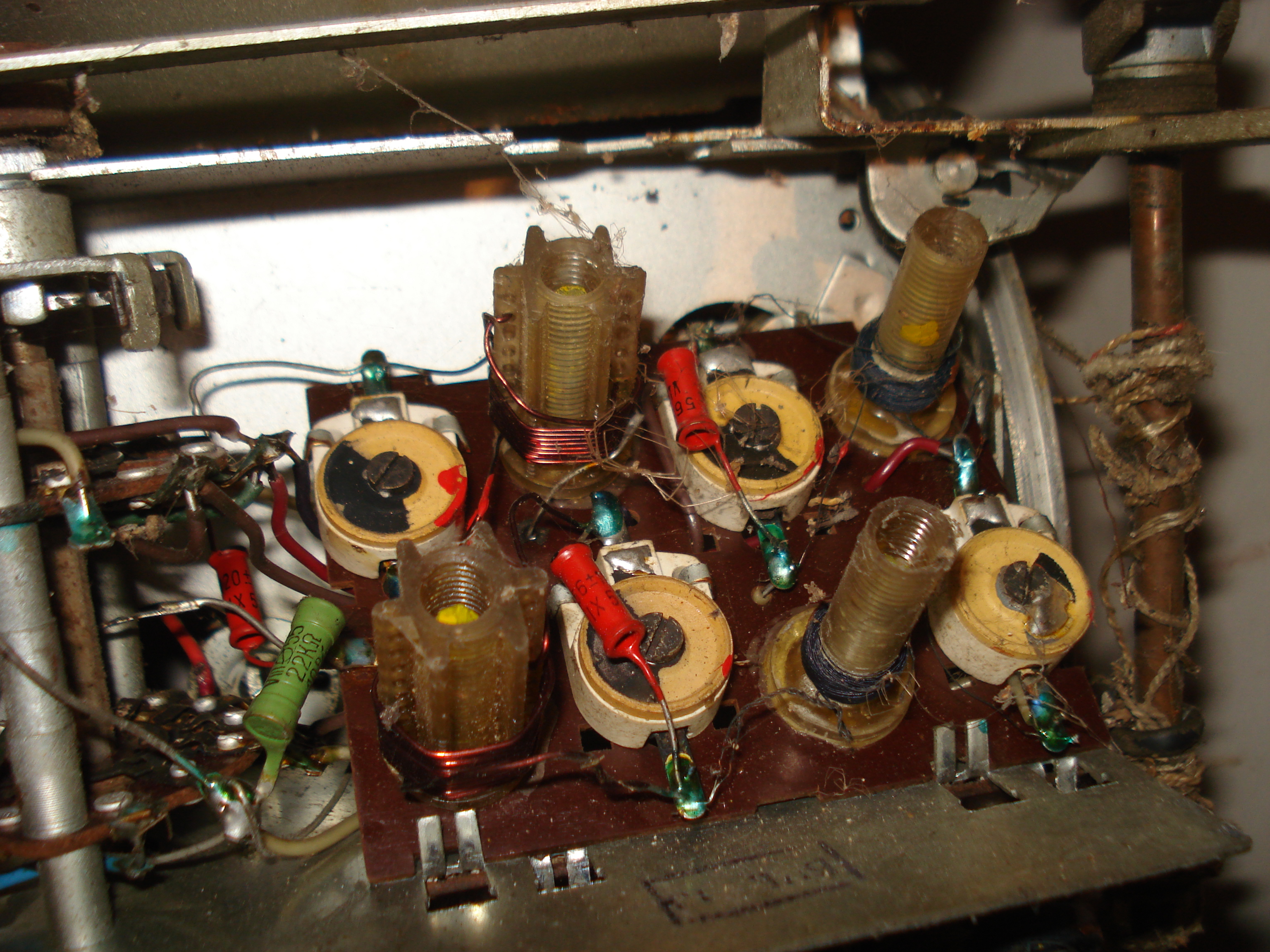

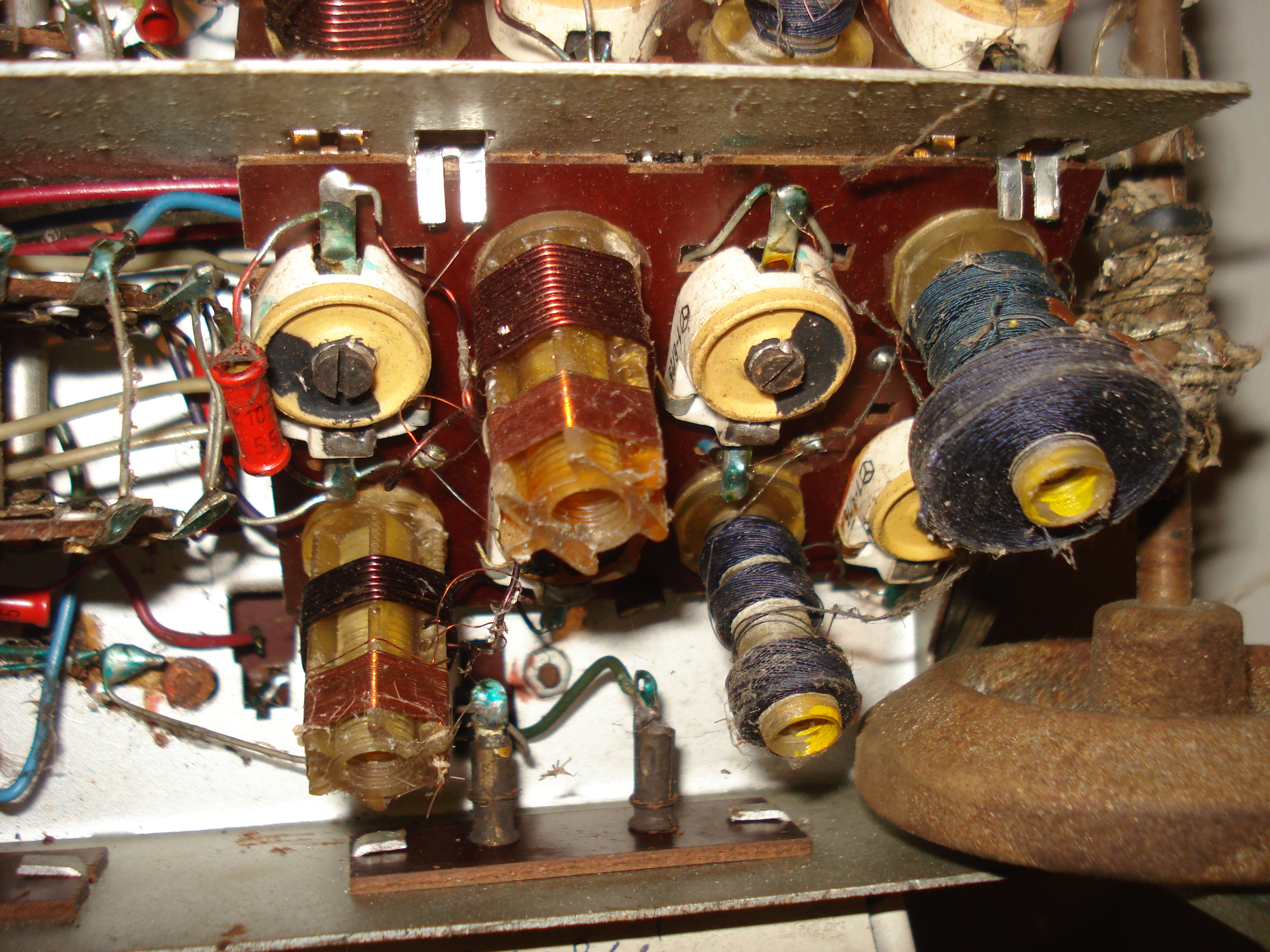

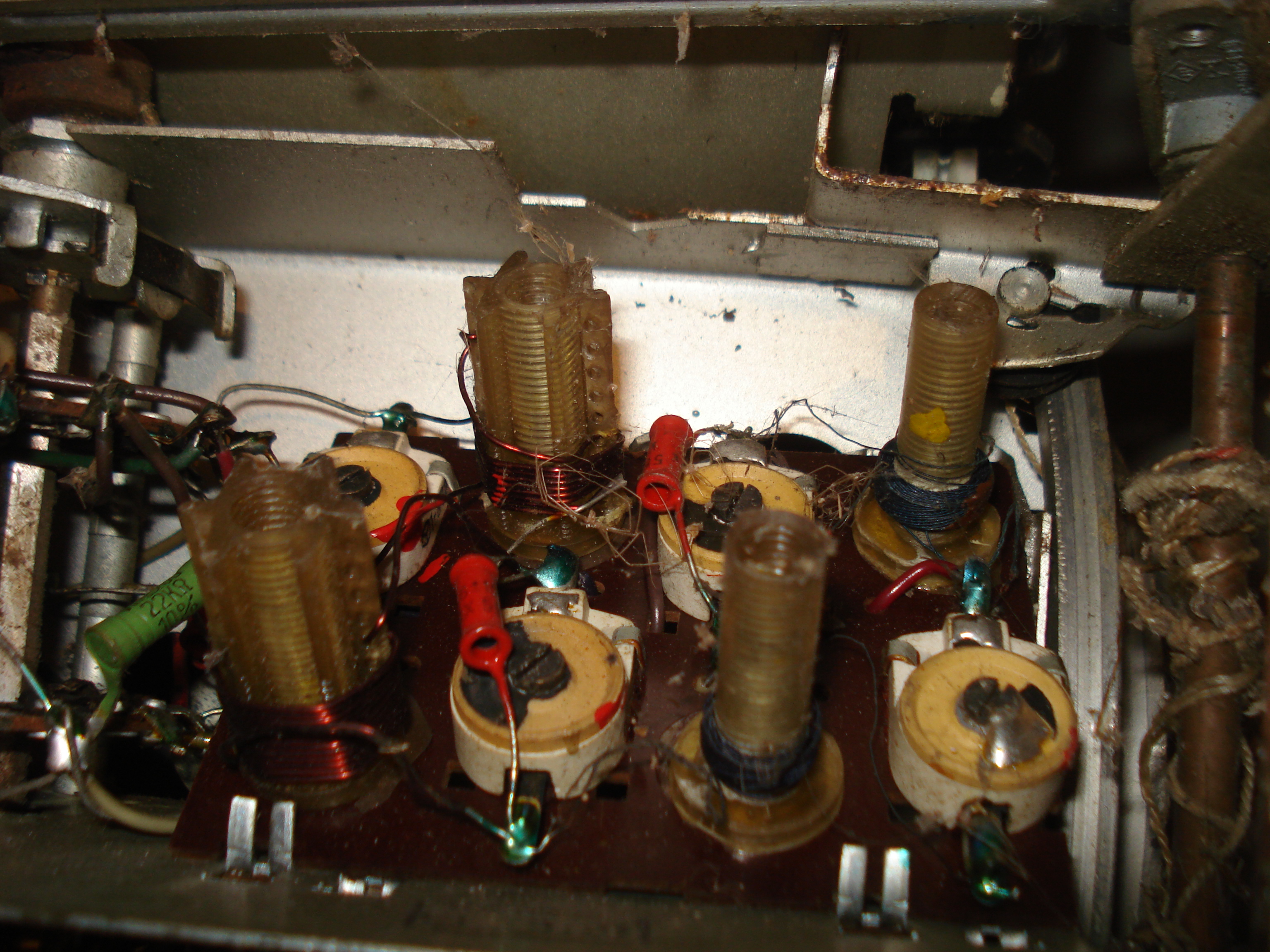

Brenda, your photo is not informative enough, could you take a picture of the chassis in a wide format? I photographed the chassis of my Baltic 52 and want to show the location of the details. The first panoramic photo is a view of the chassis in the high frequency part. At the bottom right is the input circuit board, at the top is the local oscillator circuit board. In other photos, I photographed them at high magnification. I hope this helps you solve the problem.

Sorry, this chassis is not very photogenic because it is a bit dirty. Icon_mrgreen

I have not repaired it yet. Icon_redface

I do not really appreciate the Baltic. Icon_smile
