Power supply design needed from master designer Terry
#17

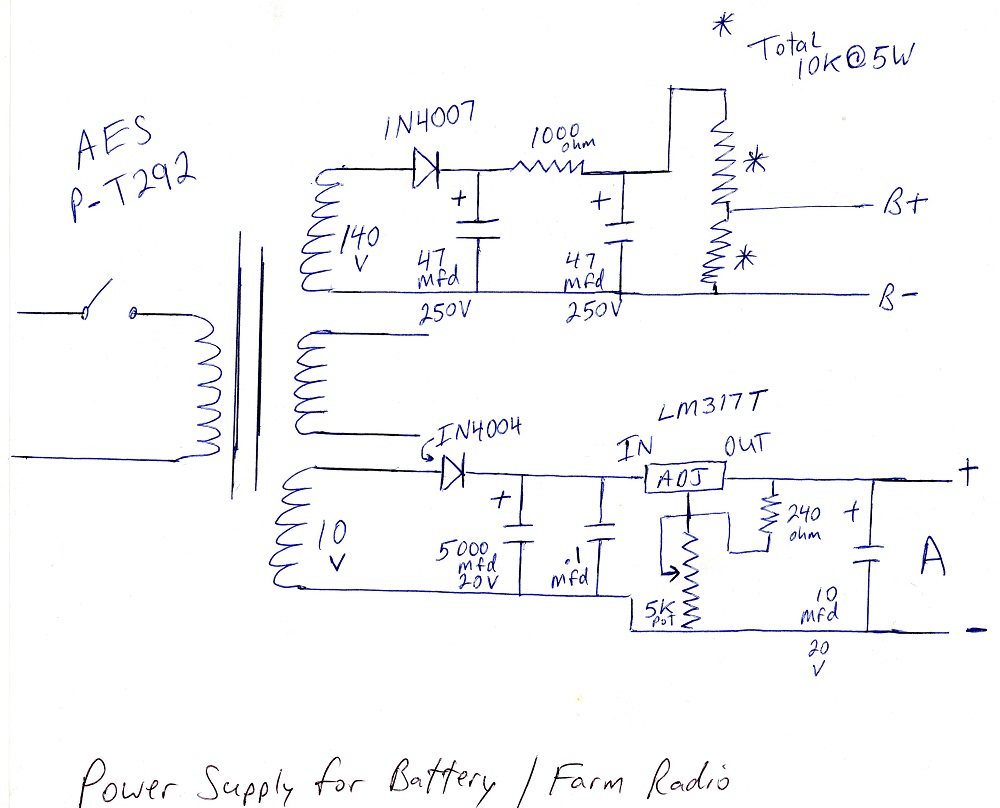

I re-drew the original schematic, and modified it to use on this radio. Above is the standard Power Supply as designed by Terry (Radioroslyn) for use with 90V B supply and 1.5V A supply sets. I used this design on my Philco model 39-70

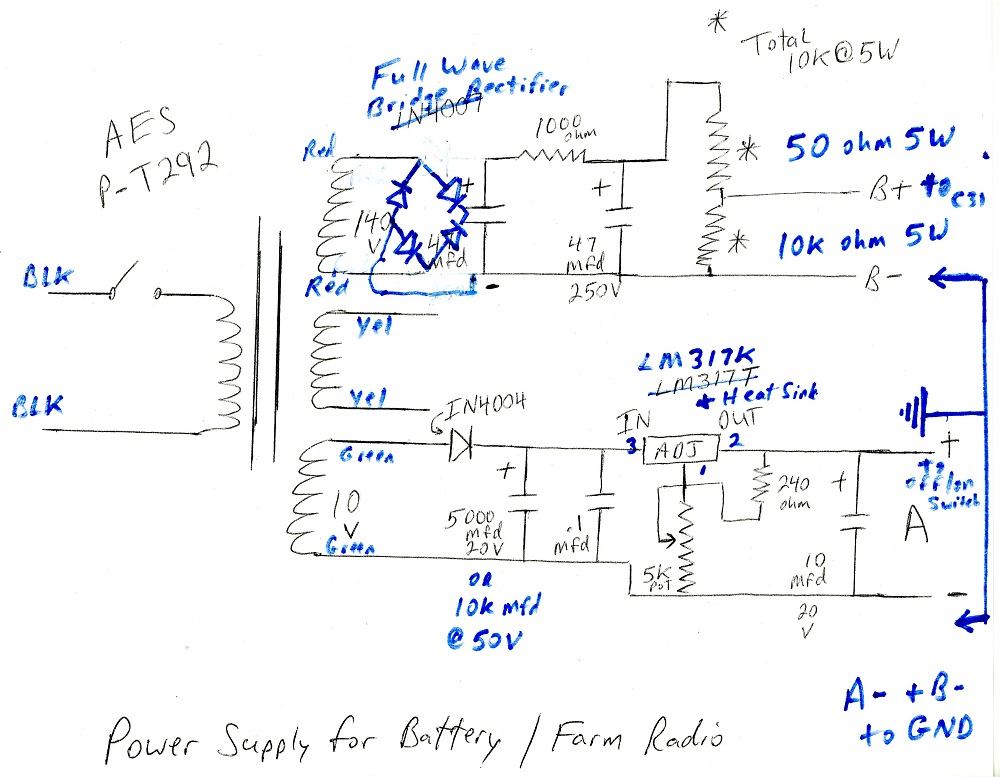

Below is the modified design for this Silivertone using a vibrator power supply:



Never said I was good at drawing  Icon_lol

Greg V.
West Bend, WI
Member WARCI.org
