Cannot Adjust an IF Transformer’s cores

jrblasde
Member

Posts: 80
Threads: 6
Joined: Jan 2024
City: Tulsa State, Province, Country: Oklahoma

#11

07-30-2024, 08:31 PM

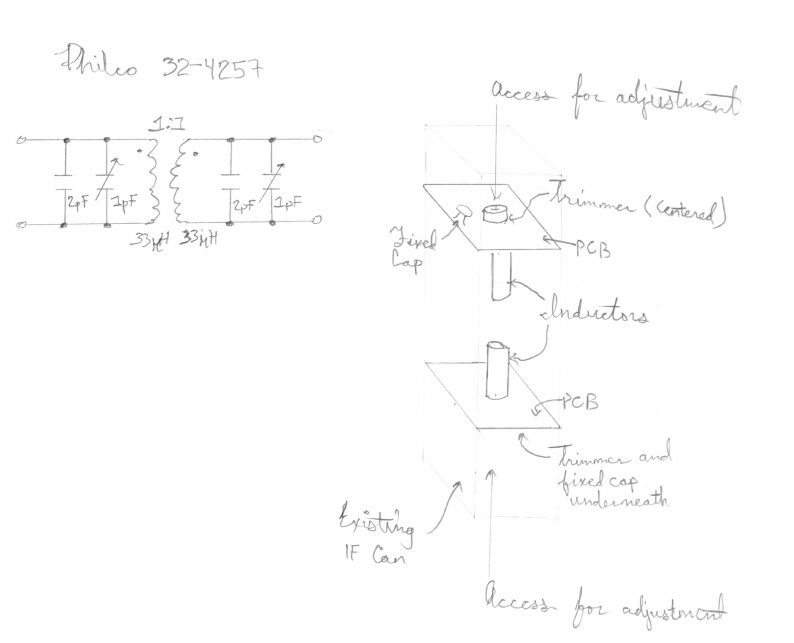

I'd be happy to keep everyone updated. To put words into a picture, here is a sketch of a schematic and a physical depiction of what I have described. I believe I will give it a go.

Attached Files Image(s)
