current project a Sony CF-320 am/fm cassette
radiorich
Super Moderator
******
Posts: 3,186
Threads: 226
Joined: May 2008
City: Omak State, Province, Country: WA
#9

09-12-2026, 10:52 PM
Hello Guys,
Thanks to Egg from ARF forum he posted a download for the factory sony manual.

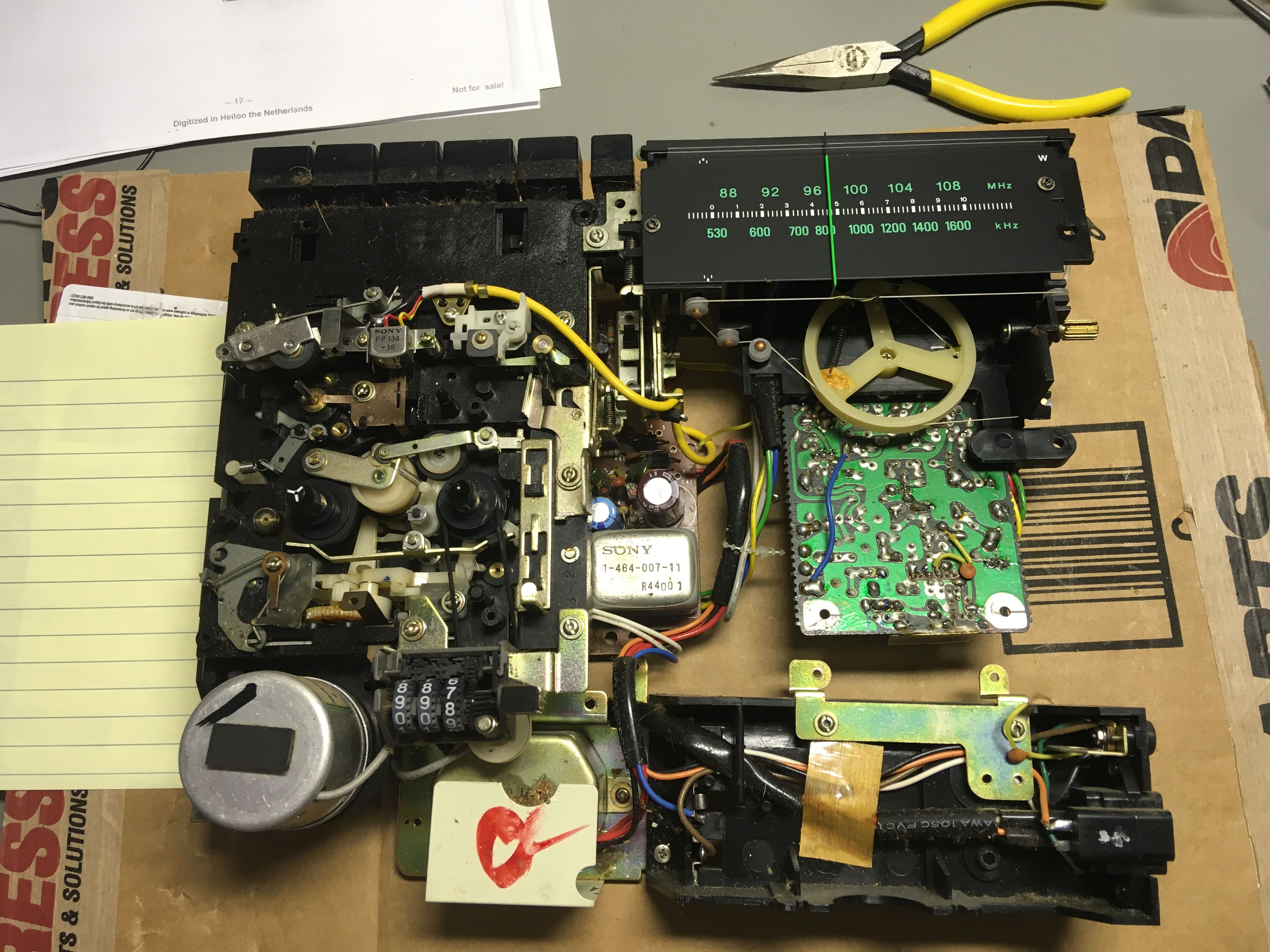

Here is the current state of that radio on my workbench .
I had to strip down to service the tape deck and clean the cabinet .

Sincerely Richard
