Quick Question about a Schematic..
Jamie
Phorum Expert
*****
Posts: 761
Threads: 56
Joined: Jul 2013
City: Kentucky
#24

01-28-2014, 10:47 AM

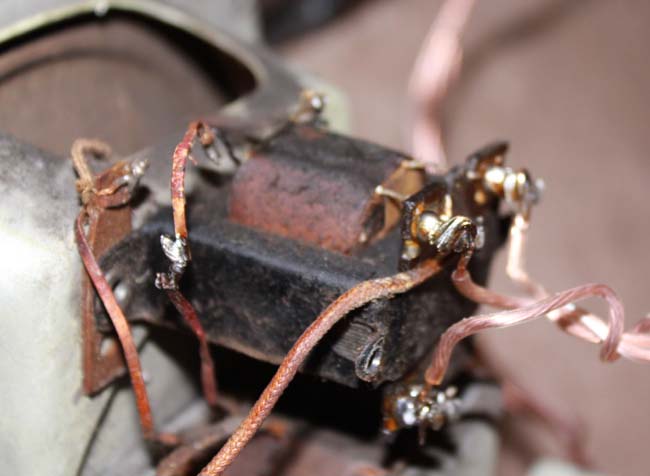

This speaker had an accessory pillow speaker attached when I bought this radio. I removed it, and soldered the leads together. I just mention this to explain the repaired wiring...

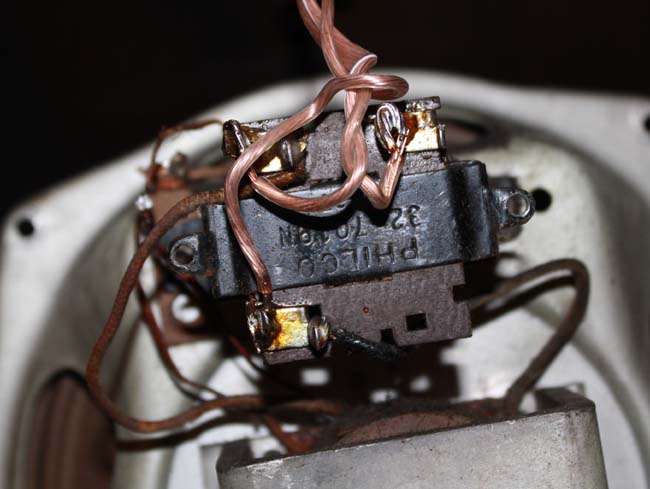

There is a part number on the transformer and it matches the number on the schematic parts list, which makes me think this is the original speaker for the radio.
The artist formerly known as Puhpow! 8)
