Philco PT 29 line resistor
Bill Bacco
Member
***
Posts: 94
Threads: 9
Joined: Feb 2013
City: Monroeville, PA
#16

01-21-2021, 11:12 PM
Sounds like you have a short some where. Did you measure the line current? Heaters should be drawing about 150ma. Not sure what you mean by ground lug of 35Z3. I don't believe any of these resistors should be grounded. Do you mean the plate? Have you tested the tubes?
Find
Philcofan
Junior Member
**
Posts: 36
Threads: 14
Joined: Apr 2012
City: Greenville, NY
#17

01-22-2021, 07:02 PM

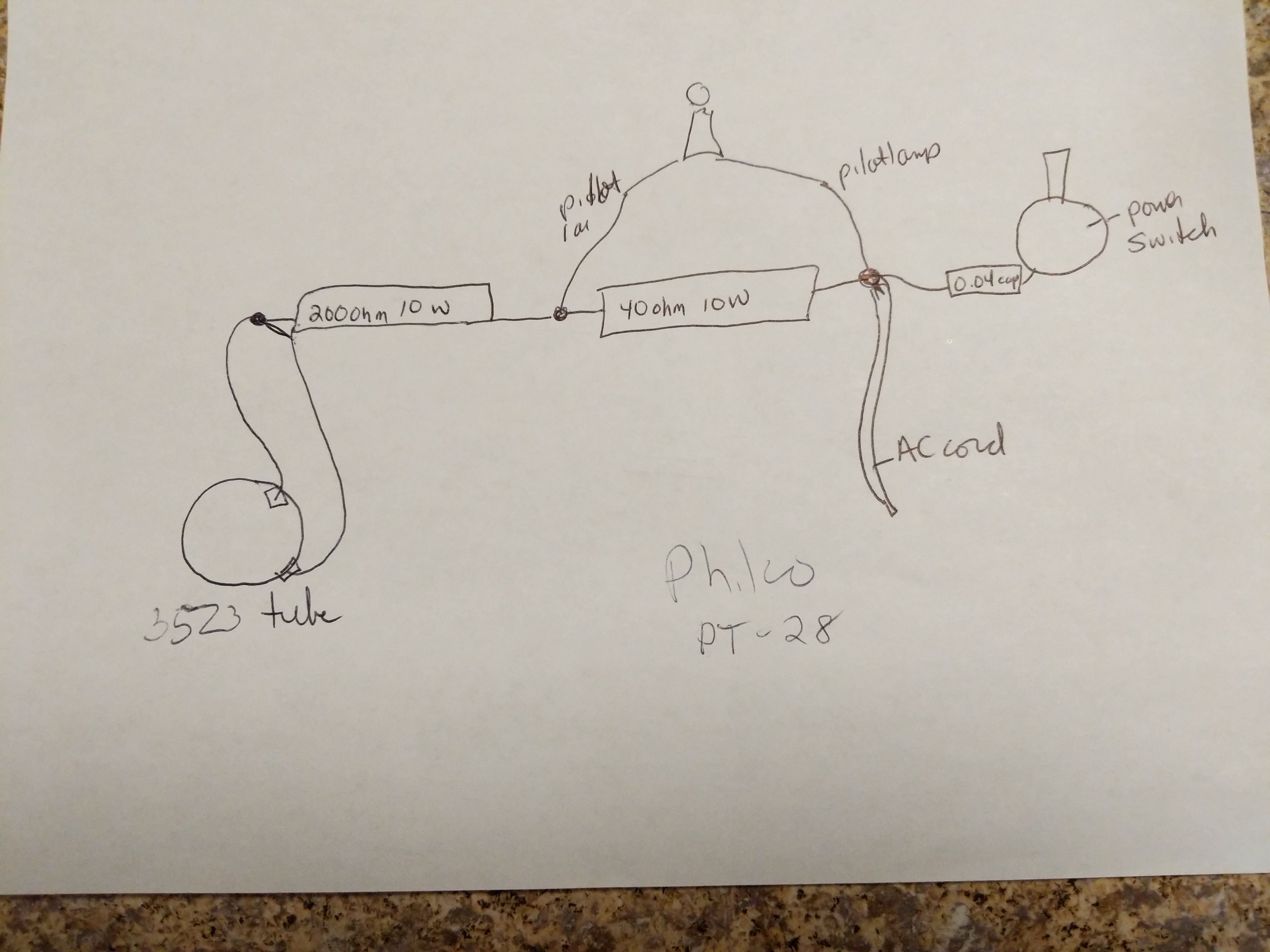

Here is how I wired it. I made sure when I took the old resistor off I kept the wires connected to the lugs together. I have not tested the tubes yet.

Thoughts ?


Attached Files Image(s)

Find
Bill Bacco
Member
***
Posts: 94
Threads: 9
Joined: Feb 2013
City: Monroeville, PA
#18

01-22-2021, 09:51 PM
That does not look correct. I believe the 35Z3 plate (pin 2) should connect between the two resistors.
Find
