Wanted to share with you guys my newest Adoption. It is supposed to work, it was rebuilt about 15 years ago but I am not going to try it until I check out the chassis, can't say I trust the person who rebuilt it. Thought you guys would be interested in seeing it. Anyone know anything about this radio? Thanks..
[Image: http://i1348.photobucket.com/albums/p721...7oenh1.jpg]
[Image: http://i1348.photobucket.com/albums/p721...srmttj.jpg]
(This post was last modified: 06-15-2015, 02:30 AM by Warren.)
Posts: 7,295
Threads: 268
Joined: Dec 2009
City: Roslyn Pa
I know that the back isn't standard issue.
Terry
Posts: 2,573
Threads: 337
Joined: Jun 2013
City: lawrenceville nj
looks nice to me
but why the inlay near top ?
also looks like an arrow head in grill pointing to dial ? shadow?
back cover really needs to go
sam
Some day, and that day may never come, I will call upon you to do a service for me. But until that day, accept this justice as a gift
mafiamen2
Posts: 16,476
Threads: 573
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
Not shadow, I think it is intentional
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 736
Threads: 26
Joined: Jun 2013
City: Hayward, California
The inlay your talking about is at the top of the grill where the speaker cutout is? There is one at the bottom also. Thought it was made that way. yea looking at the back it is an add on by someone isnt it.
Posts: 2,118
Threads: 112
Joined: Jun 2010
City: Medford OR (OR what?)

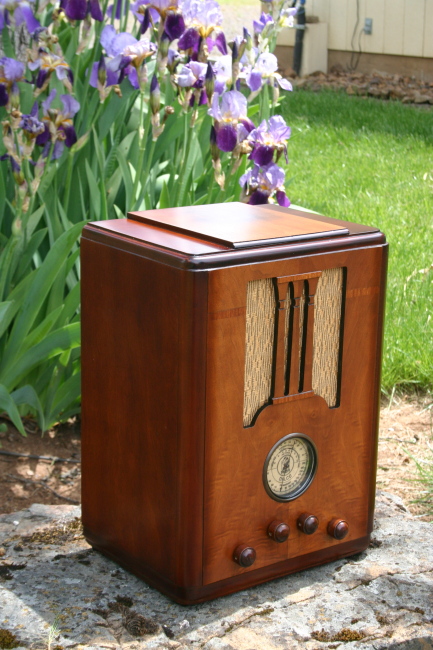

I have to 6V version. With it's vibrator power supply it only draws 9W.
"I just might turn into smoke, but I feel fine"
http://www.russoldradios.com/
Posts: 736
Threads: 26
Joined: Jun 2013
City: Hayward, California
Very Nice... it seems on yours it is darker around the edges but mine seems to be close to the same shade all over. Phlogiston, or anyone else for that matter, do you know where I can get a schematic for this radio? Thx for any help.
(This post was last modified: 06-15-2015, 06:06 PM by Warren.)
Posts: 2,118
Threads: 112
Joined: Jun 2010
City: Medford OR (OR what?)
Look for the schematic on Nostalgia Air under United Moters Service - Delco.
http://www.nostalgiaair.org/Resources/
Are you sure of that model number?

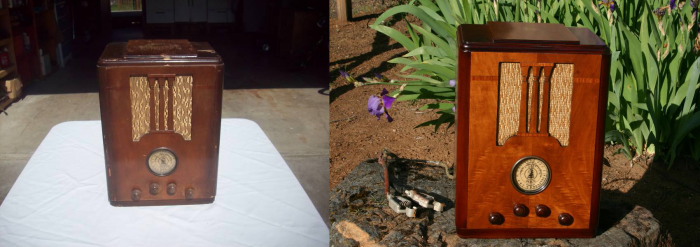

Before and after refinishing picture of mine:
I added the shading to match the original finish.
"I just might turn into smoke, but I feel fine"
http://www.russoldradios.com/
(This post was last modified: 06-16-2015, 10:32 AM by Phlogiston.)
Posts: 736
Threads: 26
Joined: Jun 2013
City: Hayward, California
(06-16-2015, 10:31 AM)Phlogiston Wrote: Look for the schematic on Nostalgia Air under United Moters Service - Delco.
http://www.nostalgiaair.org/Resources/
Are you sure of that model number?
Before and after refinishing picture of mine:
I added the shading to match the original finish.
OK, I will look on nostalgiair. No, not 100% sure of the model number, that is what someone wrote on the back of the radio. Your radio looks real nice. I thought mine was the original finish, doesnt look like anyone has done anything to the cabinet, but like i say the edges arent really darker than the front like yours. Looks nice with the darker edges.
(This post was last modified: 06-16-2015, 02:12 PM by Warren.)
Posts: 262
Threads: 27
Joined: Jan 2010
City: Rochester, NY
That back will make it a toaster, plus the holes are at the bottom of the cover.
Nice looking sets
Posts: 2,118
Threads: 112
Joined: Jun 2010
City: Medford OR (OR what?)
(06-16-2015, 02:10 PM)Warren Wrote: (06-16-2015, 10:31 AM)Phlogiston Wrote: Look for the schematic on Nostalgia Air under United Moters Service - Delco.
http://www.nostalgiaair.org/Resources/
Are you sure of that model number?
Before and after refinishing picture of mine:
I added the shading to match the original finish.
OK, I will look on nostalgiair. No, not 100% sure of the model number, that is what someone wrote on the back of the radio. Your radio looks real nice. I thought mine was the original finish, doesnt look like anyone has done anything to the cabinet, but like i say the edges arent really darker than the front like yours. Looks nice with the darker edges.
It might be the original finish. They weren't necessarily all the same or finished at the same time by the same guys.
"I just might turn into smoke, but I feel fine"
http://www.russoldradios.com/
