My new RCA 6T-7 tombstone
Posts: 380
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
Posts: 1,475
Threads: 69
Joined: Nov 2012
City: Kansas city, MO.

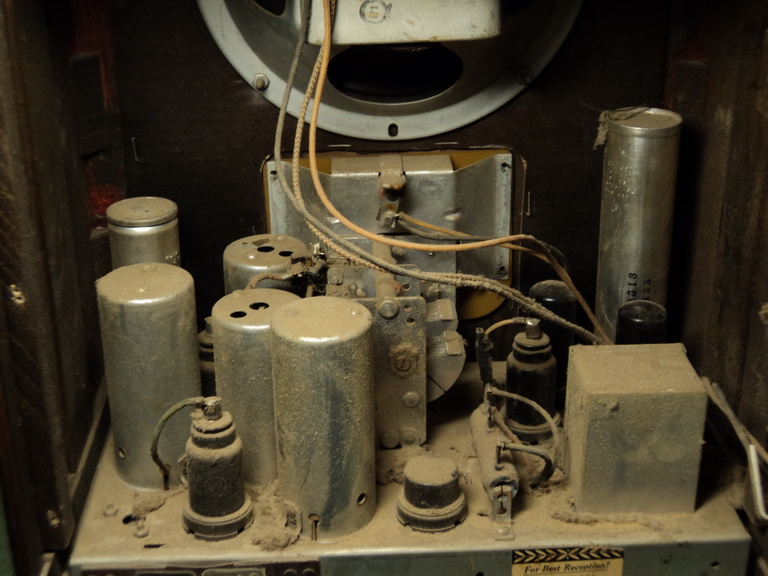

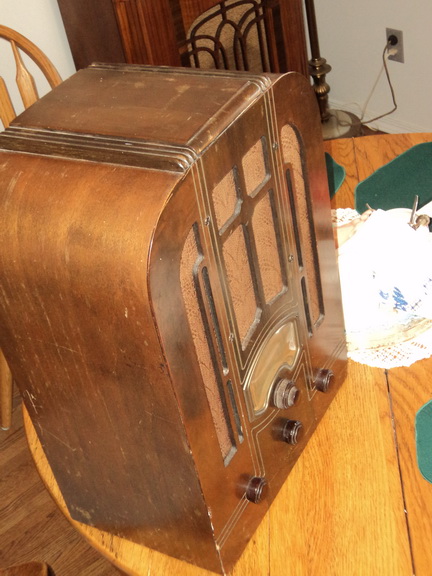

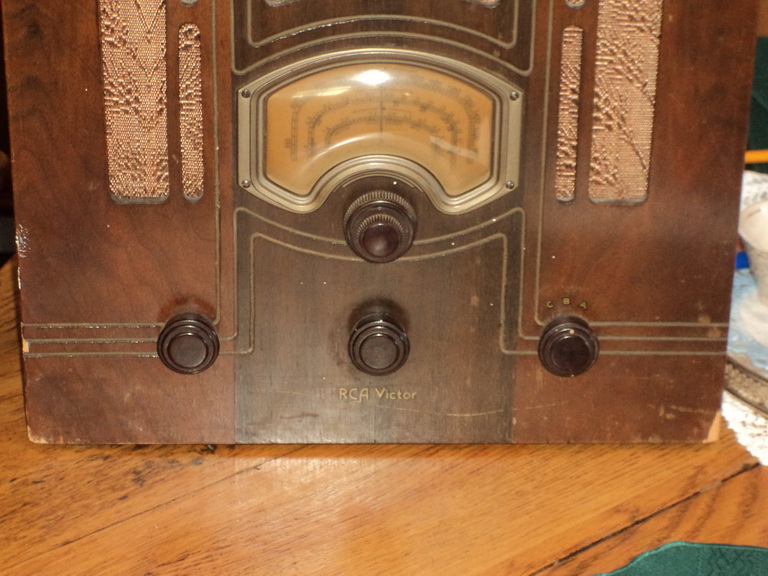

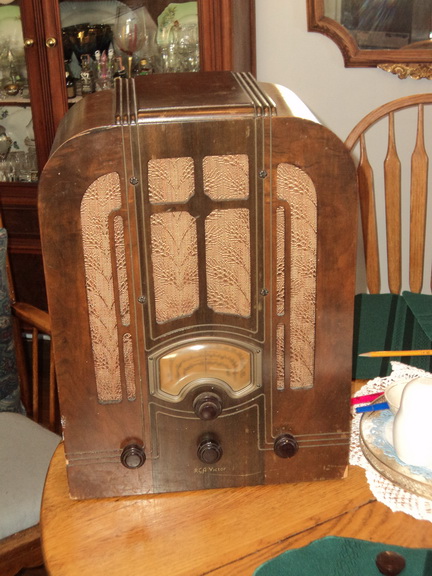

Good looking cabinet Dan. The chassis looks good also, no rust. Does the cabinet have photo finish on the face?
Posts: 16,533
Threads: 573
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
Them RCAs are a good radio. This one is a real nice one.
Myself I want a 140. It started the Soviet superhet production.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 3,160
Threads: 59
Joined: Apr 2011
City: Lexington, KY

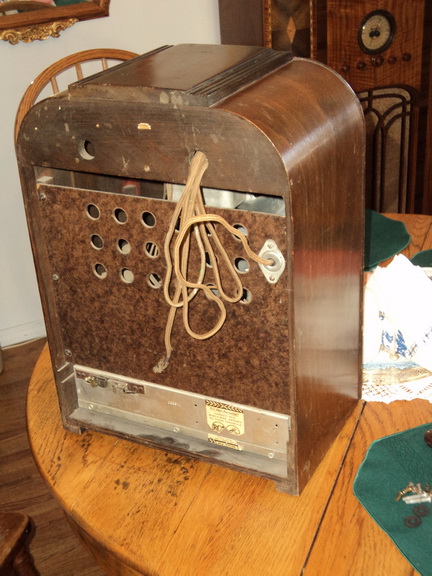

I may be wrong, but I don't think the back is original to that set. You don't really see many tombstones with a back like that. I looked at a couple of other RCA 6T's and didn't see any evidence of a back, BUT, if someone did actually make that back, they did one heck of a nice job. Good score
John KK4ZLF
Lexington, KY
"illegitimis non carborundum"
Posts: 4,460
Threads: 423
Joined: Jun 2011
City: Boston
State, Province, Country: Massachusetts
As mentioned, dusty not rusty. Rather deal with the dust. You will enjoy the set when done, pretty good player.
Paul
Tubetalk1
Posts: 380
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
Right now I am working on the chassis , and I didn't have a good look at the cabinet but I think it is real wood.
That back looks like it was there from the factory.
I have the RCA red books ,but I could not find the schematics listed ,,for this model. the ones I got from Radio museum are a little blurry , but I am wadding through it.
Thanks for the comments,,,,,, Dan
Living in Calgary Alberta
Posts: 765
Threads: 147
Joined: Aug 2012
City: Dallas, TX
Nice radio Dan , I like the wheat pattern grill cloth on that model design.
Posts: 4,908
Threads: 54
Joined: Sep 2008
City: Sandwick, BC, CA
Dan;
I think that is a U.S built RCA that someone imported, the Canadian built ones from Montreal always had a power transformer, an Ontario Hydroelectric Power Commission decal, and also a brass plate on the chassis. It may be an AC/DC set, a 32 volt set, or a DC mains only set, but probably an AC/DC if it has a rectifier tube and a large dropping resistor.
Regards
Arran
Posts: 380
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
I am having some problems reading the schematics from Radio museum. they are just not clear enough.. I also have the RCA red books and I can't find it in there.
The console model of this radio is a model C6-8 and I can't find it either.
The problem is the electrolytic caps,, the numbers are just too blurry.
If anyone has the schematics please let me know
Thanks Dan.
Living in Calgary Alberta
Posts: 1,475
Threads: 69
Joined: Nov 2012
City: Kansas city, MO.
I don't know if this will help. Its a 96T7 schematic I found online.
http://oldtech.net/RCA/VolII/617-C.gif
Posts: 380
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
Posts: 157
Threads: 12
Joined: Dec 2012
City: Seattle, WA

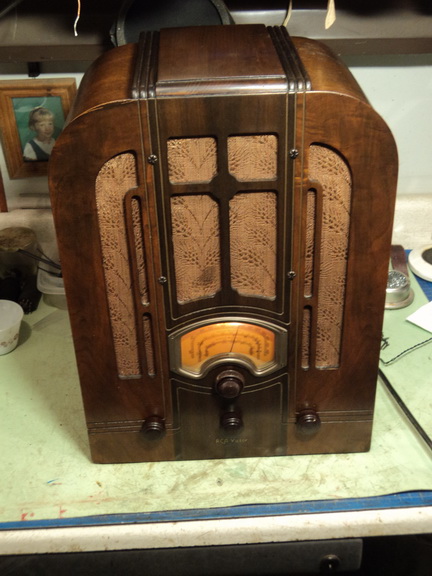

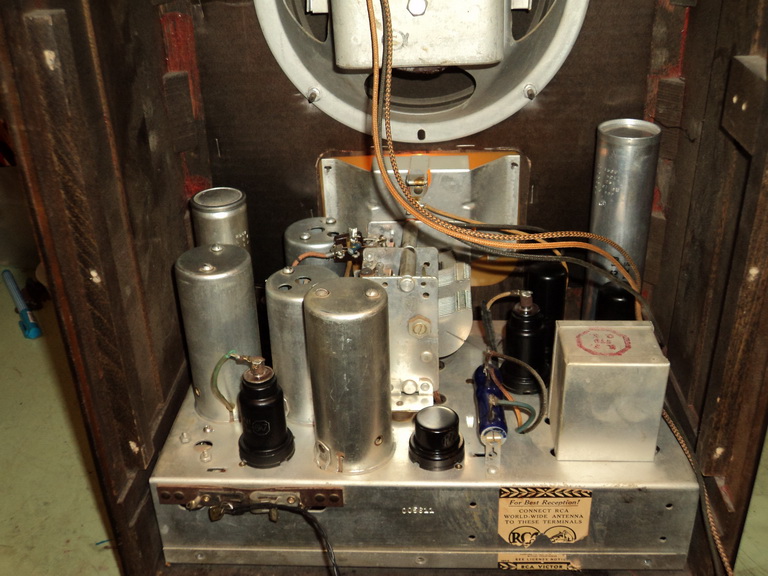

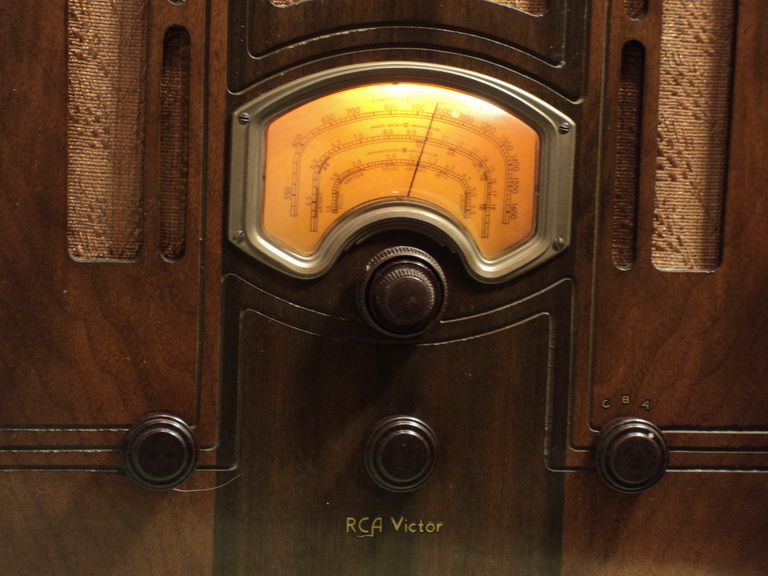

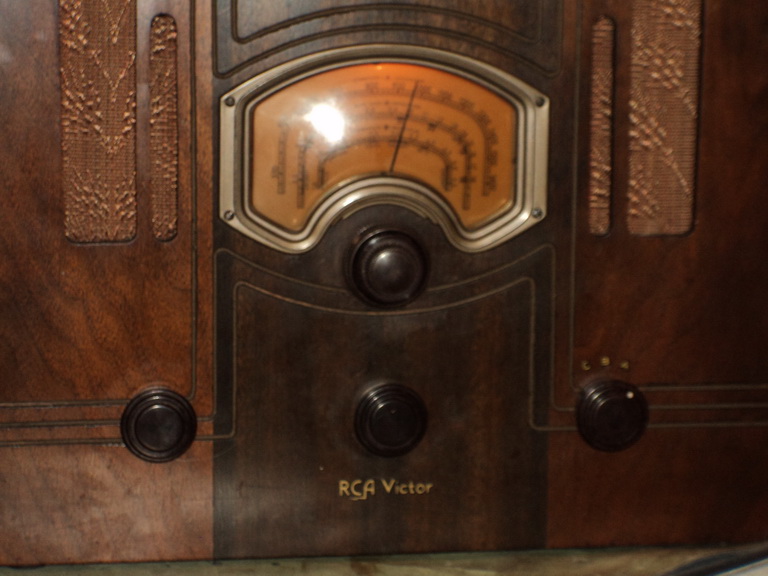

Beautiful job, Dan!
A quick look at the schematic shows the back is factory original, as it's even mentioned on the schematic, due to the interlock cord.
However, why it has an interlock cord is a bit of a mystery to me. Although it is a series filament radio, it does not appear that either side of the power line is attached to the chassis. C2 (0.01uF) isolates the chassis from the radio neutral.
Did you get your answer on the electrolytic cap sizes? C37 is 24 uF and C38 is 16 uF. Stock number 11821 on the parts list.
(This post was last modified: 02-07-2016, 02:18 AM by palegreenthumb.)
Posts: 765
Threads: 147
Joined: Aug 2012
City: Dallas, TX
Nice job Dan, put it on display and start on another
Posts: 380
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
I did get the caps figured out and I installed a phono jack, and as Fred Taylor says 'put it on the shelf and start another''.
It is starting to warm up here in Alberta so I can't wait to get into the garage and get started.. I have 8 cabinets to do work on..
Living in Calgary Alberta
Posts: 2,573
Threads: 337
Joined: Jun 2013
City: lawrenceville nj
(02-08-2016, 11:40 AM)Dan Walker Wrote: I did get the caps figured out and I installed a phono jack, and as Fred Taylor says 'put it on the shelf and start another''.
It is starting to warm up here in Alberta so I can't wait to get into the garage and get started.. I have 8 cabinets to do work on..
dan
what`s warm to you
when the temp goes to the positive side of the thermometer
sam
Some day, and that day may never come, I will call upon you to do a service for me. But until that day, accept this justice as a gift
mafiamen2
