Philco Cabinet ID
vecher
Phorum Expert
*****
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale State, Province, Country: PA
#1

01-31-2017, 11:22 AM
Can anyone ID this Cabinet. I believe its a Philco but not sure whats it for...

Looks brand new. A little dusty.. No markings on it ...


[Image: http://i292.photobucket.com/albums/mm38/...aym7wh.jpg]


Thanks
Skip...
Find
morzh
Odobenus rosmarus
*****
Posts: 15,819
Threads: 554
Joined: Oct 2011
City: Jackson, NJ
#2

01-31-2017, 11:23 AM
I think it is akin to 49-500.

http://www.philcoradio.com/gallery/1949.htm#c

http://www.ebay.com/itm/Vintage-1949-Phi...SwZQRYf~Od

And here's a chassis for it, though a bit expensive:

http://www.ebay.com/itm/Philco-Transiton...Swo4pYf9C7
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
(This post was last modified: 01-31-2017, 11:26 AM by morzh.)
Find
Radioroslyn
Phorum Expert
*****
Posts: 7,285
Threads: 268
Joined: Dec 2009
City: Roslyn Pa
#3

01-31-2017, 03:42 PM
46-200I
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
Find
Ron Ramirez
Silent Key
*****
Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand State, Province, Country: Indiana
#4

02-01-2017, 09:14 PM
Mike and Terry are correct; and in addition, it could be any of the following:

42-PT92, 46-200-I, 48-200-I, 49-500-I.
--
Ron Ramirez
Ferdinand IN
Find
vecher
Phorum Expert
*****
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale State, Province, Country: PA
#5

02-02-2017, 12:39 AM
Ok thanks I will have to look around for a Chassis that will fit.

This is at the (pickers house) that I took the guys to....

Skip...
Find
OldRestorer
Electronic geneus
*****
Posts: 4,109
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#6

02-02-2017, 10:37 AM
Ooooh, Nice!
 Did you buy it?

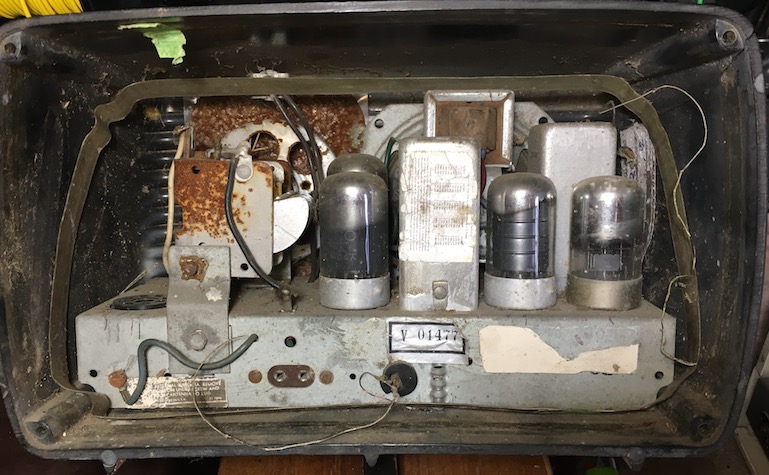

I have a 48-200 with a broken cabinet if you wanna sell it.
If you dont want to sell it then I have a chassis for it, Icon_lol
The chassis is ratty though..

Icon_smile


Attached Files Image(s)

Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
Paul Philco322
Super Moderator
******
Posts: 4,381
Threads: 412
Joined: Jun 2011
City: Boston State, Province, Country: Massachusetts
#7

02-02-2017, 09:05 PM
Looks like your case still has the aerial in it.

Paul
Tubetalk1
Website Find
vecher
Phorum Expert
*****
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale State, Province, Country: PA
#8

02-12-2017, 10:21 PM

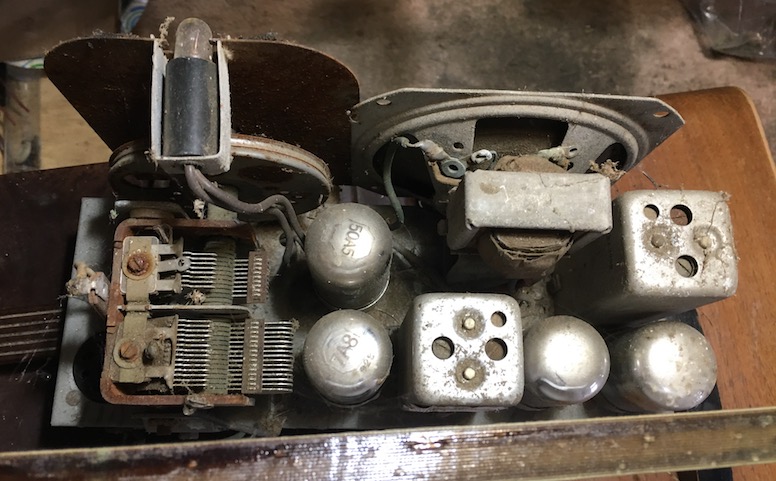

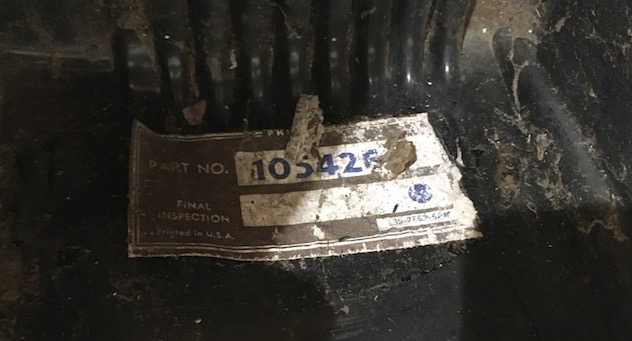

All, I just looked at this chassis we think is a fit for the Cabinet.. But no model numbers on it. Also all tubes are gone.. Can anyone maybe ID it???

[Image: http://i292.photobucket.com/albums/mm38/...tdi75t.jpg]

[Image: http://i292.photobucket.com/albums/mm38/...92ia8w.jpg]

[Image: http://i292.photobucket.com/albums/mm38/...xyqal6.jpg]

Thanks
Skip...
Find
Ron Ramirez
Silent Key
*****
Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand State, Province, Country: Indiana
#9

02-12-2017, 10:41 PM
42-PT-92 if it has rubber-covered wiring; otherwise 46-200-I.
--
Ron Ramirez
Ferdinand IN
Find
