Zenith 5D610 dial cord diagram
mark123
Junior Member
**
Posts: 17
Threads: 2
Joined: Sep 2016
City: Uniontown, OH
#1

02-03-2017, 03:31 PM
Hello forum -

Anybody come across a dial cord routing diagram for a Zenith 5D610? I've looked in the usual places, Googled quite a bit, and still have not found anything. I am most interested in how many turns the cord wraps around the tuning shaft itself. Any clues?
Find
klondike98
Phorum Moderator
******
Posts: 5,182
Threads: 276
Joined: Nov 2012
City: Wilsonville State, Province, Country: OR
#2

02-03-2017, 04:21 PM
Welcome to the Phorum!
Icon_wave

sorry, don't have that info.
Cheers,
Bob
[Image: https://www.dropbox.com/s/5m63ib99yfx2eg....jpg?raw=1]
Bob's Restorations Web Page
Website Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#3

02-03-2017, 05:03 PM
Hmmmm,

 I have a 6-D-510 but for the life of me I cant tell a difference...

I think it is the same and I literally just changed mine.
Does yours have 2 springs soldered onto the wheel?


If so then it is an easy string.
one end of the string goes on one end of the string. run it strait down under the chassis and wrap it 2 times clockwise.
The up through the oval hole to the other side if the wheel. Tie it fairly tight so the spring has opened a bit.

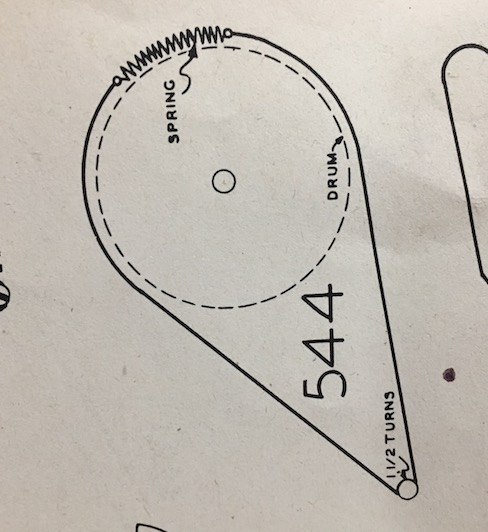

Here is the string guide that resembles it most.


Attached Files Image(s)

Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
