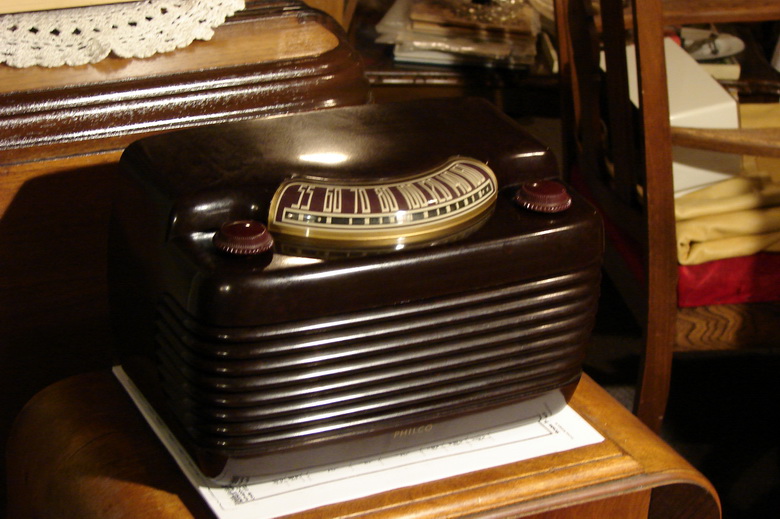

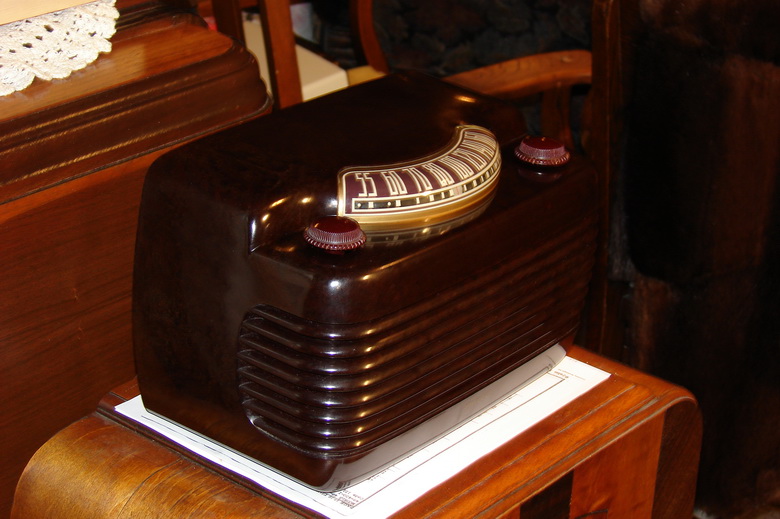

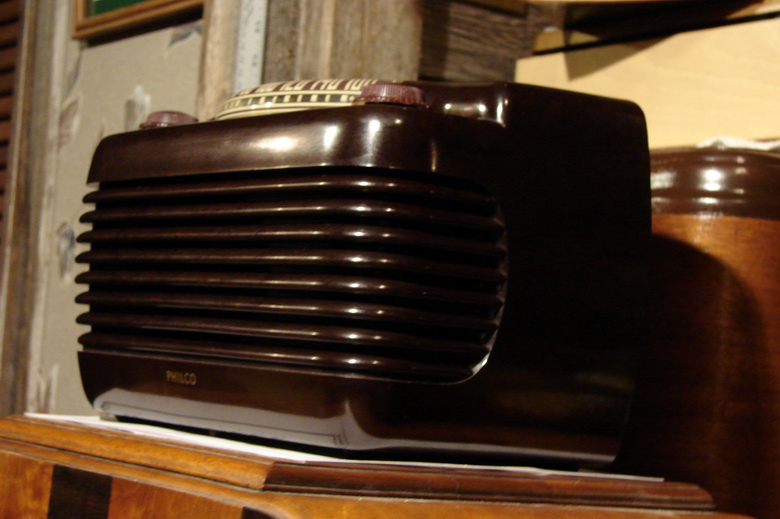

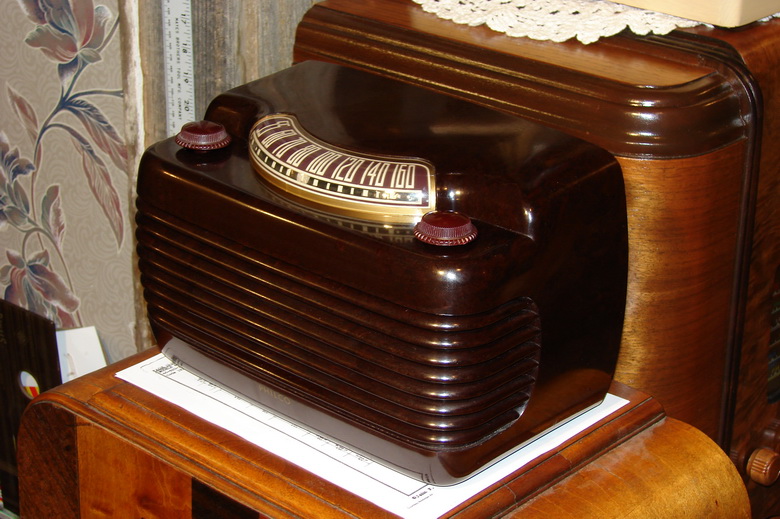

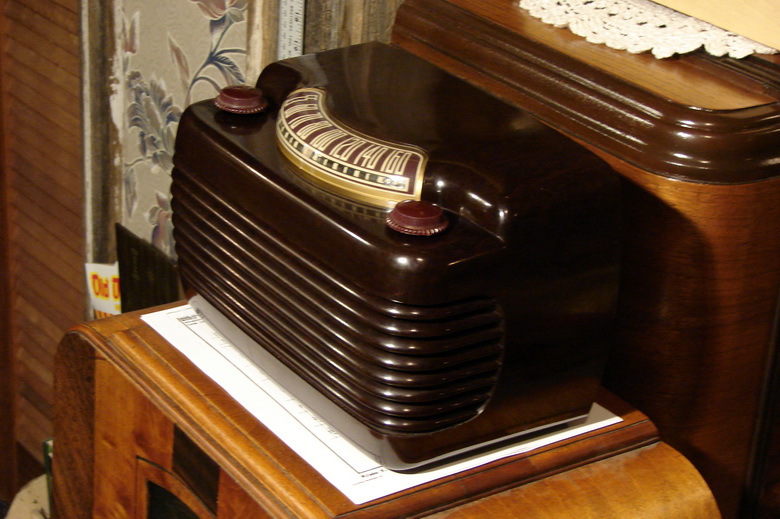

Bulb number 47, please do not run the radio without a pilot light very hard on the rect tube. Nice Job on the cabinet. David
Posts: 16,560
Threads: 573
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
Dan, great job!
The wattage.....these are typically 1W or so.
I get the number from the fact that 6.3V time 0.15A is about 1W.
This size bulb won't get it too hot under there.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 383
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
I believe that the bulb for this radio is 110 volts, as it is the same size as a Christmas light bulb. I will do a check and get back to you guys..
Dan in Calgary
Living in Calgary Alberta
Posts: 16,560
Threads: 573
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
It cannot be 110V.
It is plugged between the 35Z5 filament's pins 2 and 3 which are one end and the pilot tap. Considering the filament itself is 35V, the tap voltage when unloaded is 15V, when loaded - 5V so the bulb is likely to be 5-6V.
This is I think the same for 46-420 or 46-460 versions.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 4,490
Threads: 424
Joined: Jun 2011
City: Boston
State, Province, Country: Massachusetts
#47 would be 6V, I have a hippo, fairly certain that is what it has. Mine not so pretty, lost the Philco label somewhere along the line.
Paul
Tubetalk1
Posts: 670
Threads: 11
Joined: Sep 2014
City: Bellmawr, NJ
OH NO,,,DON'T POKE THE BEE HIVE,,,,,THESE GENTLEMEN KNOW THIER STUFF,,,,THANK YOU,,
Posts: 383
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
Kenneth. I believe them, that is why I asked the question about the bulb.
Thanks Dan in Calgary
Living in Calgary Alberta
Posts: 4,928
Threads: 54
Joined: Sep 2008
City: Sandwick, BC, CA
Dan;
It seems to depend on the code number, and production run, as to what pilot lamp the Hippo models use, some use a G.E #47 or equivalent, others use a 120 V night light type bulb. I think that the sets that used a 35Z3 (Loctal) used the 120 Volt night light bulb, basically a Christmas light bulb, since the 35Z3s don't have a pilot light tap on the filament. In any event they sell LED substitutes for night light bulbs in Walmart and some other stores, that would eliminate the potential melting plastic issue these sometimes get.
Regards
Arran
Posts: 383
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
Thank you Arran

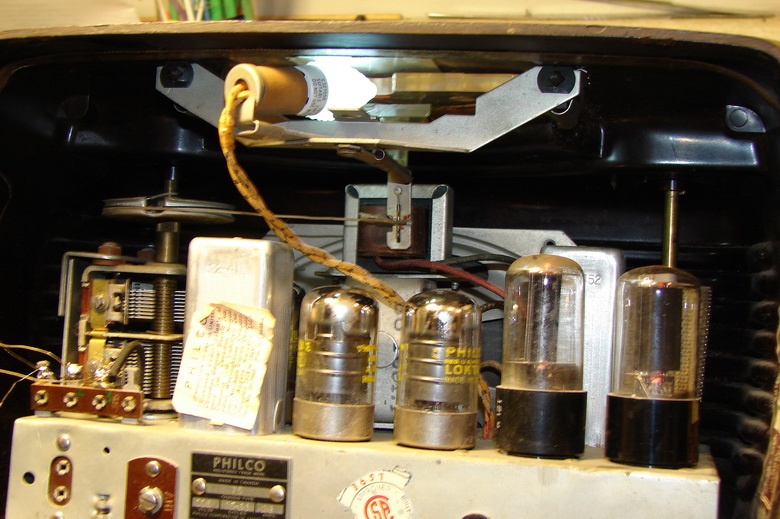

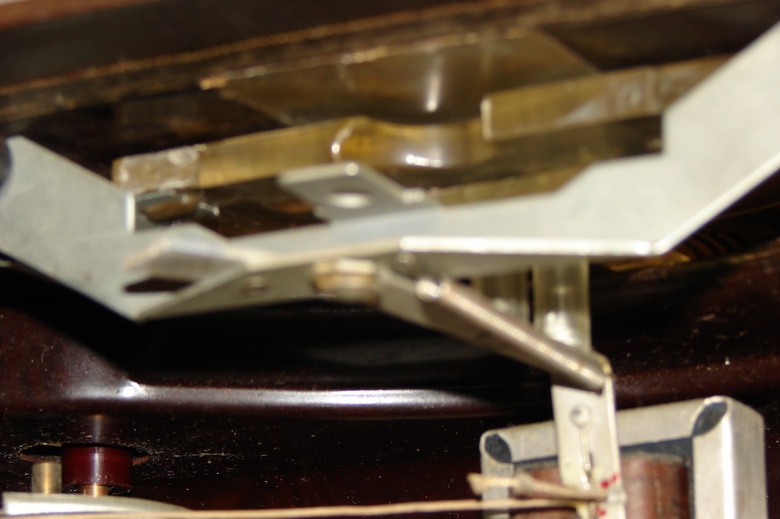

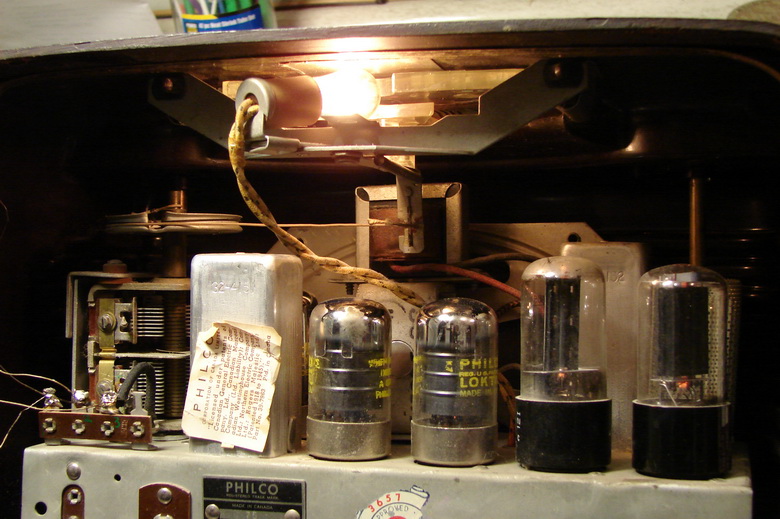

Mine has a large screw socket and I can put in a LED night light , but it is too large to fit in the space where a little smaller bulb would go. The LED night light is just a tad too wide.

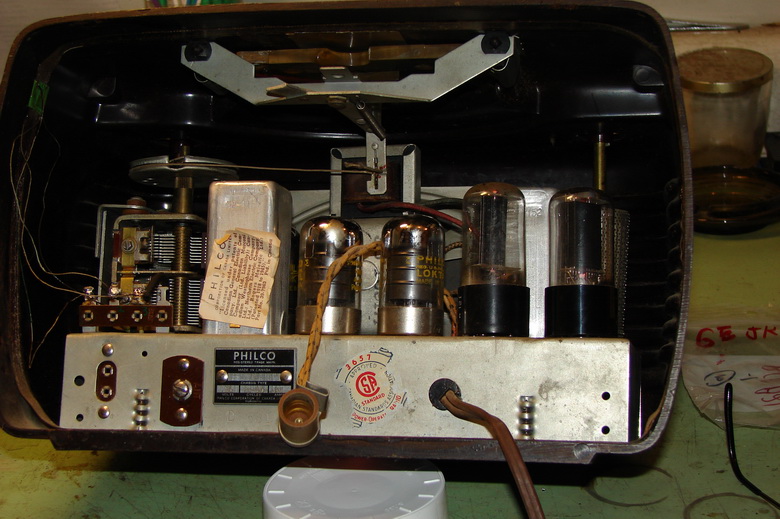

I will post some photos of the socket and set up I have .
Dan in Calgary
Living in Calgary Alberta
Posts: 383
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
Posts: 1,267
Threads: 32
Joined: Jan 2014
City: Wellborn Florida

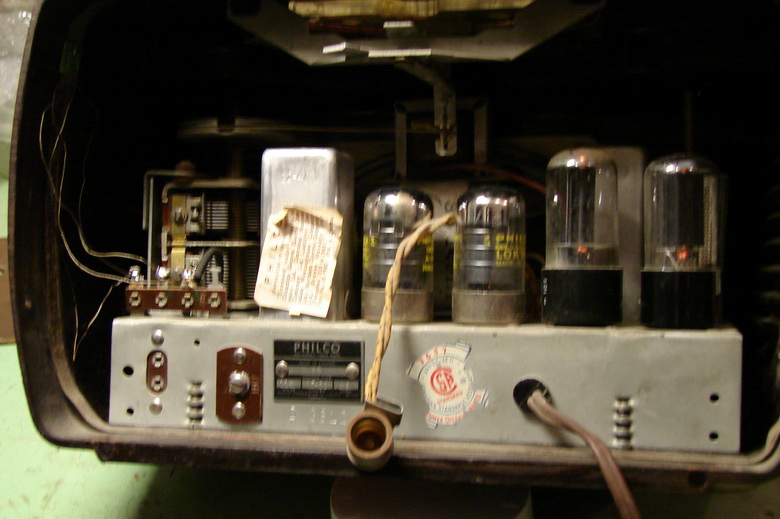

Dan your rect tube looks to be something other than a 35Y4. The standard night light is 7 watts but you can find clear 4 watt bulbs or just leave it out. Could you please give a list of all tubes in your set. Thanks David
Posts: 383
Threads: 105
Joined: Jul 2011
City: Calgary, AB, CA
The tubes in this radio are ,,,,,,,,35Z5, 14AF7, 7B7, 7B7, 7C6 and 50L6
Dan in Calgary.
Living in Calgary Alberta
Posts: 4,490
Threads: 424
Joined: Jun 2011
City: Boston
State, Province, Country: Massachusetts
I have a GE that has a bulb like that, put in a Red One for Christmas!
GE202.
Paul
Tubetalk1
Posts: 16,560
Threads: 573
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
It is strange that they used 35Z5 and then did not utilized the filament pilot lamp tap.....
