Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale
State, Province, Country: PA
(This post was last modified: 07-14-2017, 11:54 PM by vecher.)
Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand
State, Province, Country: Indiana
--
Ron Ramirez
Ferdinand IN
Posts: 4,109
Threads: 310
Joined: Nov 2013
City: Kings Park NY
way cooool
Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Posts: 7,286
Threads: 268
Joined: Dec 2009
City: Roslyn Pa
So do you have a particular question about it???

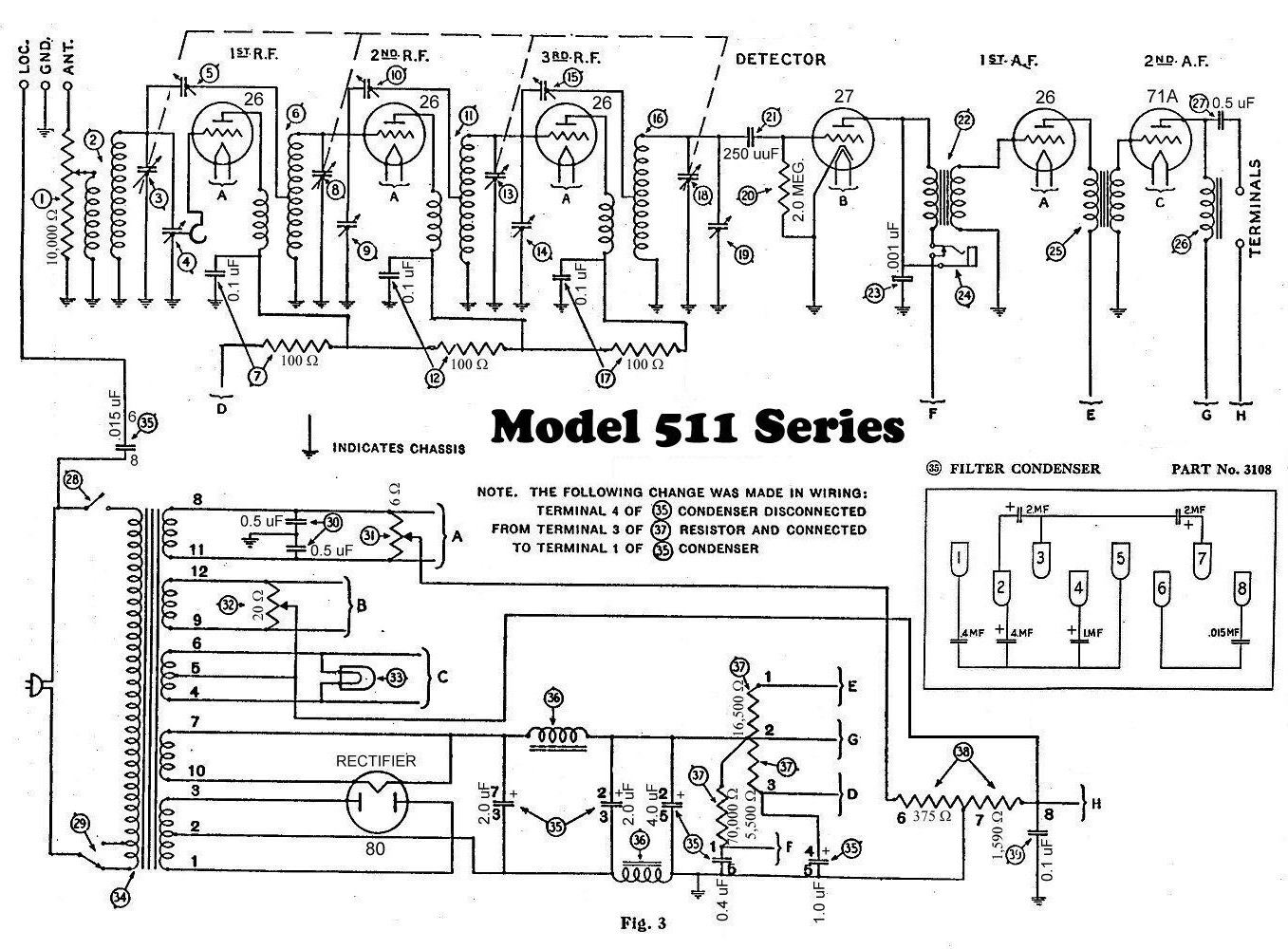

It's your basic TRF set using a bunch of #26tubes, 27 det, 71 audio output, and 80 rectifier. Tar filled filter cap can, rf and audio transformers are suspect. http://www.philcoradio.com/images/phorum/schem/511.jpg Don't use electrolytic caps in the p/s mylars are much better in this circuit. Keep the values close to original else you'll ended up w/500v B+ and your radio will hate you!You don't see red ones too often mostly rusty brown ones.
Keep eating those Wheaties!!!!
It's also Bluetooth compatible!!
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!
Terry
(This post was last modified: 07-09-2017, 01:59 PM by Radioroslyn.)
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale
State, Province, Country: PA
TERRY Ok thanks
I need a good layout of the bottom to see where everything is.. What I have is very Blurry..
Also will need a 71 Tube..I think I have the 26,27 and 80 tubes.. Do you happen to have any 71 tubes laying around?
Did this use all Globe Tubes?
Thanks for the schematic that helps alot...
Ps i just looked and I do not have any 26 tubes either So I will need qty4, 26 and qty1, 71A
Skip..
(This post was last modified: 07-09-2017, 03:15 PM by vecher.)
Posts: 7,286
Threads: 268
Joined: Dec 2009
City: Roslyn Pa
> Do you happen to have any 71 tubes laying around?
Don't think I have any spares.
>Did this use all Globe Tubes?
When new yes but I wouldn't bother w/globes they are more$$ and sometimes unreliable.
> i just looked and I do not have any 26 tubes either So I will need qty4, 26 and qty1, 71A
Ktown is coming b4 you know it.
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!
Terry
(This post was last modified: 07-10-2017, 08:49 PM by Radioroslyn.)
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale
State, Province, Country: PA
Terry Thanks for looking..
Kirk, Do you have any?
Yup, just thought I would Ask.. Joe's Shed may have them. Next time up there I will look..
Anything you need?
Thanks
Skip...
Posts: 7,286
Threads: 268
Joined: Dec 2009
City: Roslyn Pa
Nah just my head examined.
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!
Terry
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale
State, Province, Country: PA
Posts: 4,703
Threads: 51
Joined: Sep 2008
City: Sandwick, BC, CA
Globe or balloon style tubes are a nice feature to have, but not really necessary. I might think about using them in this case since it's a model 514 and not a dead common model 511, still it's not as though you can flip the lid up on a hinge and display the tubes like you can with a Radiola 60, it's still like a steel bread box. I would have a look around in this shed to see if maybe someone removed the tubes for testing and forgot to put them back, you may hit paydirt and save a few $$$.
Regards
Arran
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale
State, Province, Country: PA
Ok, The shed is where I took a few members close to me for a little picking.. Where I got this was at a Antique Dealer that I had gotten a few radios from before.. He needed space so I got 21 Radios ( in various states of repair) for 25.00 Thats about 1.20 Per radio.. The 512 was part of that deal.. With Speaker also..
The shed is where I will probably find the tubes as it has hundreds of them..
Here are a couple of pictures of the Shed..
[Image: https://farm5.staticflickr.com/4278/3545...b7b3_b.jpg][/url]
[Image: https://farm5.staticflickr.com/4205/3571...a5cd_b.jpg][/url]
Its been picked thru somewhat so it doesn't have quite this much now..
Skip...
Posts: 2,572
Threads: 337
Joined: Jun 2013
City: lawrenceville nj
 You didn't even make a dent in their
Some day, and that day may never come, I will call upon you to do a service for me. But until that day, accept this justice as a gift
mafiamen2
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale
State, Province, Country: PA
I know.. Every time I go up there I do find something new.. He also has another shed behind this one and a House ( basement full ) you guys haven't seen.. Going up tomorrow to see if I can find any 26 and 71 Tubes I need..
Skip...
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale
State, Province, Country: PA
OK found tubes.. All Globe type and all test good..I ordered some info from Chuck so just waiting on getting it..
Found 26, 27, 71A, 45 ( ST) , 80, 41 (ST)
As soon as I get the info from chuck I will start a tread on it.. Since its my first 1928 Radio I will probably need help..
Skip...
Posts: 133
Threads: 27
Joined: Aug 2006
City: Roseville,Ca.
This is NOT a 514,read Ron's info,511 is Spanish brown,512 is Mandarin red,which is what you have with a 514 power supply cover,513 is Labrador Grey,514 is Nile green-NOT RED,515 is called The Impressionistic and looks to be mostly yellow.
