Philco 70a Technical documents?
AudreyHepburn
Junior Member
**
Posts: 3
Threads: 1
Joined: Dec 2017
City: Mount Hope, Ontario
#1

12-29-2017, 11:03 PM

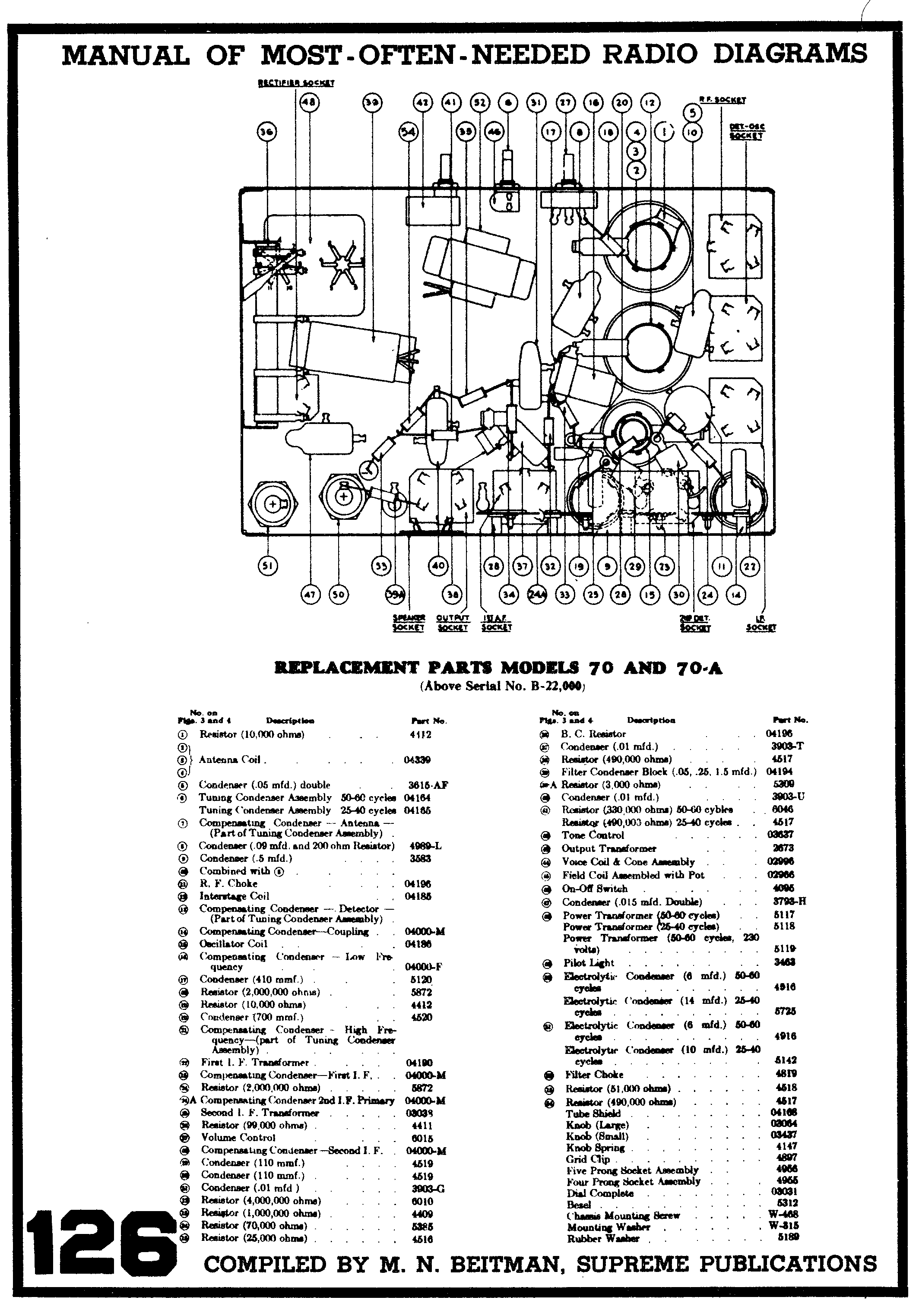

Could anyone here help me out? I have a 1931 Philco 70a (less than b22000 model) and am looking for a sheet that identifies the parts under the chassis. I have a schematic but it has many components simply labeled with numbers from 1-50 or so. I'm looking for the matching document that shows where those numbers are on the underside of the chassis. Thank you.
Find
morzh
Odobenus rosmarus
******
Posts: 16,533
Threads: 573
Joined: Oct 2011
City: Jackson State, Province, Country: NJ
#2

12-29-2017, 11:39 PM
http://www.nostalgiaair.org/Resources/833/M0013833.htm
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Find
klondike98
Phorum Moderator
******
Posts: 5,182
Threads: 276
Joined: Nov 2012
City: Wilsonville State, Province, Country: OR
#3

12-30-2017, 10:49 AM
Welcome to the Phorum!
Icon_wave

There is also a cleaner version of the docs on nostalgiaair on the audiophool site: http://www.audiophool.com/Philco.html

You do need to download the djVu reader. A link to that is found here: http://www.audiophool.com/index.html
Cheers,
Bob
[Image: https://www.dropbox.com/s/5m63ib99yfx2eg....jpg?raw=1]
Bob's Restorations Web Page
Website Find
David
Phorum Expert
*****
Posts: 1,264
Threads: 32
Joined: Jan 2014
City: Wellborn Florida
#4

12-30-2017, 04:12 PM


Find
AudreyHepburn
Junior Member
**
Posts: 3
Threads: 1
Joined: Dec 2017
City: Mount Hope, Ontario
#5

12-30-2017, 06:33 PM

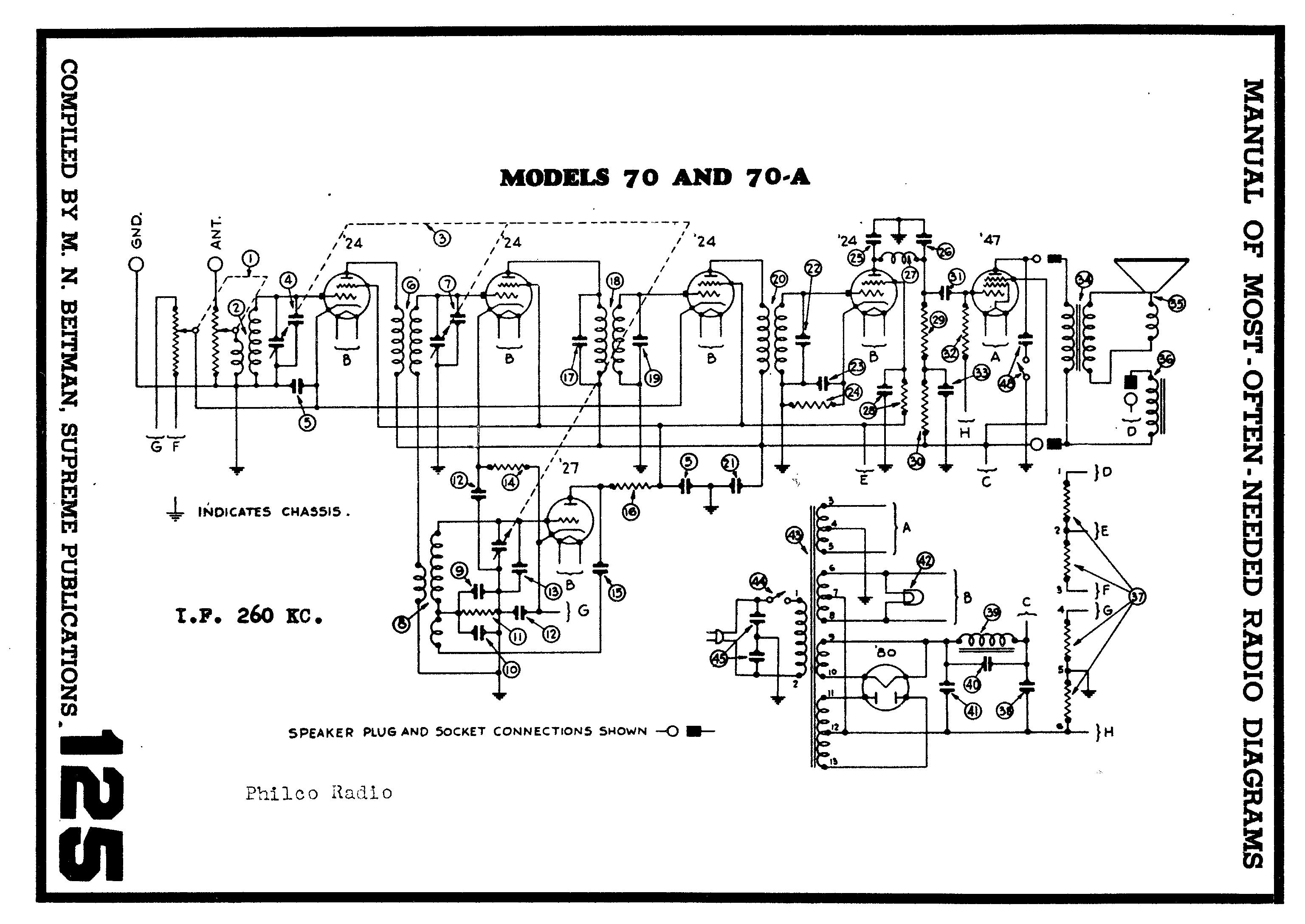

Hey @David, those are exactly what I'm looking for but it seems the ones you linked are for models above b22000. Do have any for the under b22000 model? Thanks!
Find
David
Phorum Expert
*****
Posts: 1,264
Threads: 32
Joined: Jan 2014
City: Wellborn Florida
#6

12-30-2017, 07:16 PM

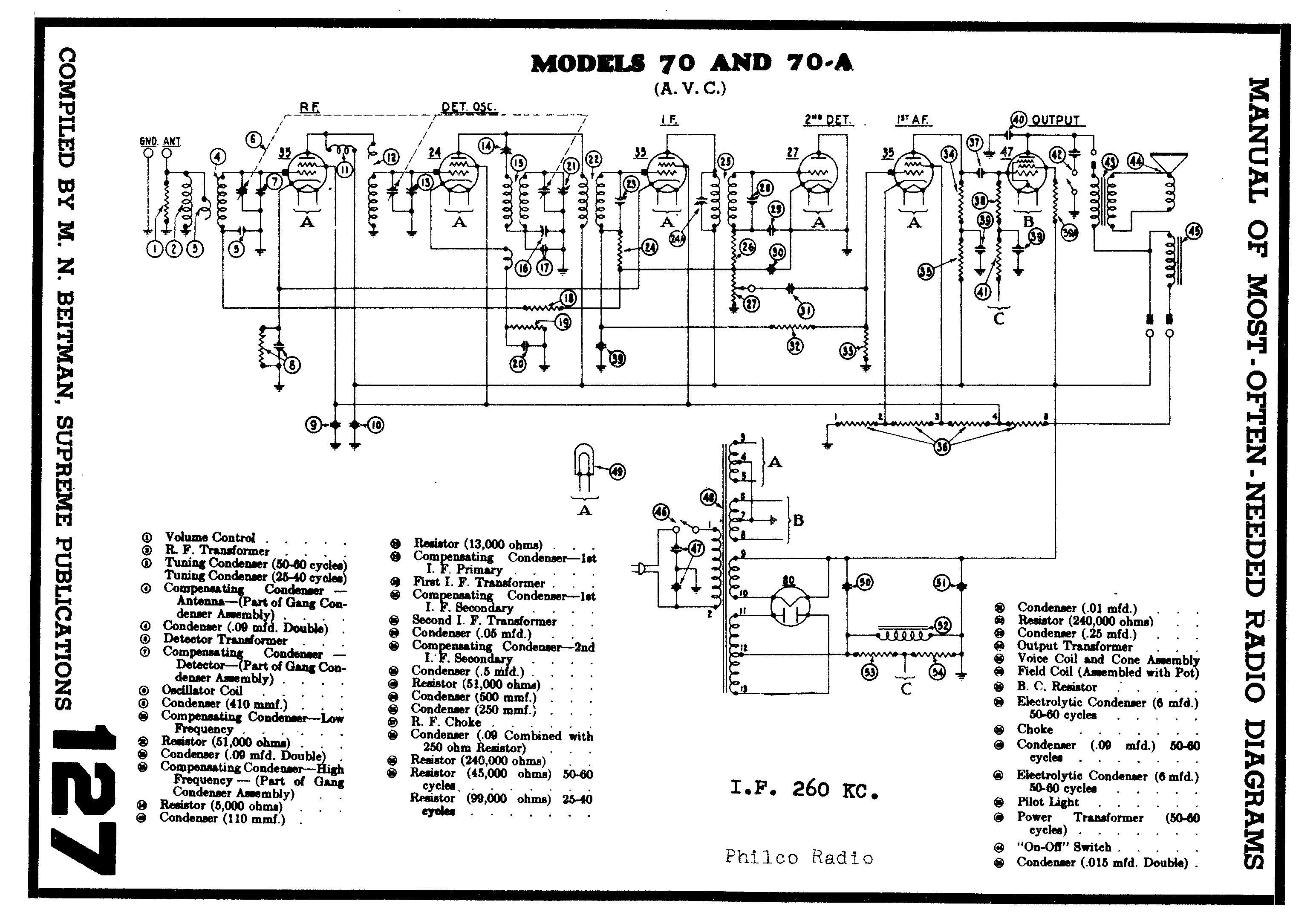

Hope this one is it!
Find
vecher
Phorum Expert
*****
Posts: 933
Threads: 140
Joined: Mar 2015
City: Lansdale State, Province, Country: PA
#7

12-30-2017, 07:41 PM
PM me with your email address and I can send you what I have..

Skip..
Find
