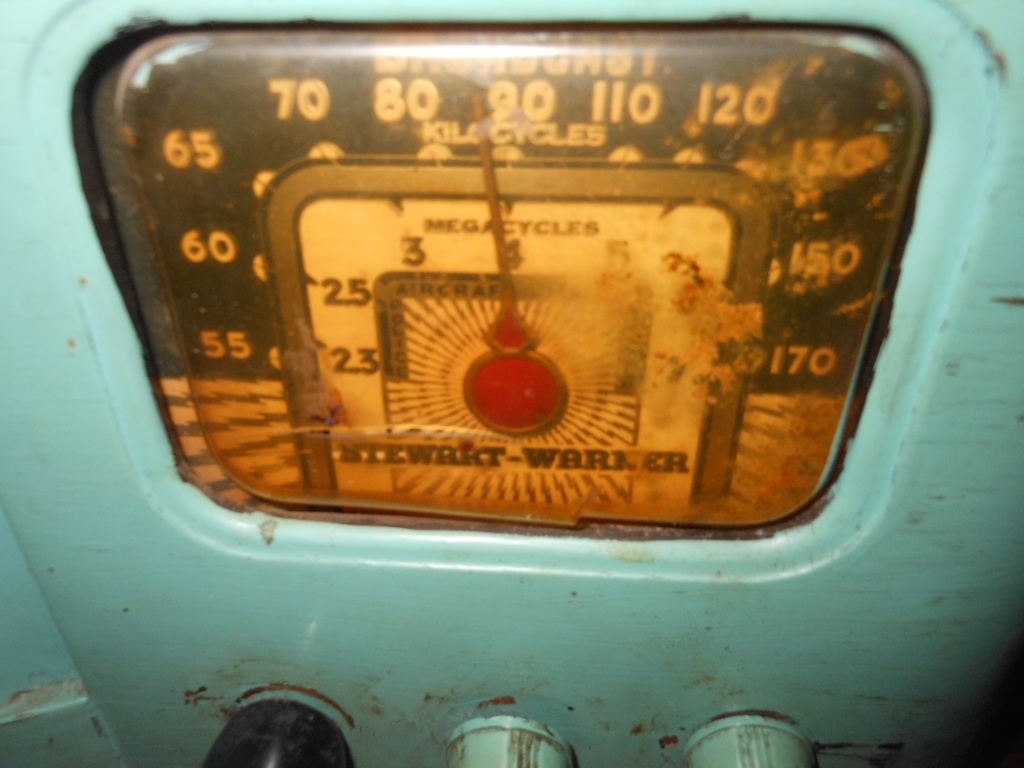

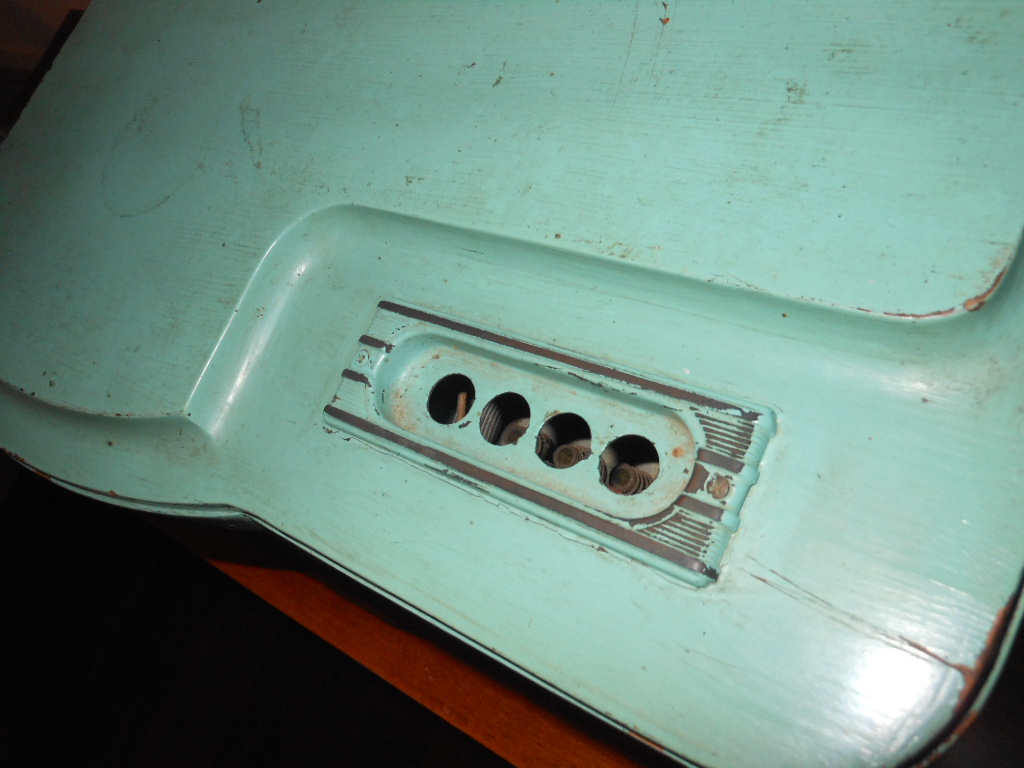

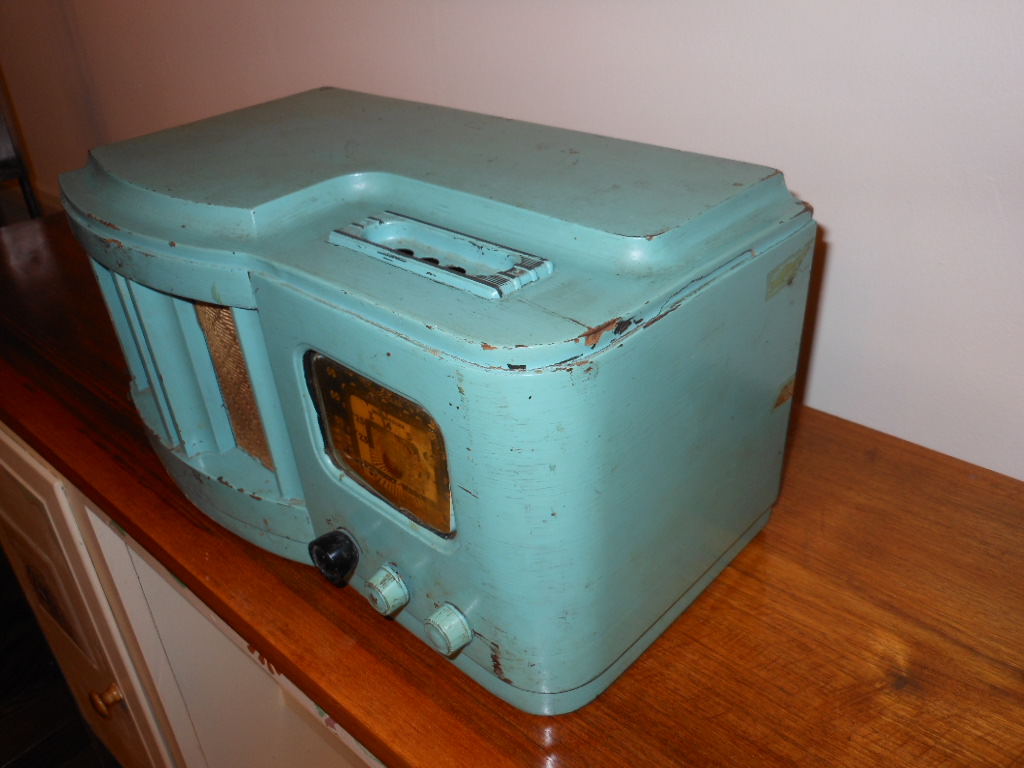

Hey Jake, those holes were for pushbuttons. Maybe the assembly was sticking or something and someone removed them.
Nice info on the radios history and it's a nice cabinet style.
https://radioattic.com/item.htm?radio=0100125
John KK4ZLF
Lexington, KY
"illegitimis non carborundum"
(This post was last modified: 05-07-2019, 08:41 AM by Eliot Ness.)
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY

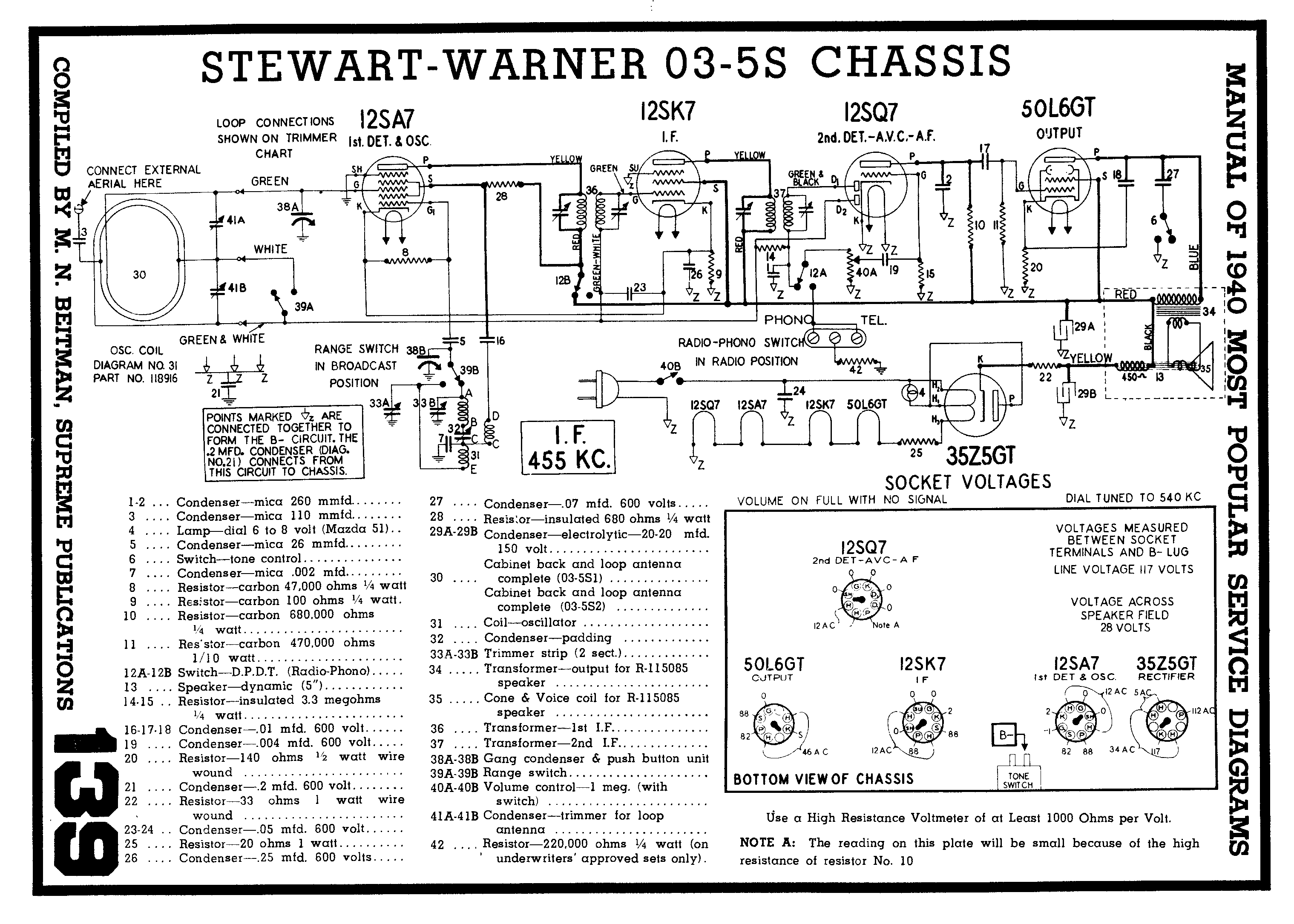

Yes John...I would think so. The schematic just shows variable condensers.
Posts: 4,515
Threads: 425
Joined: Jun 2011
City: Boston
State, Province, Country: Massachusetts

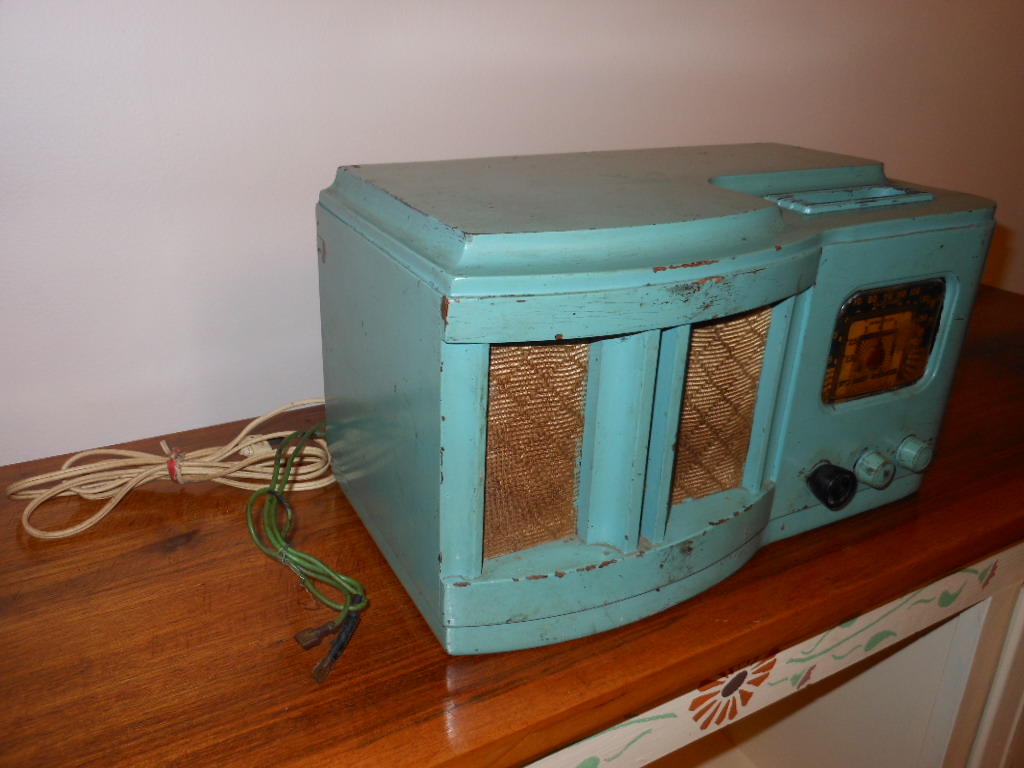

Other than the baby blue paint the case seems solid, so maybe some citrus strip and could be saved.
They made a pretty good set.
Paul
Tubetalk1
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY
" . . . so maybe some citrus strip and could be saved."
Thanks for replying bud.
Are you saying that citrus strip will remove paint ?
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
That is beautiful...
Meaning that the cabinet and look are a real nice looking design. Citri-strip is a paint remover so yes it would work.
It will be handsome again for sure!
Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY
"Citri-strip is a paint remover so yes it would work."
Thanks bud. I'll check it out.
I usually use more-heavy-handed stuff, but I can see the benefit of a milder stuff, if it still gets the paint off.
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY

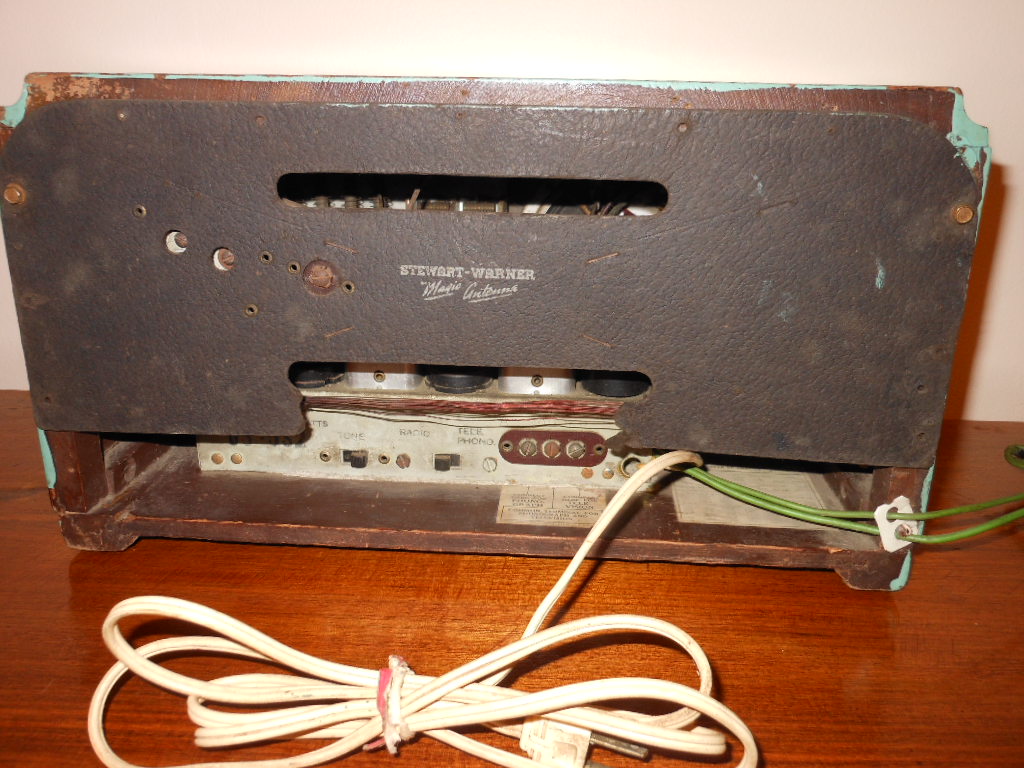

I've finally opened this radio up . After dealing with the asbestos in the cabinet, and removing a few added caps with messy soldering, I noticed it seemed to have EIGHT mica caps!
I thought that kinda odd, ( the Motorola 51X17, with the same tube compliment, only has 2),
. . . . until I started trying to trace them on the schematic. At least 4 have turned out to be resistors.
Why on earth did they have to make resistors look like mica caps?! Just thought I'd vent this frustration. I already know at least one has to be replaced. It's supposed to be 33 ohms, ...it's 41 ohms. Good bye and good riddance!
Posts: 1,269
Threads: 32
Joined: Jan 2014
City: Wellborn Florida
Jake looks to be your radio without the push buttons 03-5S
Posts: 4,515
Threads: 425
Joined: Jun 2011
City: Boston
State, Province, Country: Massachusetts
Always an adventure!
Paul
Tubetalk1
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY
"Jake looks to be your radio without the push buttons 03-5S"
YES...that's it. Thanks David.
Mine is supposed to have the pushbuttons, but they seem to be missing.
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY
Posts: 1,269
Threads: 32
Joined: Jan 2014
City: Wellborn Florida
Jake Maybe a late production run after the start of WWII, so they used the parts on hand to build the set. Some tubes have date codes on them look see if any are from the time frame of 1939-1940. The date code would be week and 2 digit year. Good luck on getting her going. David
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY
" . . . look see if any are from the time frame of 1939-1940."
Of the 3 metal, 12-volt tubes, the Raytheon 12SA7 appears to have what might be a date code - the numbers 280 and 617 stamped on the body. If it is, I'm not sure how to read it.
The Ken-Rad 12SQ7 has the number 62 stamped on the base. Would that be for 1962? But we know this radio is older than that.
The Tung-Sol 35Z5GT has the number 12 stamped on it's base.
. . . and the GE 50L6GT has 3-09 and 188-5 stamped on it's base. Could that be the ninth week of 1943?
Thanks David.
Posts: 1,194
Threads: 46
Joined: Feb 2015
City: Roseville, MN
Jake, nice patina on the cabinet. I have used the citri-gel stripper the last few winters. The directions wanted me to leave it on for at least 30 minutes. That worked fine but I had to apply twice more before I got results. Next time I decided to leave it on longer, more like 2-3 hours, just kept it wet. Boy, what a difference. Everything came off in one try.
Rod
