Philco 50 to 50A schematic modification.
jake wells
Still Learning.
***
Posts: 194
Threads: 43
Joined: Jan 2019
City: Brownsville 42210 State, Province, Country: Kentucky
#1

06-03-2019, 03:10 AM

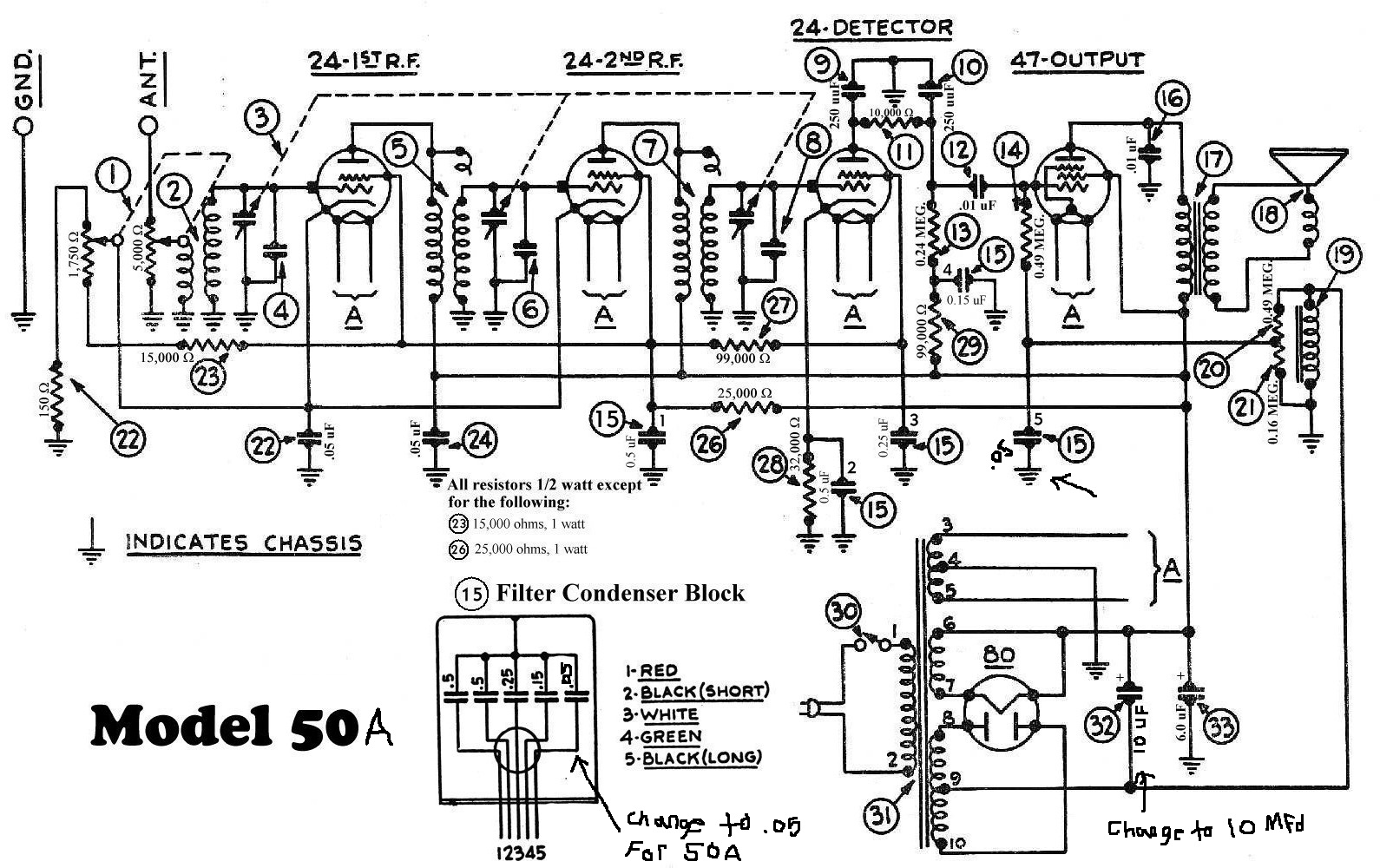

I modified the schematic slightly to better conform to my 50A i want to run it across y'all to make sure i didn't screw up. According to the parts list it only changes two parts one electrolytic from 6.0 MFD to 10 and one of the bypass filter capacitors from 0.1 to 0.05 .

Find
Jake Blake
Banned
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY
#2

06-03-2019, 10:32 AM
You mean it has a 10 mfd NOW, (for Canadian 25 hz. a.c.) It looks like you could go to 6 mfd. for  fig  #32, for  60 hz  a.c. , but somehow, I don't feel it's necessary.
