Hey Everyone,

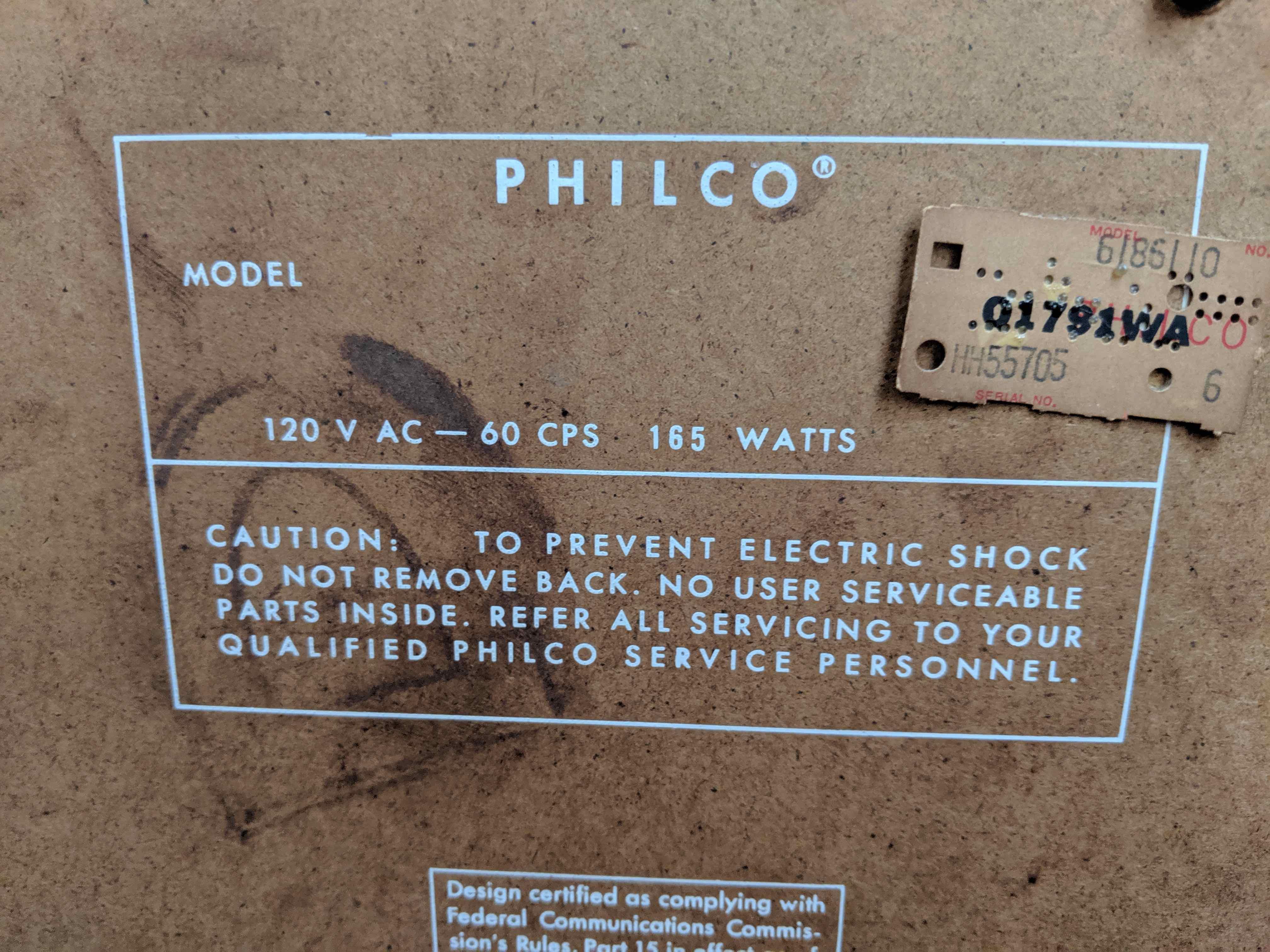

I recently purchased a Q1791WA (or at least that's what I believe the model number is).
Aesthetically the piece is in great condition with signs of wear and slight dings from moving around.
On the audio front, there is a terrible hum when the radio is turned on, and I'm unable to get the turntable or reel to reel players to work.
I'm finding very limited information about this piece online and wanted to come here for a bit of guidance on how to kick off my first project!
Any help is very much appreciated!
(This post was last modified: 08-19-2019, 10:44 PM by Qbinalex.
Edit Reason: typos
)
Posts: 16,496
Threads: 573
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
Welcome!
Treat it as any antique piece. Even if it is much younger piece than those from 1930-s, it still has to be recapped when it comes to electrolytics and paper caps. The resistors might fare better.
And then there are mechanicals.....for tape recorder you could possibly get some insights from Tapeheads.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 8
Threads: 1
Joined: Jul 2019
City: Philadelphia
State, Province, Country: PA
Thanks Morzh! That was my plan! And thank you for the advice on Tapeheads, I'll look there for a bit of help.

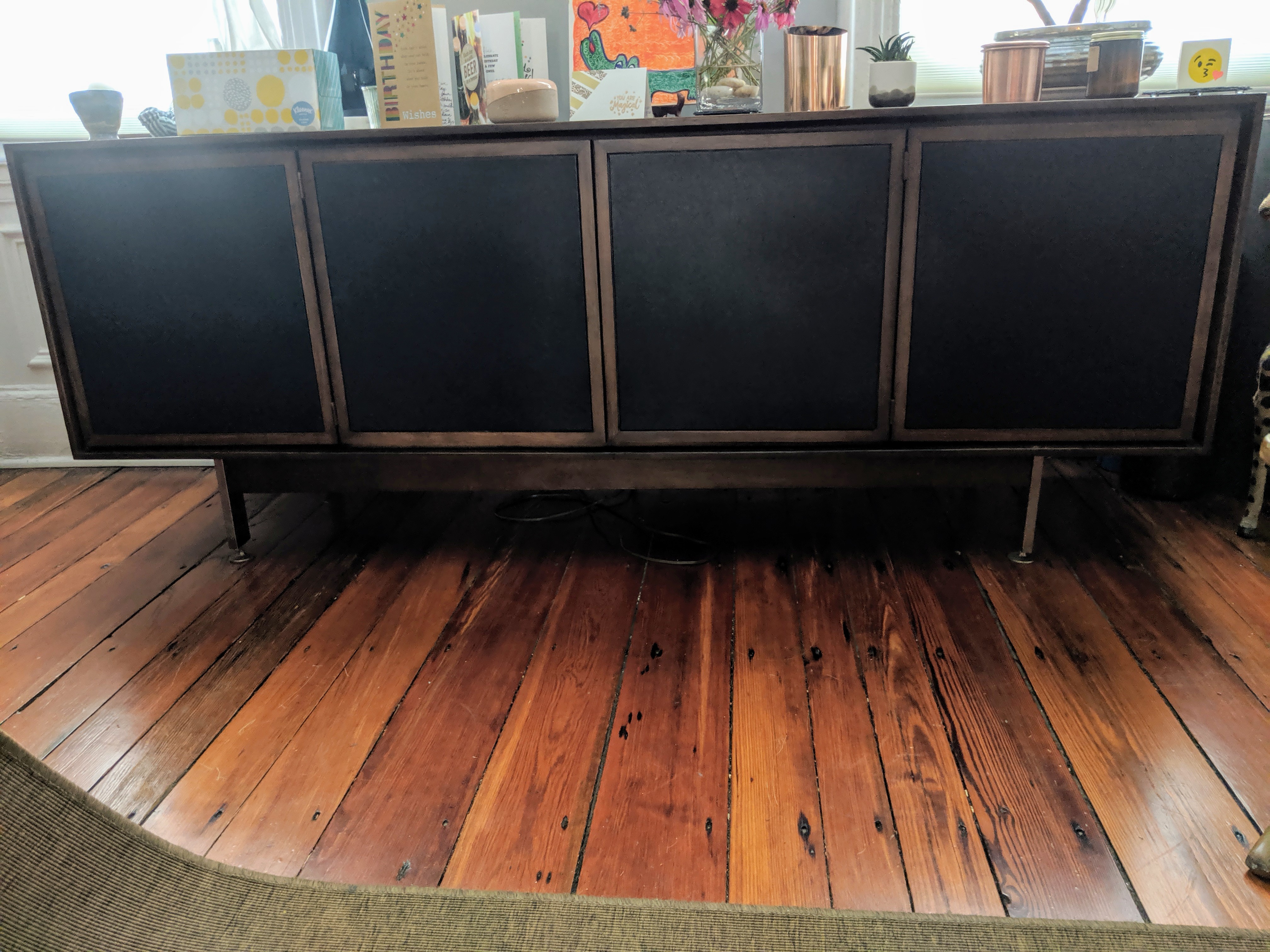

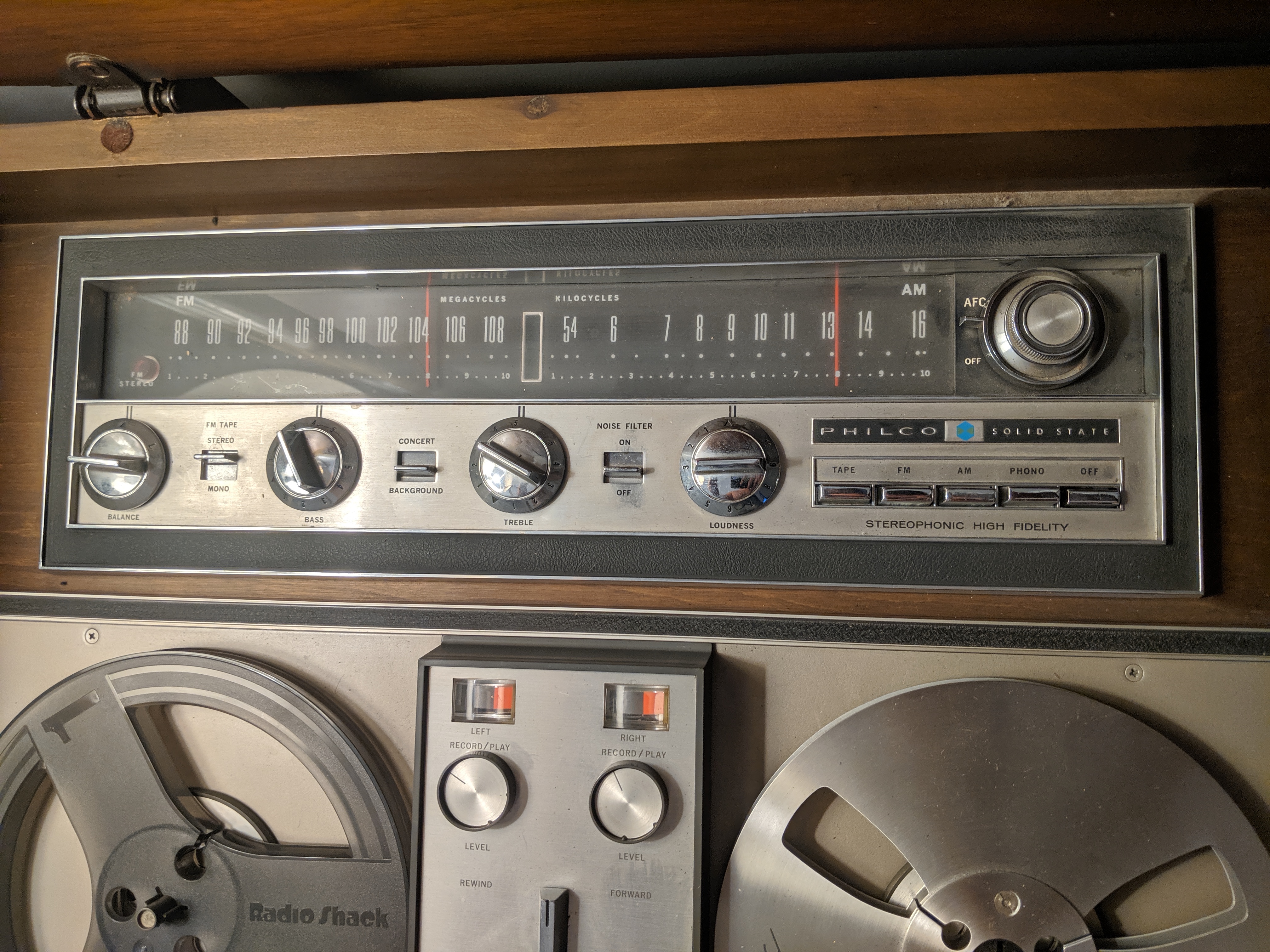

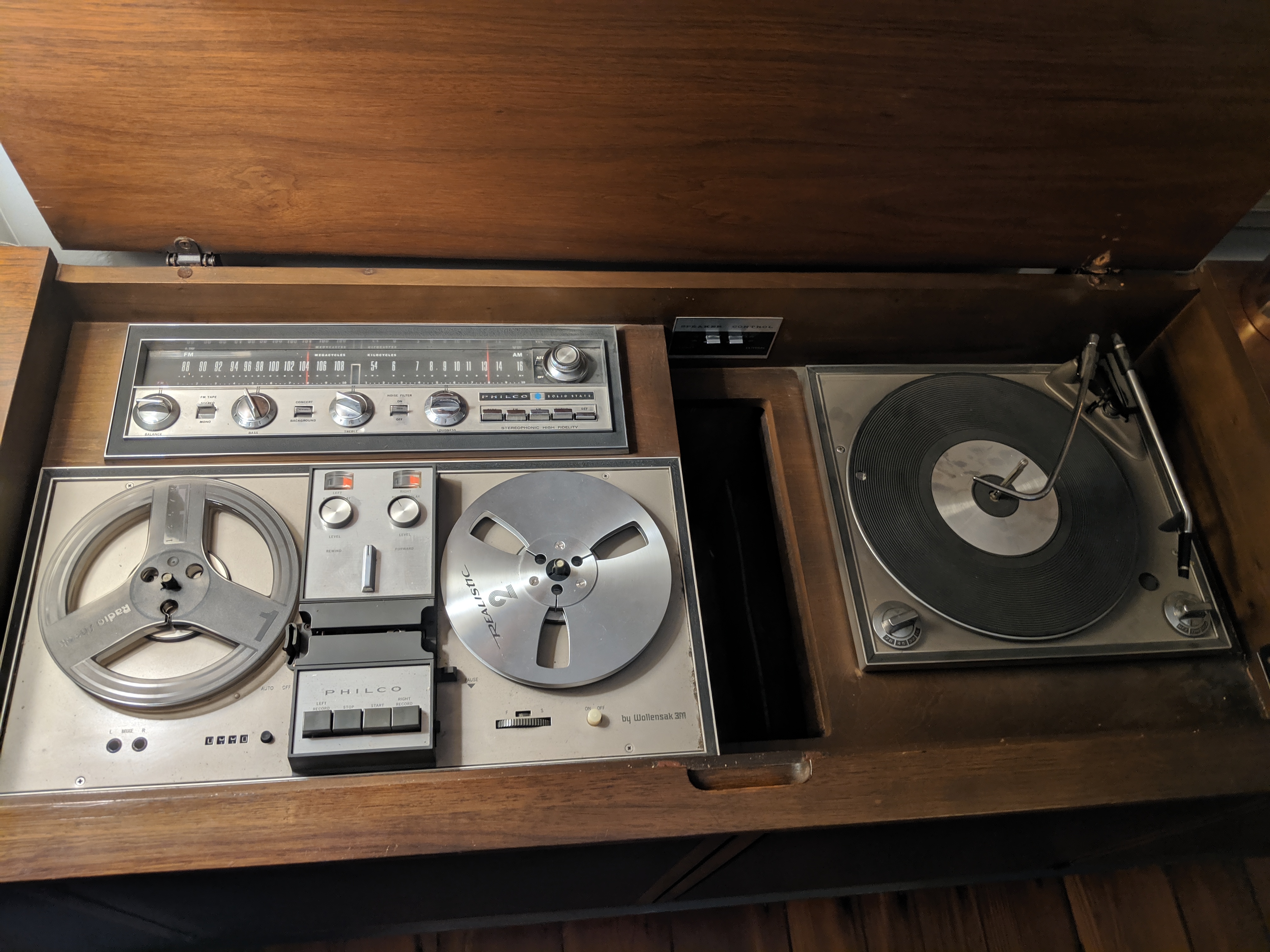

Here are some photos of the piece as well!
Posts: 102
Threads: 14
Joined: Jul 2017
City: Bakersfield, CA
Wow. that's a lot of radio!
Posts: 165
Threads: 5
Joined: Jul 2017
City: Woodland, CA.

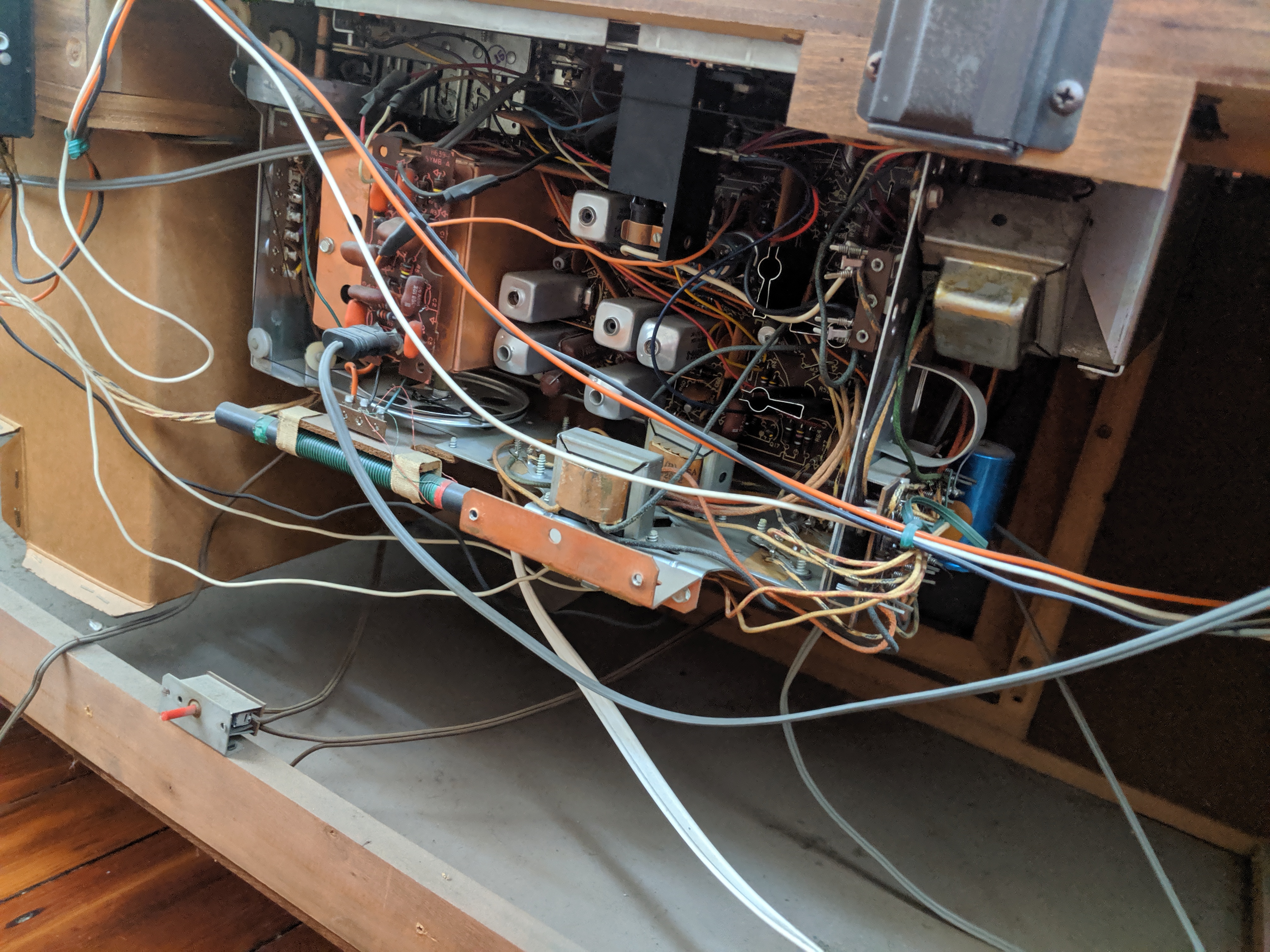

Nice box..... Now show us them pretty insides..
Steve
Posts: 66
Threads: 7
Joined: Jun 2019
City: Austin
State, Province, Country: Minnesota
And I thought I was ambitious restoring my first radio
Posts: 66
Threads: 7
Joined: Jun 2019
City: Austin
State, Province, Country: Minnesota
I suggest you replace any wiring that looks bad too as long as you’re in there. I’m having to do that because a few wires just crumble when touched
Posts: 8
Threads: 1
Joined: Jul 2019
City: Philadelphia
State, Province, Country: PA
Posts: 1,824
Threads: 114
Joined: Jul 2014
City: Sneedville, TN
I suggest you look here. The service information is not free, but it is not expensive either. I have used it myself: https://www.samswebsite.com/
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY
Hmmmm, . . . nice VM changer!
They gravitated to BSR later on with a dip in quality.
(This post was last modified: 08-20-2019, 07:47 AM by Jake Blake.)
Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand
State, Province, Country: Indiana
Agree with Mike the Druid. If you don't find it in Sams Photofacts...you probably aren't going to find it. And I would be frankly surprised if it isn't in a Photofact folder.
--
Ron Ramirez
Ferdinand IN
Posts: 8
Threads: 1
Joined: Jul 2019
City: Philadelphia
State, Province, Country: PA
I was able to find all the documentation on Sams Photofacts. Thanks all for the suggestion/help.
Posts: 8
Threads: 1
Joined: Jul 2019
City: Philadelphia
State, Province, Country: PA
Hello all,
The quarantine / self isolation has kicked my "restoration" into high gear.
I've restored the VM changer and have it moving and playing tunes.
Now on to fixing the hum emitting from the speaker... After checking all speaker wires and ground I'm pretty sure this is capacitor issue.
Is there a preferred/recommended site that everyone uses for purchasing capacitors?
I'm specifically looking for two Philco 30-2593-14 (4 uF / 25NP).
THANKS!
Posts: 7,300
Threads: 268
Joined: Dec 2009
City: Roslyn Pa
Would that cap be connected between two of the speakers?? Is the hum present when you select the radio or tape position?
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!
Terry
Posts: 8
Threads: 1
Joined: Jul 2019
City: Philadelphia
State, Province, Country: PA
Hi Radioroslyn,

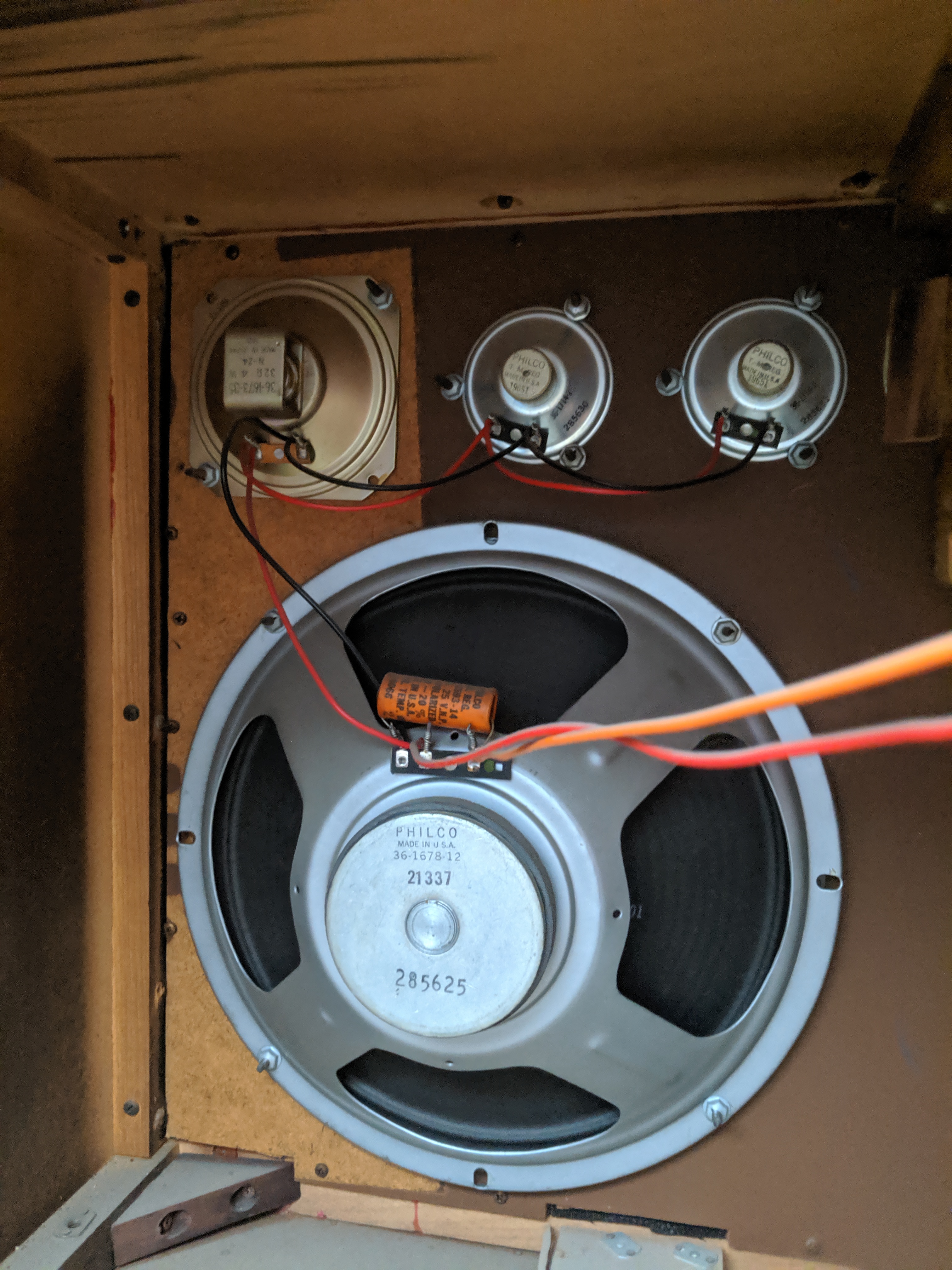

The cap is connected to the 12'' speaker which is connected to the remaining speakers.
The hum is present when I select radio am/fm, tape, and/or phono.
Thanks!
(This post was last modified: 04-20-2020, 09:45 PM by Qbinalex.)
