Tube layout for a Philco th-4.
Micro9
Junior Member
**
Posts: 36
Threads: 15
Joined: Aug 2007
City: Glendale,AZ
#1

12-18-2019, 09:28 PM
Anyone have a tube layout for a Philco TH-4.?
Need a pictorial of the top chassis to match tube location..
 TKS!
Find
Radioroslyn
Phorum Expert
*****
Posts: 7,294
Threads: 268
Joined: Dec 2009
City: Roslyn Pa
#2

12-19-2019, 12:47 PM
Do you have the set in question? If so send me a reasonable sized pic of the top and the bottom and we'll sort it out.
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
Find
Micro9
Junior Member
**
Posts: 36
Threads: 15
Joined: Aug 2007
City: Glendale,AZ
#3

12-23-2019, 02:32 PM

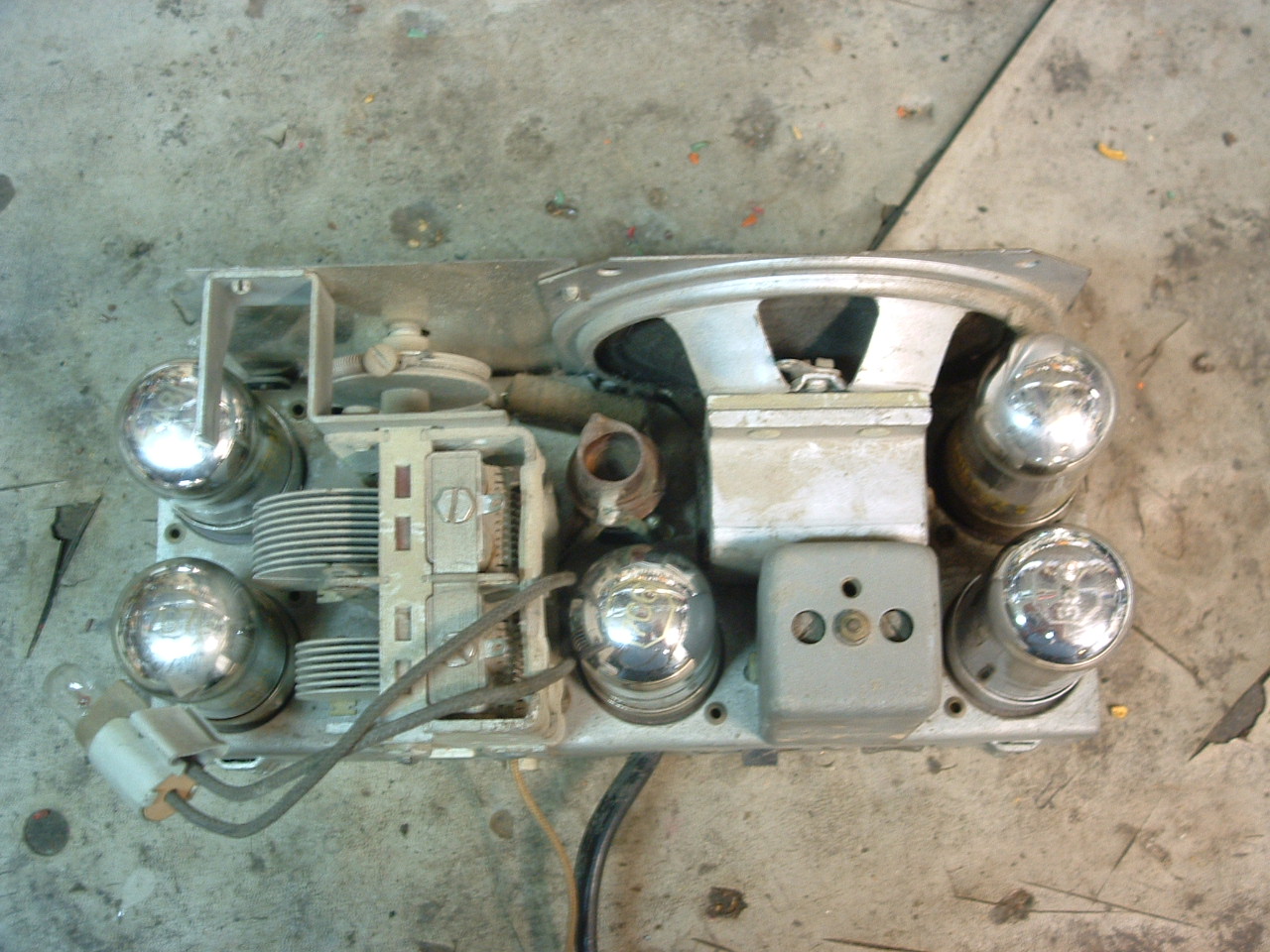

        Here are pixs of the top and bottom chassis.
(This post was last modified: 12-23-2019, 02:33 PM by Micro9.)
Find
Micro9
Junior Member
**
Posts: 36
Threads: 15
Joined: Aug 2007
City: Glendale,AZ
#4
Rainbow

12-25-2019, 10:14 PM
Here is drawing from a post from the Great Ron R.

[color=var(--cr-secondary-text-color)]https://philcoradio.com/phorum/attachment.php?aid=18851[/color]

Follow the link.It is Correct!!!!
(This post was last modified: 12-25-2019, 10:17 PM by Micro9.)
Find
Radioroslyn
Phorum Expert
*****
Posts: 7,294
Threads: 268
Joined: Dec 2009
City: Roslyn Pa
#5

12-26-2019, 11:33 AM
Glad you found a real layout!
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
Find
