Radio Identification
#1

Hi all,

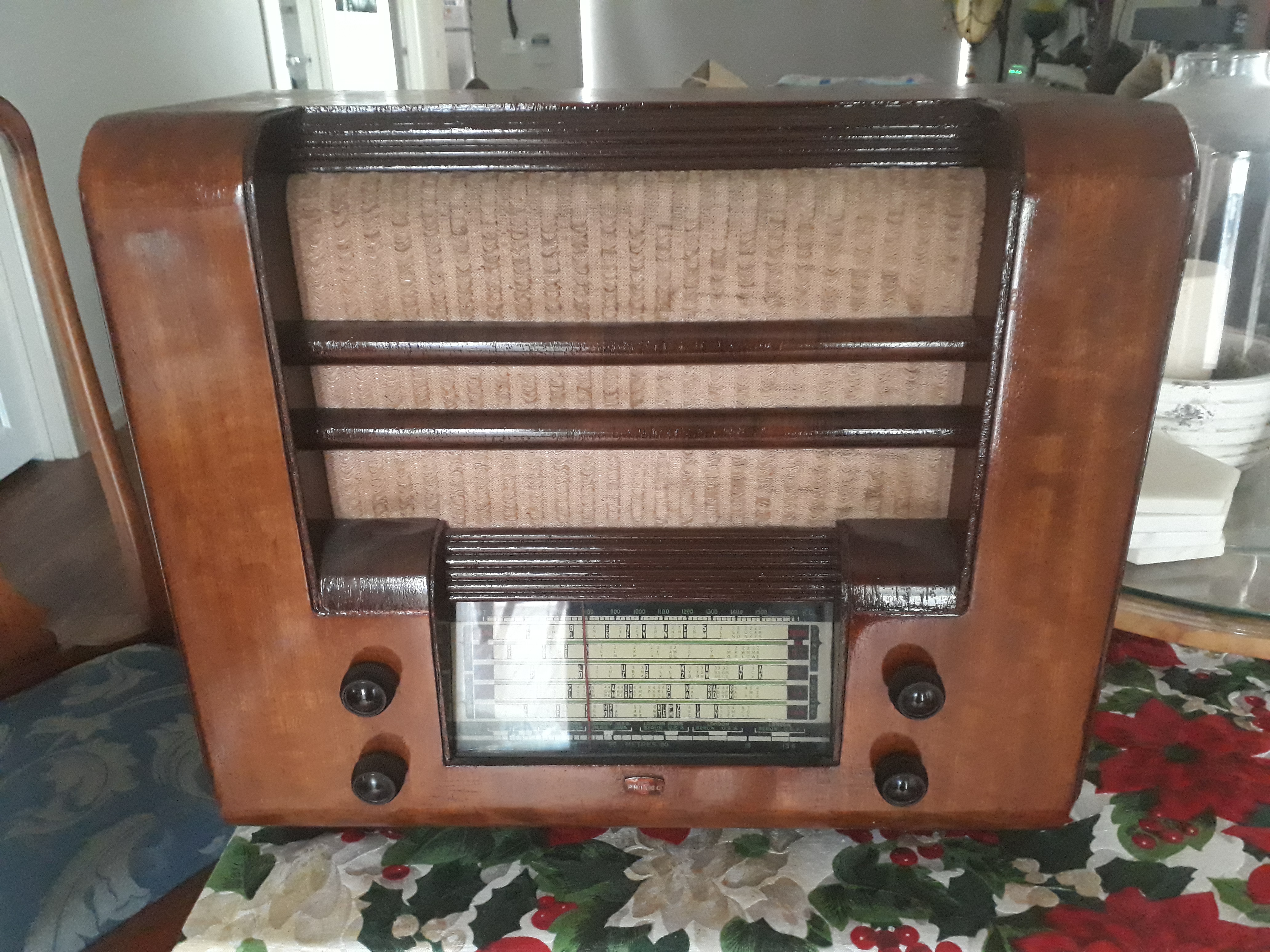

I am trying to find any info on this philco radio. I have trolled the I'net and the Philco gallery but no joy.
It has an Airzone 6DWS chassis ( I'm in Australia ) and am lead to believe that may have been made under licence here.
Any help greatly appreciated. Oh and is supposed to painted / lacquered dark in areas.
Cheers, Geoff.


Attached Files Image(s)

#2

Hi Geoff and welcome,
Unfortunately it doesn't seem to bear any resemblance to the US Philco sets. But the good news is that there are a couple of other forums to inquire with. I would try here   https://antiqueradios.com/forums/viewfor...c6ddc99c69  and  https://vintage-radio.net/forum/index.php

Best of luck with your project!

When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
#3

Thanks for your help Roadioroslyn I will give them a try. Cheers.
#4

https://www.radiomuseum.org/dsp_treffer....rt=&Page=1

Try this site.

Jim
Spring Lake MI
#5

Thank all,
Will try those sites .
