Zenith 6-S-843BT Schematic?
Greg
Member
***
Posts: 111
Threads: 24
Joined: Oct 2016
City: Whitehall PA
#1

09-07-2020, 08:12 PM

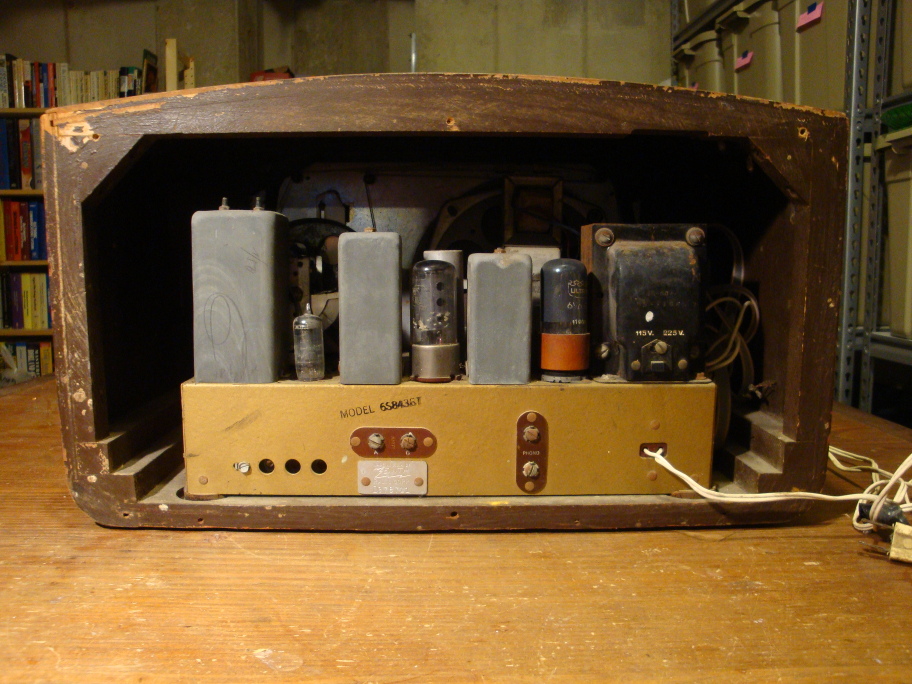

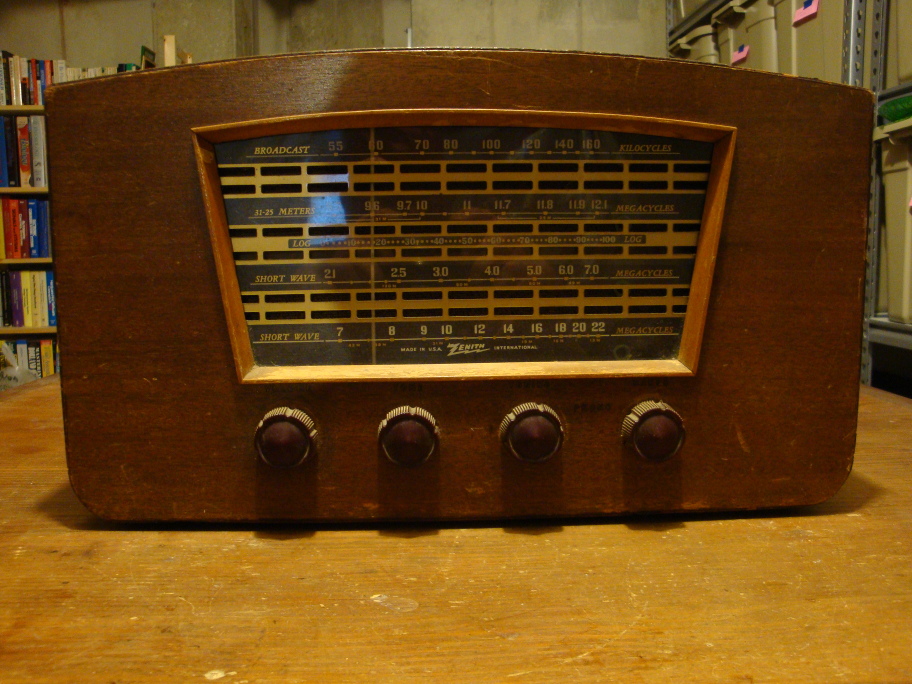

Hi - Does anybody know where I might find a schematic for this radio? It a Zenith 6-S-843BT export model. Searching only turned up a couple of Spanish and Portuguese magazine ads and a couple of old Ebay auctions, no schematics. Rider's doesn't have it. I want to say the cabinet was stamped 1948, but I'm too lazy to go to the basement to check  Icon_biggrin .

I just started to refinish the cabinet and would like to align it before I put it back together. I could probably figure it out on my own, but would rather have a schematic if one exists.

Greg




Can't think of anything witty.
Greg O.
Whitehall, PA
Find
David
Phorum Expert
*****
Posts: 1,191
Threads: 25
Joined: Jan 2014
City: Wellborn Florida
#2

09-13-2020, 04:02 PM
Your set has a duel voltage power transformer so maybe that is the only difference!!!! Found this kinda maybe it will work. Stay safe David       http://www.nostalgiaair.org/Resources/245/M0025245.htm
