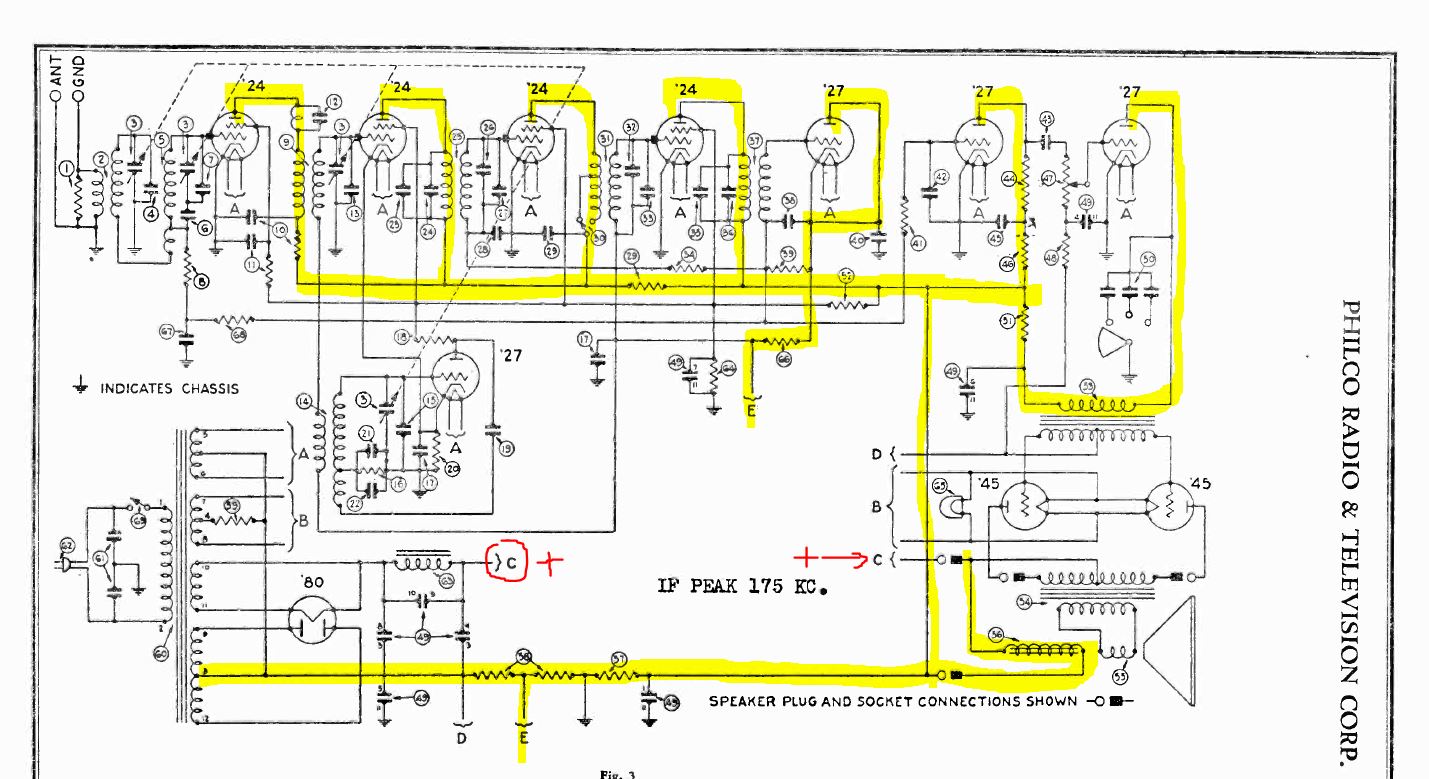

I'm currently restoring Philco Lowboy 111. I am having difficulty comprehending this schematic, particularly rectifier and plate voltages. It seems to me that -VDC is fed from the center tap of the transformer into the field coil and then connects directly to the +VDC line coming from the rectifier tube. Also, it looks like -VDC goes to all tube plates and I'm not sure how that works. I marked the negative in yellow and positive in red. Could someone tell me what am I missing here? Thank you.
Hi,
What you are missing is the ground symbol next to 57. Everything to the left of the symbol is - voltage and everything to the right is +voltage. D and E are - bias voltages for the detector and the audio output stages. Easy peasy! [Image: https://philcoradio.com/phorum/images/sm...iggrin.gif] You might find this : https://philcoradio.com/library/images/schem/111.jpg diagram easier to work with as it as the pasts values noted.
