Need some help identifying the chassis that was in a cabinet  that I found at a yard sale.

From the research I did on Philco Radio Galley the cabinet is either a June 1932 91X or possibly a Fall 1932 71X, since the chassis I have has eight tubes and the 71X is listed as 7 tubes I have ruled this model out.

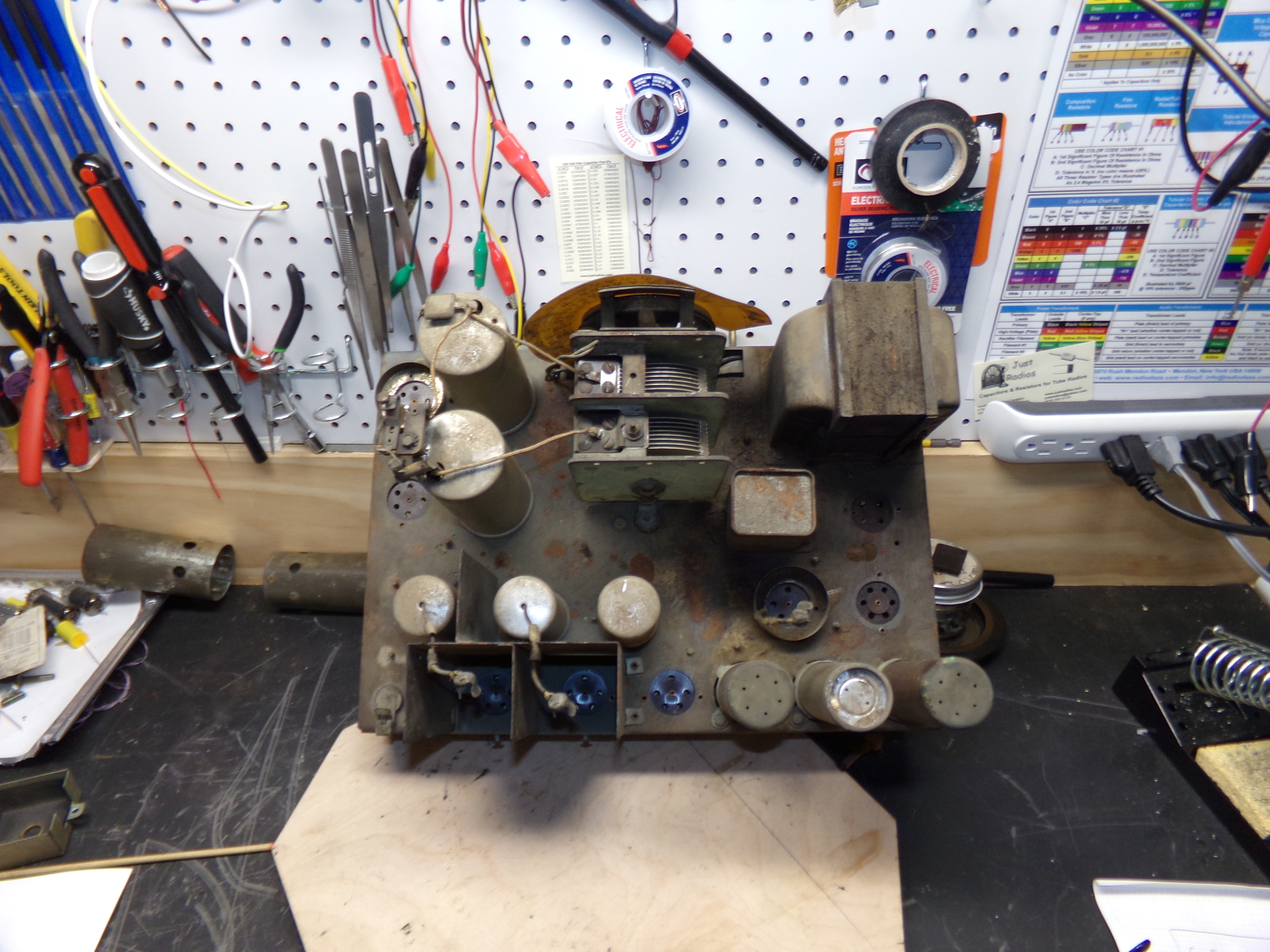

I went to Nostalgia Air and printed the schematic for Philco 91 ( attached)  this schematic doesn't appear to match the chassis I have. The most notable difference is the schematic only shows two Electrolytic Cond. items 57 and 55.  You can see from the attached picture I have three cans.   Next difference this is  that the  attached schematic has 9 tubes.

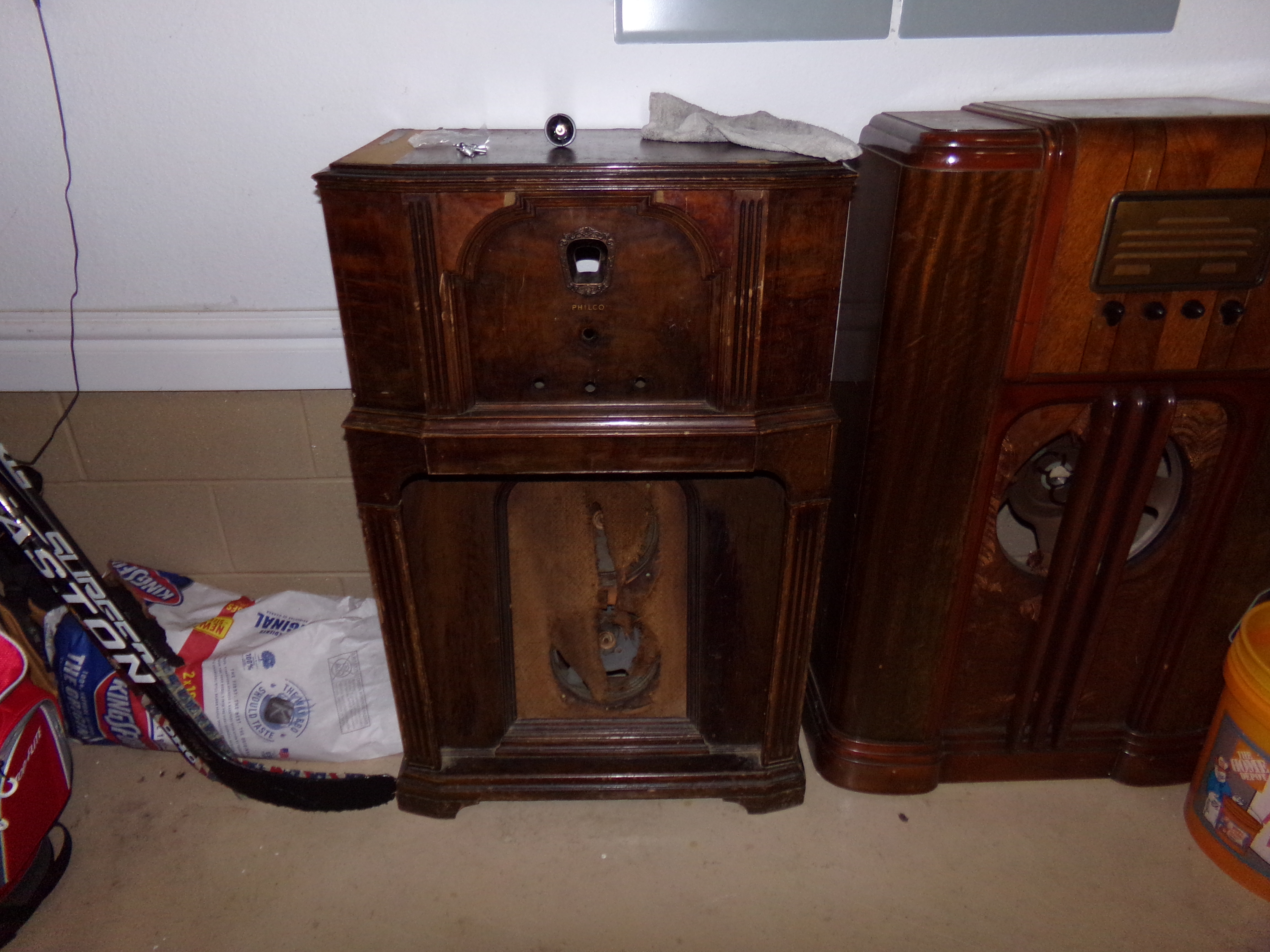

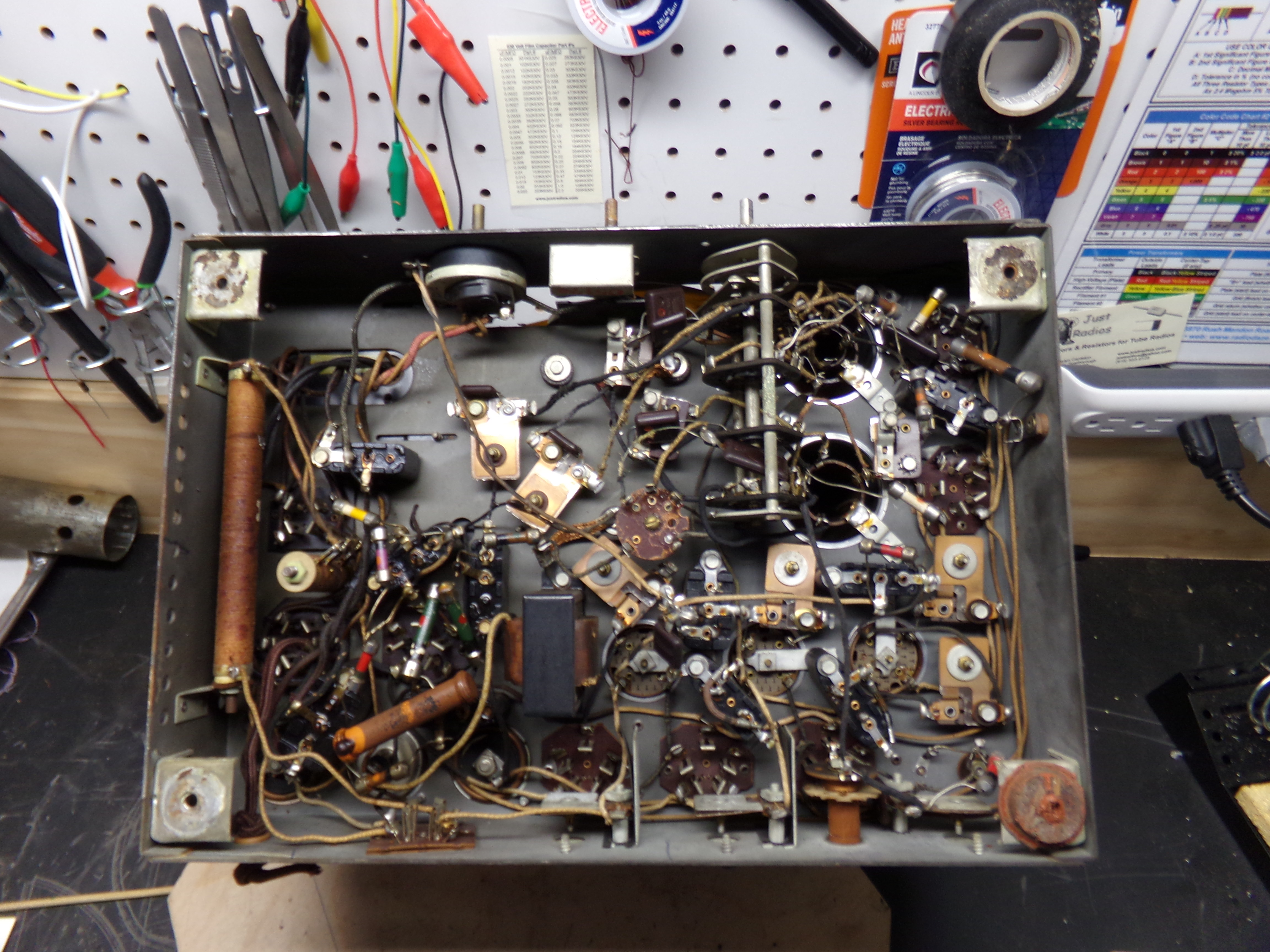

I Have attached a picture if the cabinet, front and back pictures of the chassis and a copy of the schematic.

Any help with this identification would be greatly appreciated.

Also the chassis doesn't have any identifying marking that would help.

[Radioroslyn]

Try a model 43.

[Steve Davis]

That's one big power transformer, must be a 25 cycle set.

Steve

[Arran]

It's definitely not a model 91, a model 91 is basically laid out like a model 90, but with 6.3 volt tubes rather then the 2.5 volt AC ones.
Regards
Arran

[cparsons2391]

As Terry said, probably a 43.

43 Schematic

43X

[Radioroslyn]

When you get it all cleaned up shoot a pic of it over to Nathan so we can add it to the Gallery. As it stands now we haven't one now and it would be a help. Tnx!

[Masonparker]

Thanks for the help. When I'm done i will send pictures . The cabinets does have 80 years of dents and dings
