Multi Elmac
#1

Ok i have the following AF-67,AF-68,PMR-7A,

Power Supplies M-1070, PS-2v

Question Does anyone have a working system? I am confused with the filament supply it has 6 volt and 12 volt.. I want to connect the af 67 and pmr-7a together ..

Any help ??

Skip
#2

Do you have the interconnecting cables with the cinch jones connectors on the ends?

When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
#3

yes . on the m-1070 their is a 8 pin octal socket I do have a cable from the 8 pin to a 15 pin.. with a relay also for tx to rx..

also have the 10 pin connector on a different power supply looks like homebrew i assume for the receiver..

the ps-2v has a 15 pin connector on it

Skip
#4

Ok good. If you are powering them from the AC side of the p/s the heater voltage shouldn't be an issue with the proper cable. The manuals can be found here:  https://bama.edebris.com/manuals/elmac/

Plan A. Read the schematic and sort all of the heater/plug connectors.
Plan B. Grab a variac and use that to regulate the ac input to the power supply while watching the heaters.
Plan C. Abandon all cares and plug it in. Flip it on and if you so a bright flash like Hiroshima it's wired wired wrong.

I've had/have the AF-68 & PMR-7. The '68 is a  good little AM transmitter and the 22 1/2 v battery was still good from '60. Sold that one and bought another 4 or 5 yrs ago. Didn't have the p/s so I powered it w/a Harvey-Wells APS-50. Used a hand full of automotive push on connectors to connect to the jones plug.

The PMR-7 I don't remember too well other than it gets hot as a blast furnace and the selectivity is broad as barn door. It's fine for AM but listening to cw or ssb is a challenge.

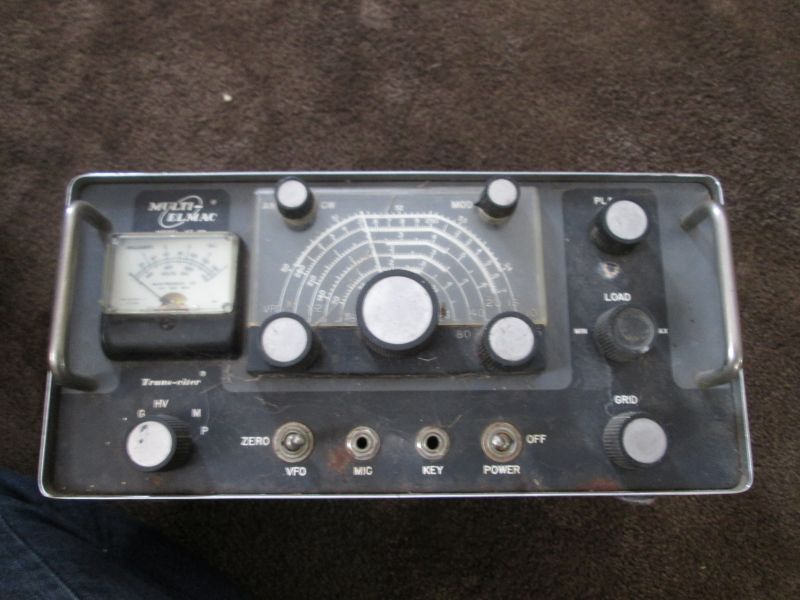

For those of you that are following at home this is what the AF-68 looks like is the raw. 6146 modulated with a pair of 5881's or 6L6GC's

GLOM


Attached Files Image(s)


When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
