Model 89B Label, Missing Right Side Label
#1

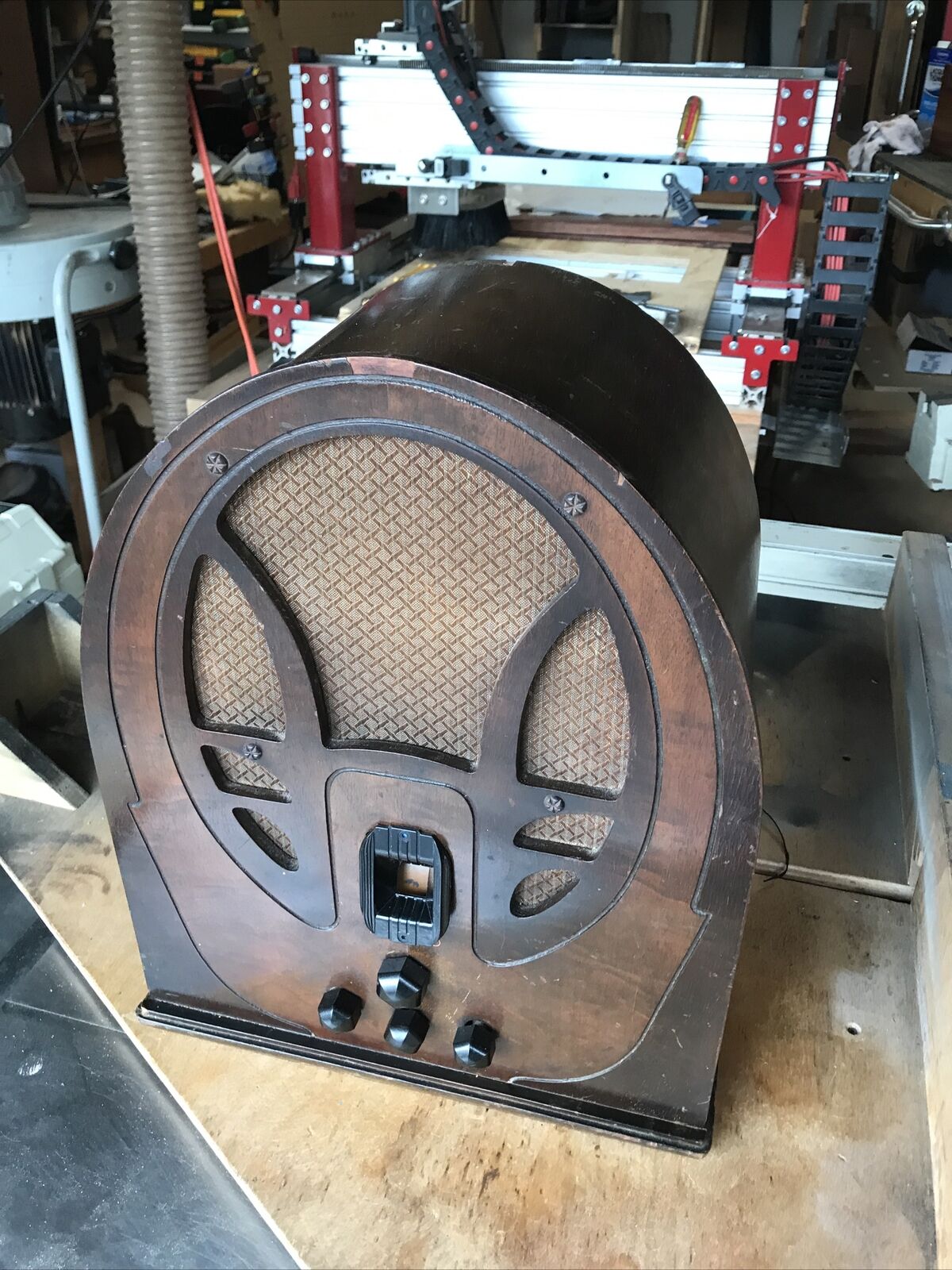

Afternoon, all! My wife wanted me to get a cathedral to display in our living room. Naturally, I thought a Philco would be my best bet. I found a model 89B. It will take a lot of work, but the cabinet is decent, the knobs are there and the speaker cloth is intact. I do have a couple of questions.

First question: The chassis label was adapted from the excellent ones Nathan Slingerman made. Yesterday, I noticed that the manufacturer is shown on the old label as the "Philadelphia Storage Battery Co.", instead of the "Philco Radio and Television Corporation". When did Philco stop using the old corporate name? I'll adapt the replacement label accordingly, but I thought it was odd that Philco would still (at least occasionally) use the "Storage Battery" ID in 1934.

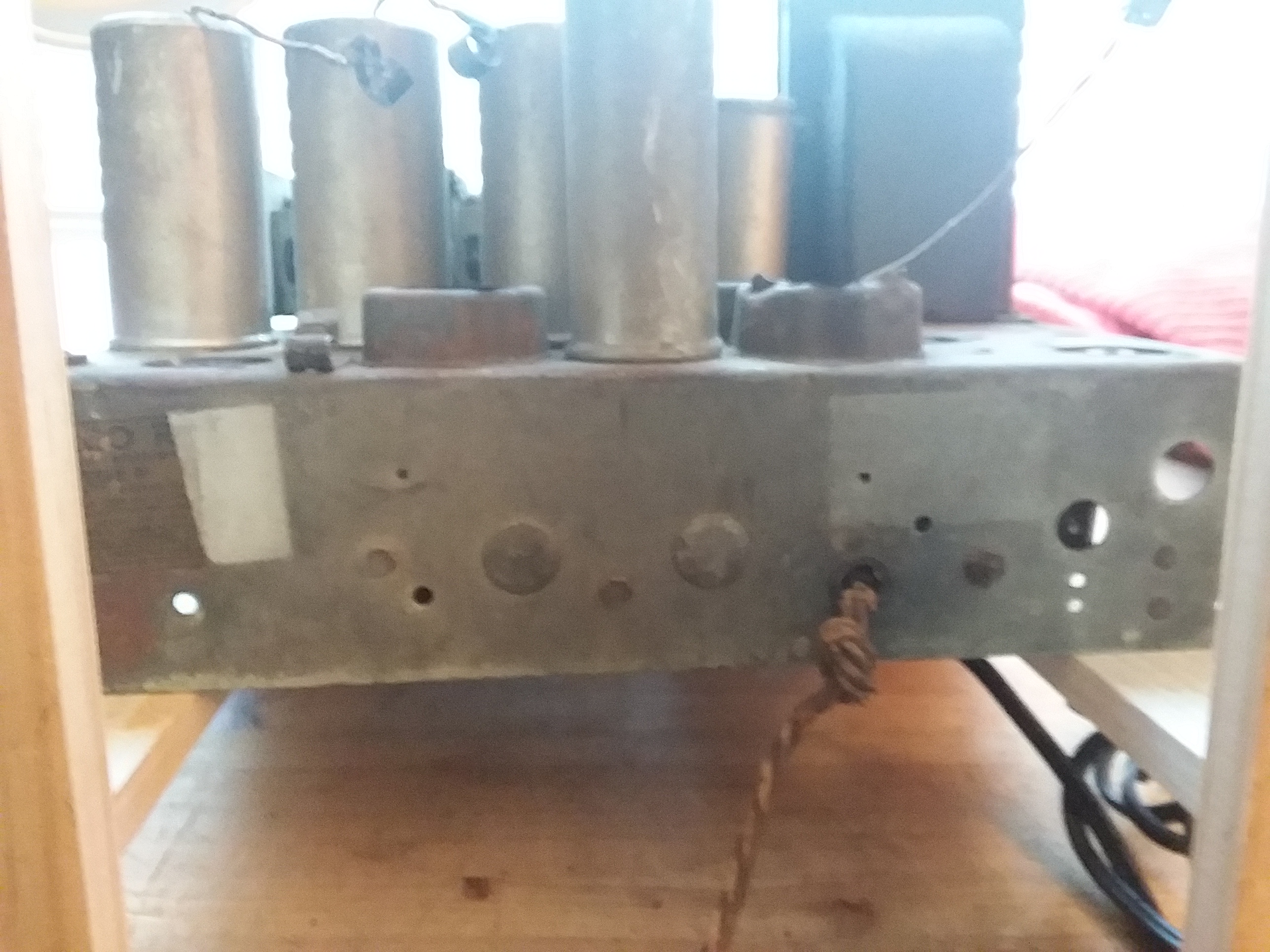

Second question: There appears to have been a second label on the right side of the chassis. It appears to measure 2 X 1 1/4 inches. Any ideas what the label is for? Dealer tag, or factory information?

TIA for your input!


Attached Files Image(s)


Robert Kristelli
Brownsburg, Indiana
#2

Welcome to the Phorum! I'm thinking the label you are referring to is the listing of patents that applied to the set. I may be wrong, but the all-knowing gang here will set me right if I am! Take care and BE HEALTHY! Gary

"Don't pity the dead, pity the living, above all, those living without love."
Professor Albus Dumbledore
Gary - Westland Michigan
#3

There is a lot of history of Philco to be found in the Library, most if not all from Ron Ramirez. See https://philcoradio.com/library/index.ph...o-history/
