49-900 Hippo
mcars
Junior Member
**
Posts: 3
Threads: 1
Joined: Aug 2013
City: Dallastown PA
#1

08-25-2013, 08:57 AM

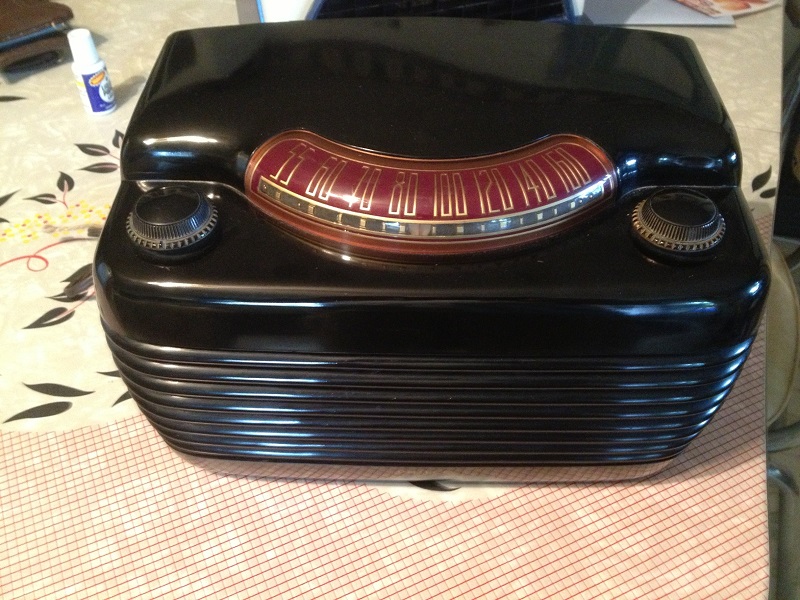

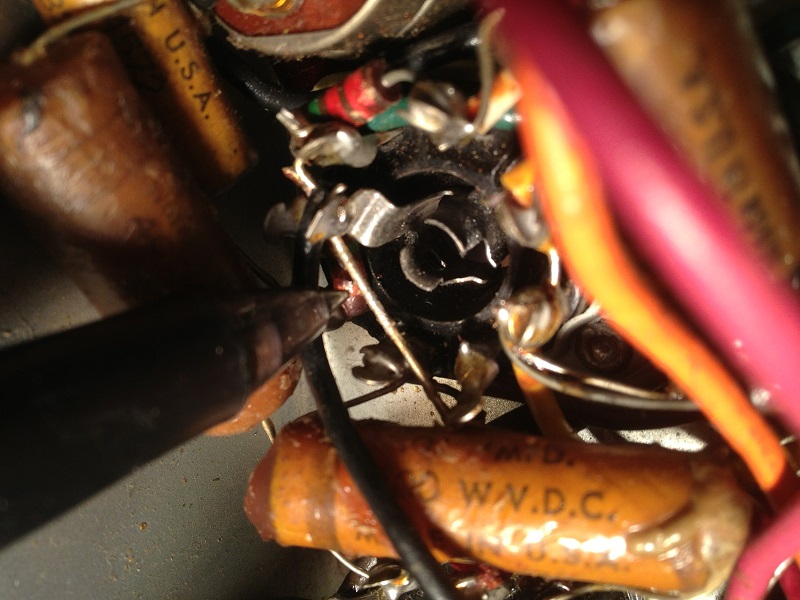

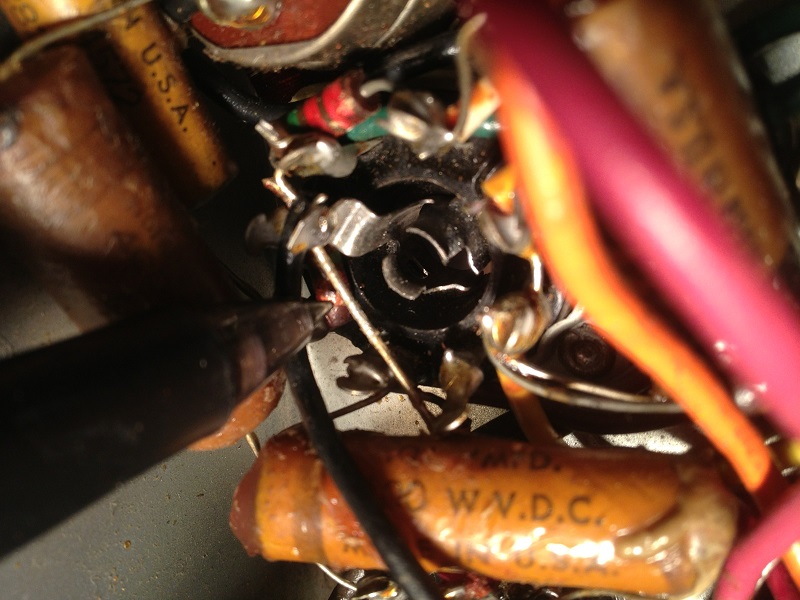

Found this Hippo on Friday. Cabinet is excellent shape, no chips, scruffs, cracks. Excellent looking. But tag stated " Not Working" but for $18.00, hey Icon_smile. Invetigating, found 7C6 doesn't sit tight in it's socket, will replace the socket. Upon investigating futher, I found a shorting wire, ( for lack of better term ) laying unattached between pin 2 & 5 on the 7C6. This is a stiff wire about diameter of a resistor lead, just lying there. I can't find anything on the schematic. I can't noticed any place where it looks like it broke off. I'm attaching a picture. Pic has tip on pen pointing to this wire. Should I just pull the wire out ? When I replace the socket, I don't want to rewire the 7C6 and find out latter this shorting wire is needed. Any ideas.
Thanks everyone.

http://www.nostalgiaair.org/Resources/669/M0013669.htm

Mike


Attached Files Image(s)

Find
vinzer
Member
***
Posts: 214
Threads: 16
Joined: May 2010
City: Kokomo, IN
#2

08-25-2013, 04:36 PM
it is needed its the b- for the tube heaters and Detector diode
Find
mcars
Junior Member
**
Posts: 3
Threads: 1
Joined: Aug 2013
City: Dallastown PA
#3

08-25-2013, 06:22 PM
Vinzer, so it does go between pins 2 & 5? Thanks for the help.
Find
mcars
Junior Member
**
Posts: 3
Threads: 1
Joined: Aug 2013
City: Dallastown PA
#4

08-25-2013, 06:31 PM
Vinzer, would that be between pins 1 & 5, not 2 & 4 ? It was just lying there not connected to anything.
Thanks
