Magnavox 70s console

462ron
Phorum Expert

Posts: 787
Threads: 48
Joined: Feb 2013
City: Shenandoah, State, Province, Country: Pennsylvania

12-23-2018, 02:43 PM

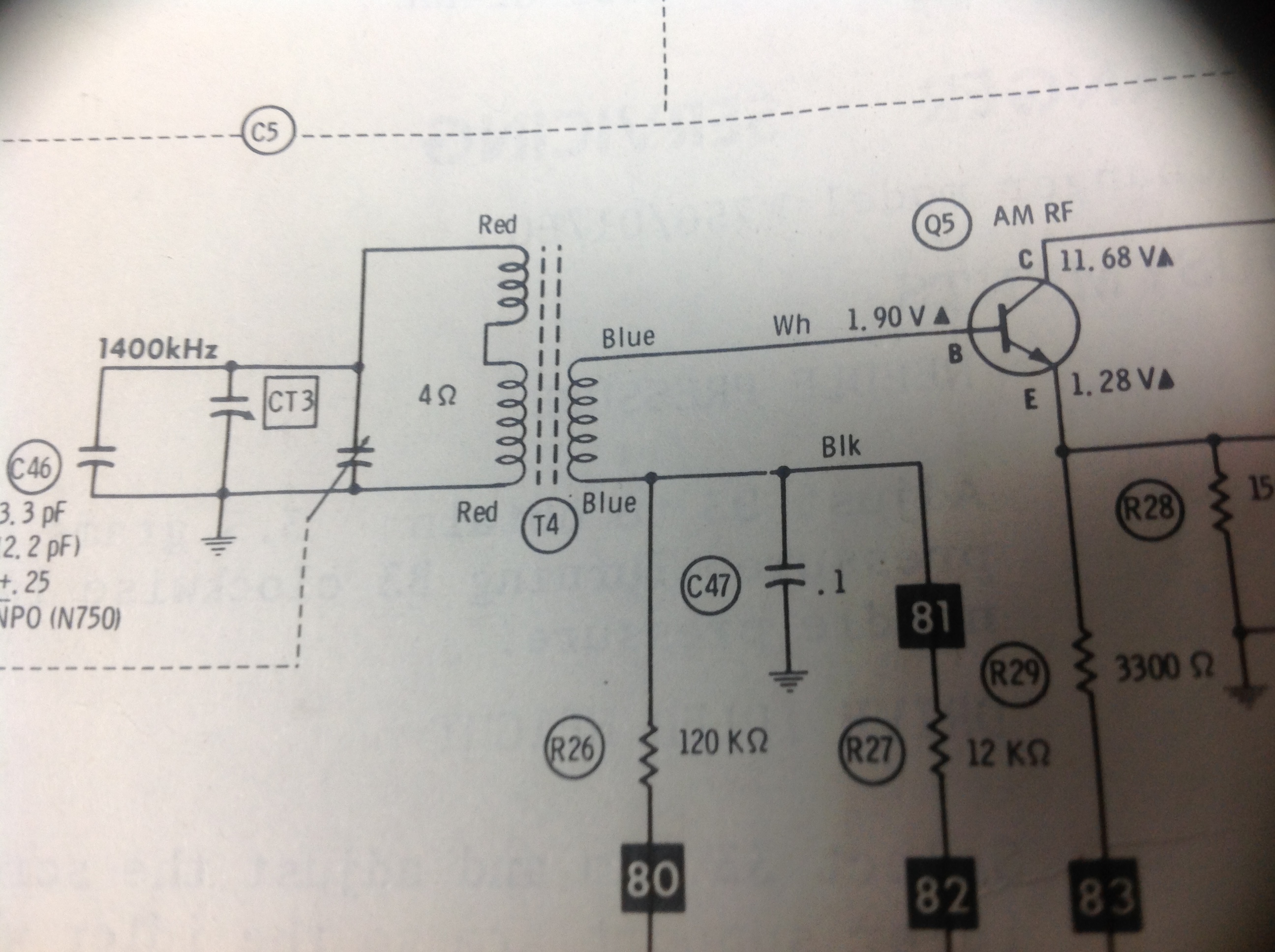

Sans schematic of AM front end. I did also disconnect C46 on the Left of the print and no,difference.

Attached Files Image(s)

Bendix 0626. RCA 8BX5. RCA T64
Philco 41-250. Philco49-500
GE 201. Philco 39-25
Motorola 61X13. Philco 46-42 Crosley 52TQ
Philco 37-116. Philco 70
AK 35 Philco 46-350
Philco 620B. Zenith Transoceanic B-600
Philco 60B. Majestic 50
Philco 52-944. AK 84
