Hello,

I received a radio chassis from a friend.  It came with a Philco Model G speaker and I am sure the chassis is a Philco.  It has 7 tubes but does not seem to match a Model 511 or Model 86 chassis.  I want to restore it to working condition so my kids and grandkids can see how early radios worked.  I plugged it in and all tubes lit up except what I think is the rectifier tube (80).

The identification tag is mostly gone but I can make out Philedelphia Storage Battery Co. on the very bottom of the tag.

Would you help me please identify the chassis.

Thank You,
Rich Marchese
 [Image: https://photos.google.com/photo/AF1QipP8...FSwGZUWVcl][Image: https://photos.google.com/photo/AF1QipNM...vd-G4BDexm][Image: https://photos.google.com/photo/AF1QipPr...Z7QM2k2h88]

[klondike98]

Welcome to the Phorum!


The pictures did not appear correctly, please give it another try.  see: http://www.philcoradio.com/phorum/showthread.php?tid=29

If you still have problems, email the picture to me and I'll post it for you.

[rmarc7828]

[Image: https://photos.google.com/photo/AF1QipP8...FSwGZUWVcl]
[Image: https://photos.google.com/photo/AF1QipNM...vd-G4BDexm]
[Image: https://photos.google.com/photo/AF1QipPr...Z7QM2k2h88]

[rmarc7828]

Hope this works!

[Nathan Slingerland]

Hi Rich,

Unfortunately that didn't work - at least I can't see them.

It looks like your message was originally formatted as follows:

Code:

[img]https://photos.google.com/photo/AF1QipP8VDVpvtv47gUTeqLeXeTFyqT0xjFSwGZUWVcl[/img]
[img]https://photos.google.com/photo/AF1QipNM5pP0anFkRA55ClbymvQRAdYqdvvd-G4BDexm[/img]
[img]https://photos.google.com/photo/AF1QipPrh6z7k3hsD90ve2EGuLsrQuqI3pZ7QM2k2h88[/img]

Even pasting those links into my web browser I am only taken to an error page.

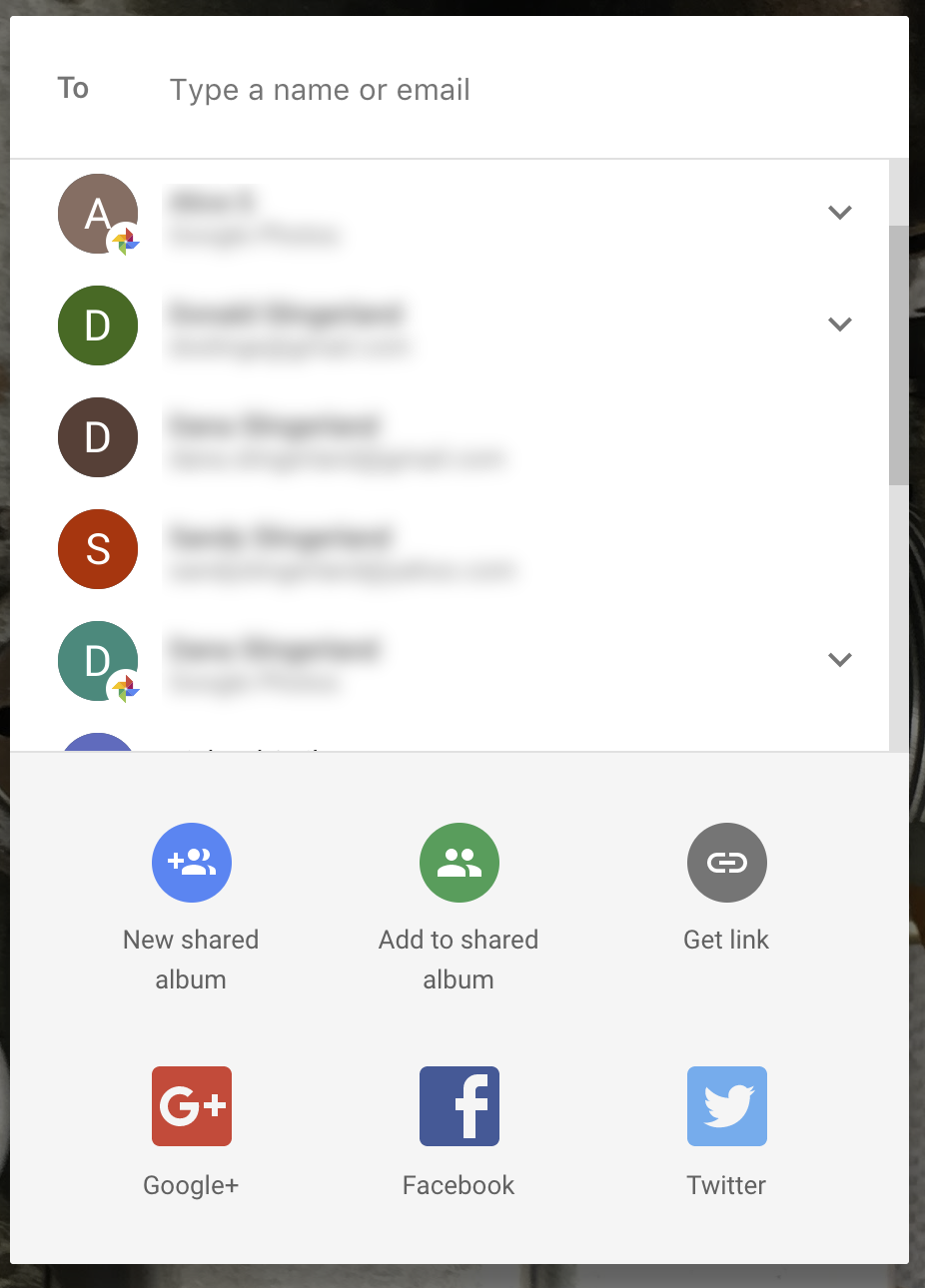

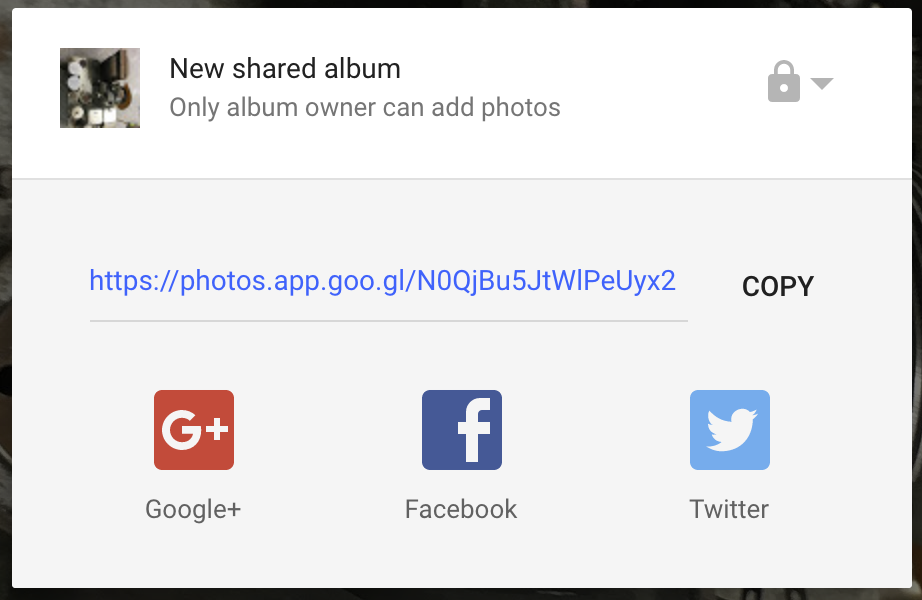

It is possible to get a shared link for a photo from the Google Photos interface:

1. Click share



2. Click 'Get Link'



3. Click 'COPY'



The resulting link can't be embedded as far as I can tell though - it's just a link to your photo in Google Photos that people have to click on. So you wouldn't use them with the

Code:

[img][/img]

markup. Just paste it directly in your post.

[Radioroslyn]

Hi Rich,
Have a look at these to see if they match up. Model 76 and 77.
http://www.nostalgiaair.org/PagesByModel...040192.pdf

[rmarc7828]

Lets try again using another photo hosting site.

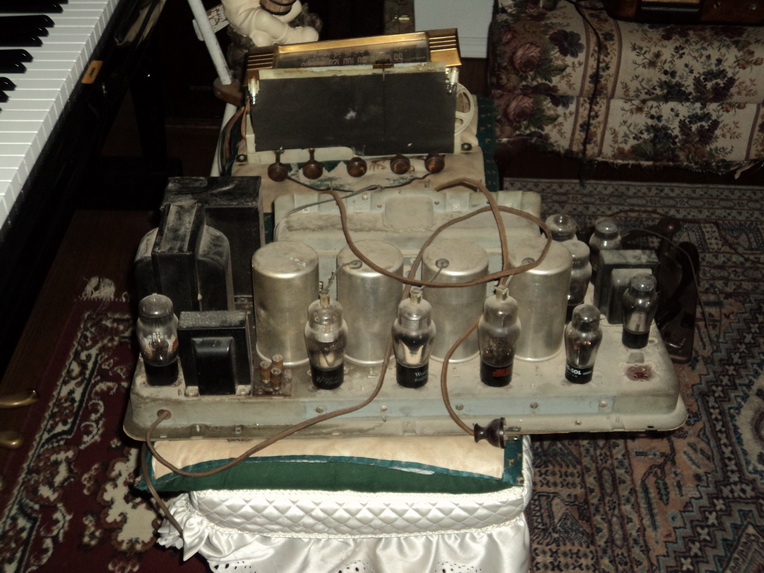

[Image: https://s26.postimg.org/5twmlb6hx/IMG_1416.jpg]

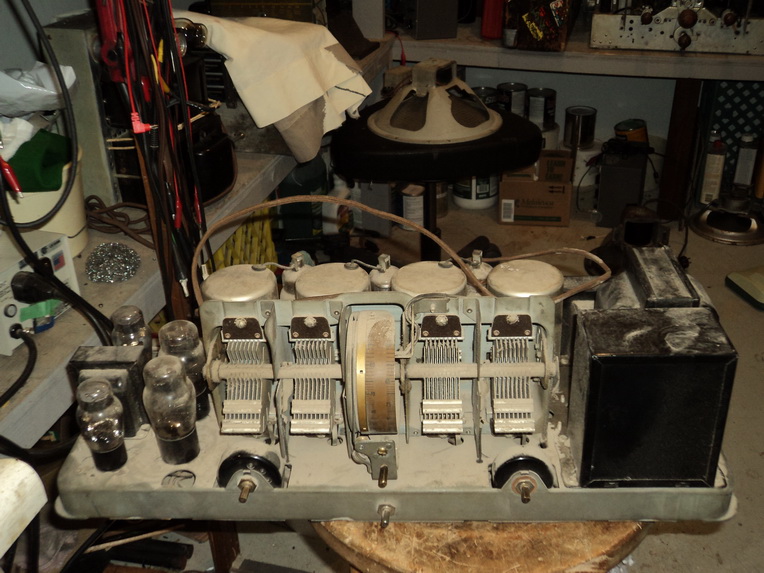

[Image: https://s26.postimg.org/edg0j2eud/IMG_1415.jpg]

[Image: https://s26.postimg.org/6lzakiap1/IMG_1414.jpg]

[Ron Ramirez]

Without seeing photos, the only two early chassis with 7 tubes would be a 76 (73) or 77 (77-A).

73 = 25 cycle version of 76
77-A = 25 cycle version of 77

Edit: Ah, you posted some photos as I was typing. Looks to me like a 76 or 73 - volume control on left, local-distance switch on right. The 77 has the volume control on the right and a four-position tone control on the left (no local-distance switch).

[Nathan Slingerland]

Rich - awesome, the new links / hosting site works much better. I edited your post to fix one of the links.

[rmarc7828]

Thank you!  Looks like the 77.77.A schematic is closest.  A couple of differences which probably don't make much difference.  On the output side where is shows two #45 tubes.  The one closest to the front of the chassis is a 45 and the one to the rear is a CX345.  The #27 tube on the schematic is a #127.  The three #24 tubes are there as well as the #80.

So is this a 76 or 77 chassis?

[rmarc7828]

Thank you all.

Looks like I have a 76.  Now I need to get it working.

[Dan Walker]

I just picked up this Philco chassis , and I don't see any marking on it to determine what model it is.
  It has nine tubes with push pull 45s, and an 80 rectifier.
 I can post more photos if needed. thanks
 Dan in calgary

[morzh]

Either 95 or96.

[Ron Ramirez]

It's a 96.

Tone control on left, translucent dial.

Model 95 has the volume control on the left and a local-distance switch on the right, and a brass dial.

[Dan Walker]

Thanks Ron. It makes a difference when you have the schematic.
 Dan in Calgary
